Installation/removal
Installing the brake caliper
NOTICE
• Use brake shoes that are appropriate for the rim type and rim outer width.
• BR-R9210 / BR-R8110 / BR-RS811-R

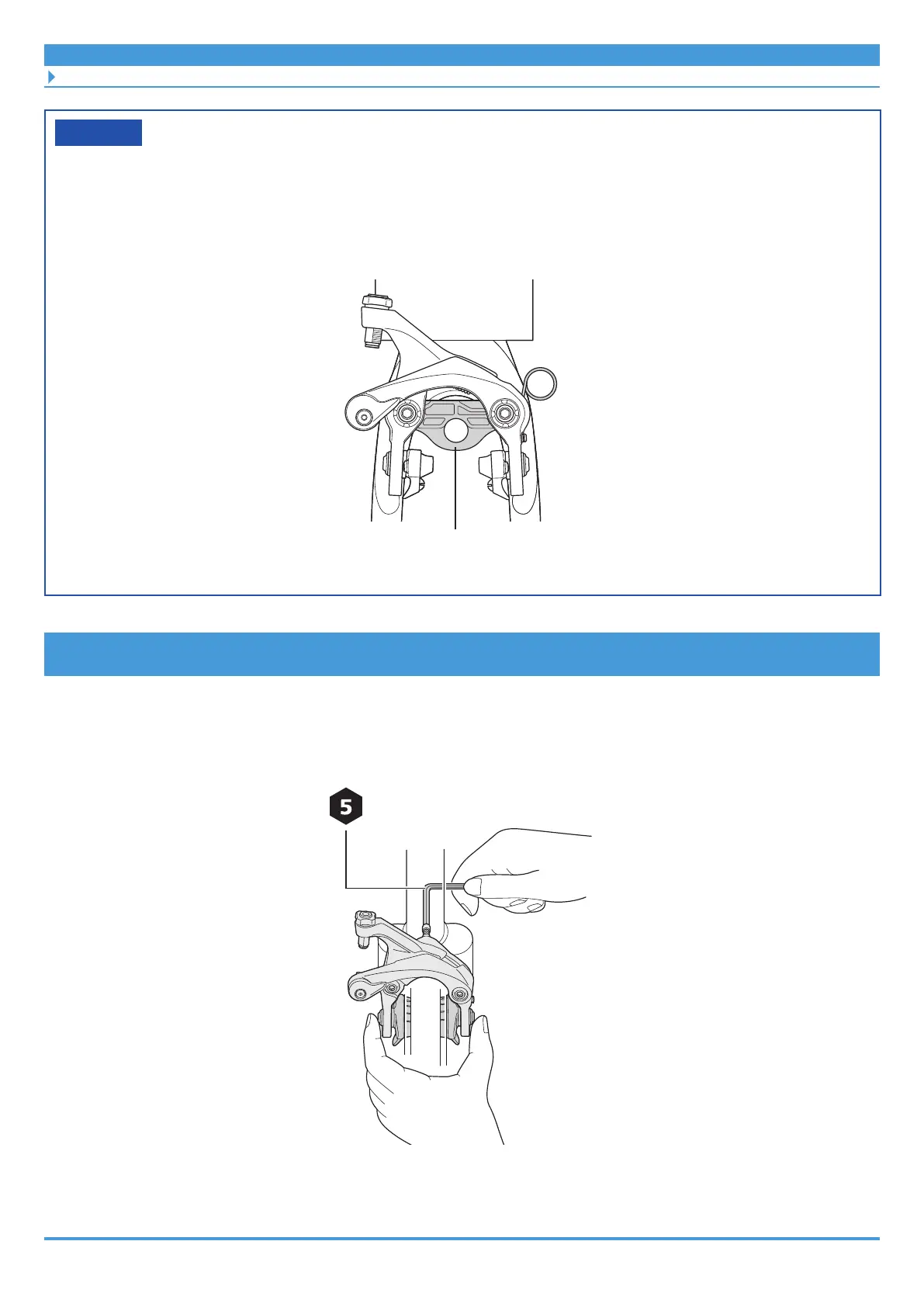

Do not remove the assembly tool until installation is finished. Otherwise the brake
caliper may be scratched.
Assembly tool
Installing the brake caliper (BR-R9200 / BR-R8100)
1. Install the brake caliper to the frame.
Depress the arch of the brake caliper and push the brake shoes firmly against the rim.
8 - 10 N·m
