Adjustment
Arch spring tension adjustment
Adjustment
Arch spring tension adjustment
BR-RS811-R
If the brake lever is not returning smoothly, you may need to adjust the fixing position of the
spring.
Perform this task with the brake caliper removed from the frame.
` When using assembly tool
The Assembly Tool (Y8L398040) can aid in reinstallation of the brake caliper after repositioning
the spring.
1. Remove the brake caliper from the frame.

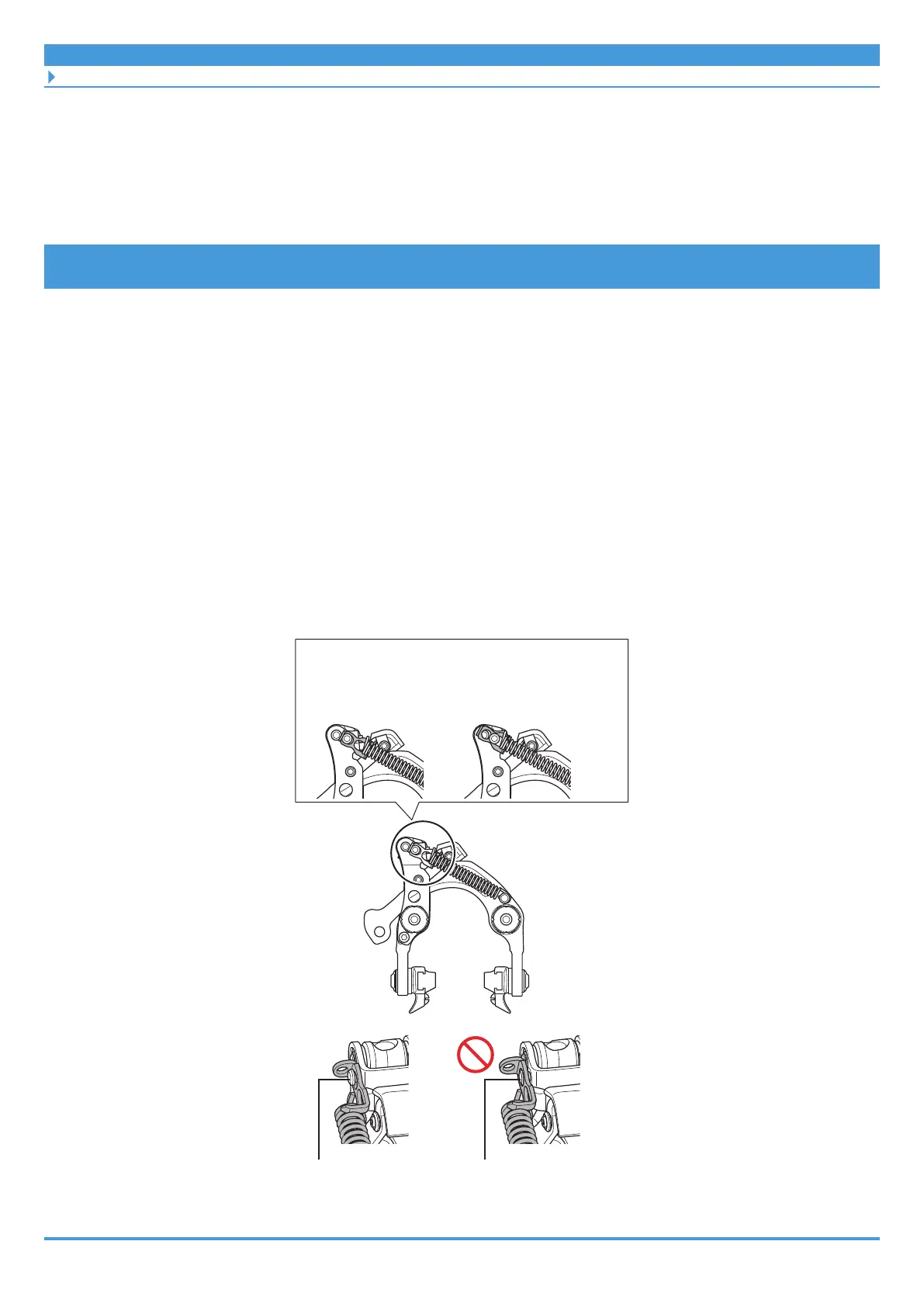

2. Reposition the spring.
Securely attach the spring to the spring attachment pin.
Default setting
(Factory condition) Spring force increase
Spring attachment
Spring attachment
