Installation/removal

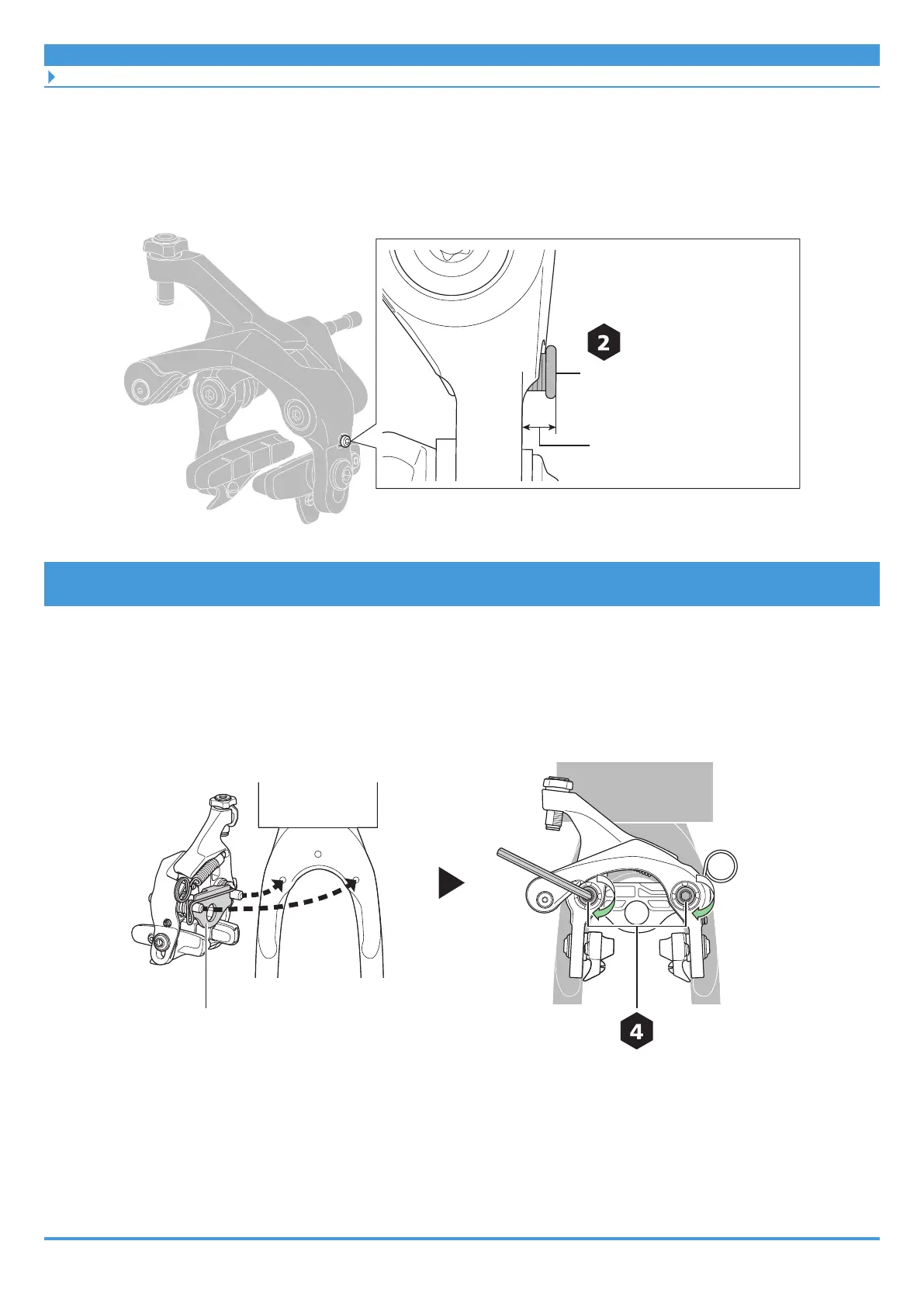

Installing the brake caliper
2. Check that the centering adjustment screw is in the standard position.
With the standard position, the centering adjustment screw protrudes as shown in the
figure. If the centering adjustment screw is not in the standard position, turn it for
adjustment.
Centering adjustment
screw
3 mm
Installing the brake caliper (BR-R9210 / BR-R8110)
` Installing the front brake caliper
1. Temporarily install the brake caliper to the frame base.
Install it together with the assembly tool.
0.5 N·m
Assembly tool
Brake fixing screw
