Installation/removal
Brake shoe setting position

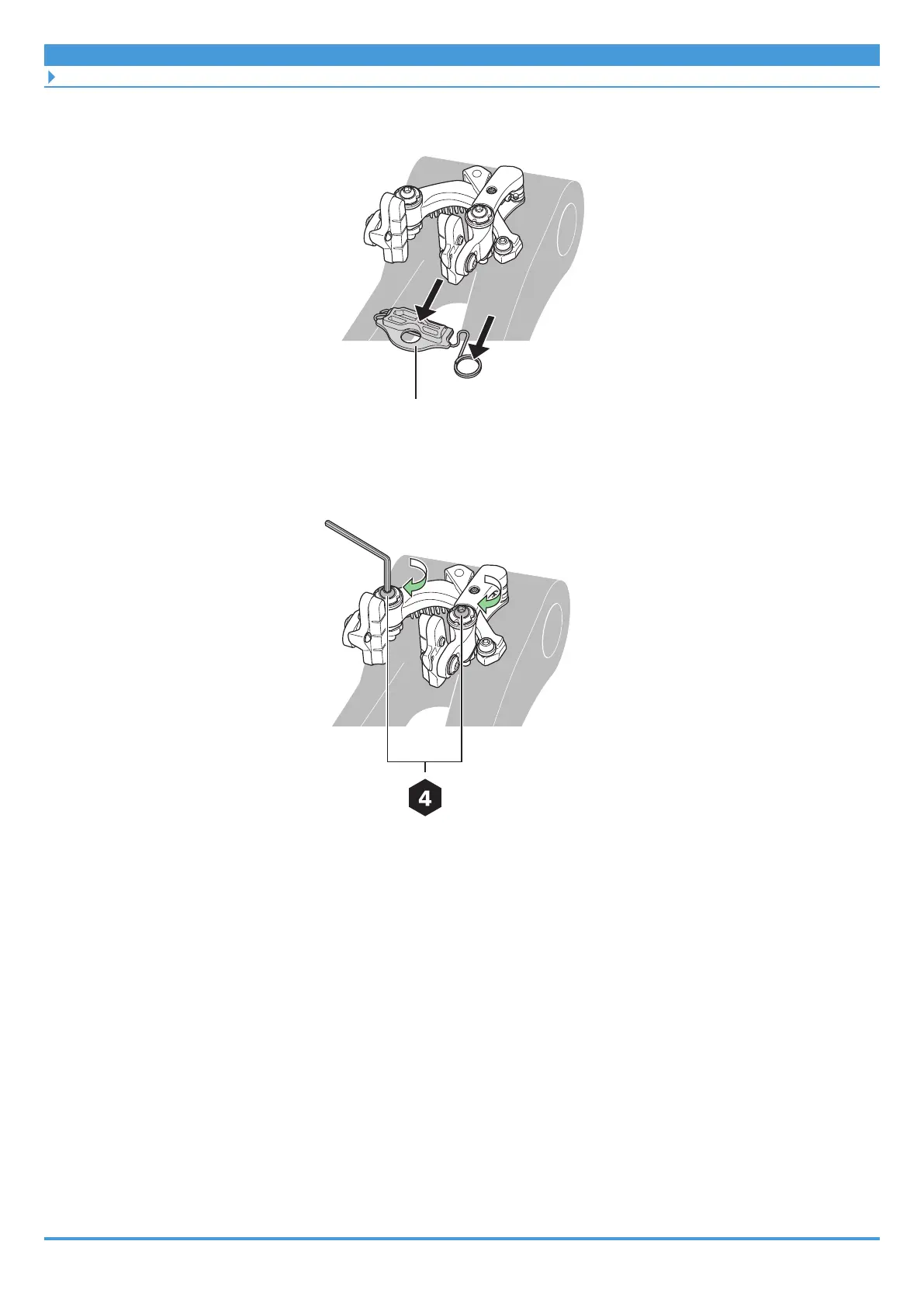

2. Pull out the assembly tool in the direction of the arrow.
Assembly tool
3. Secure the brake caliper to the frame base.
Brake fixing screw
5 - 7 N·m
4. Remove the protection sheet.
Brake shoe setting position
The contact angle (toe-in) of the brake shoe against the rim can be adjusted. Setting toe-in
enables smooth braking operation.
