Adjustment
Arch spring tension adjustment

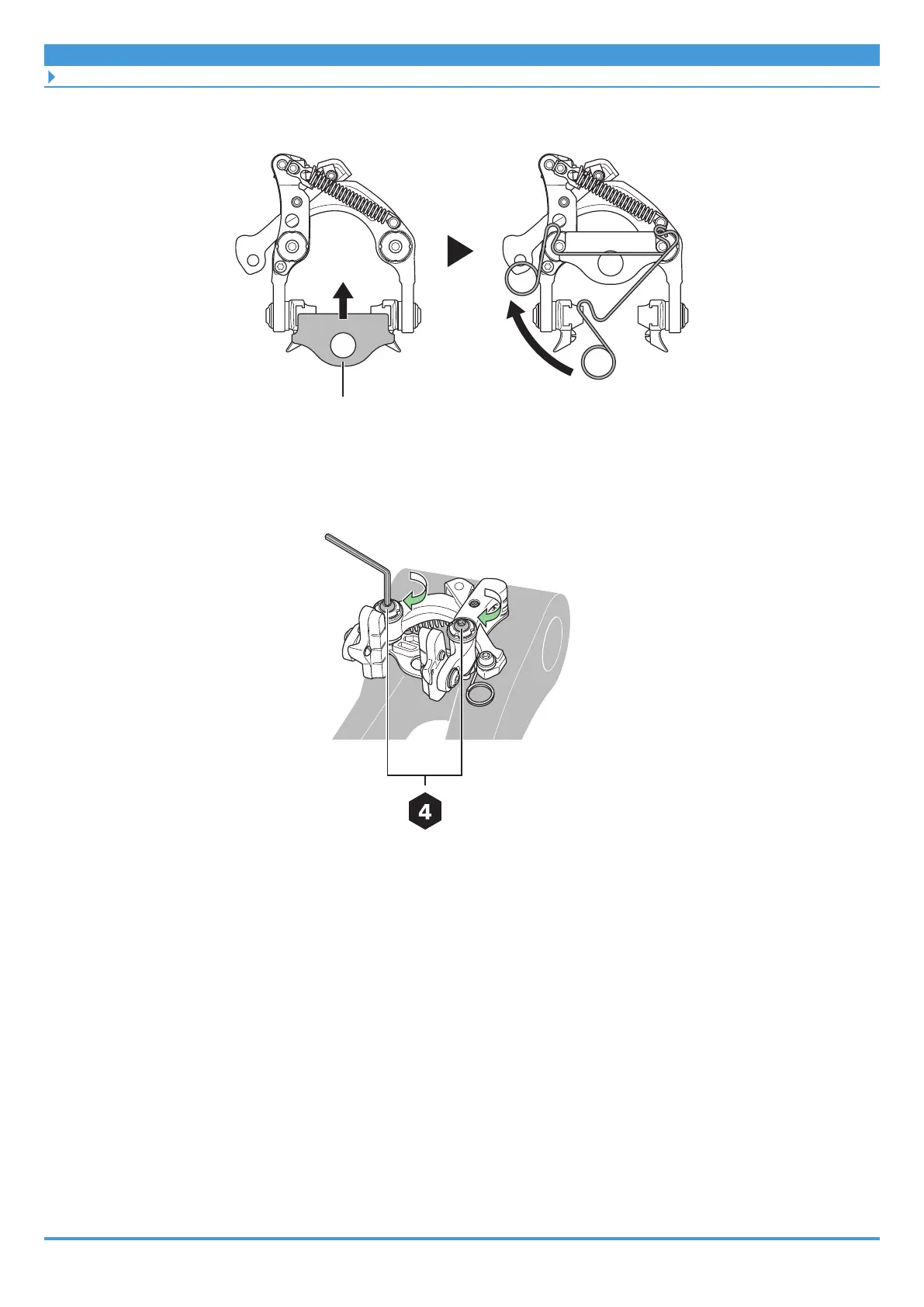

3. Install the assembly tool to the brake caliper.
Assembly tool
4. Temporarily install the brake caliper to the frame base.
Install it together with the assembly tool.
Brake fixing screw
0.5 N·m
