24
Installation/removal
Installing satellite shifters

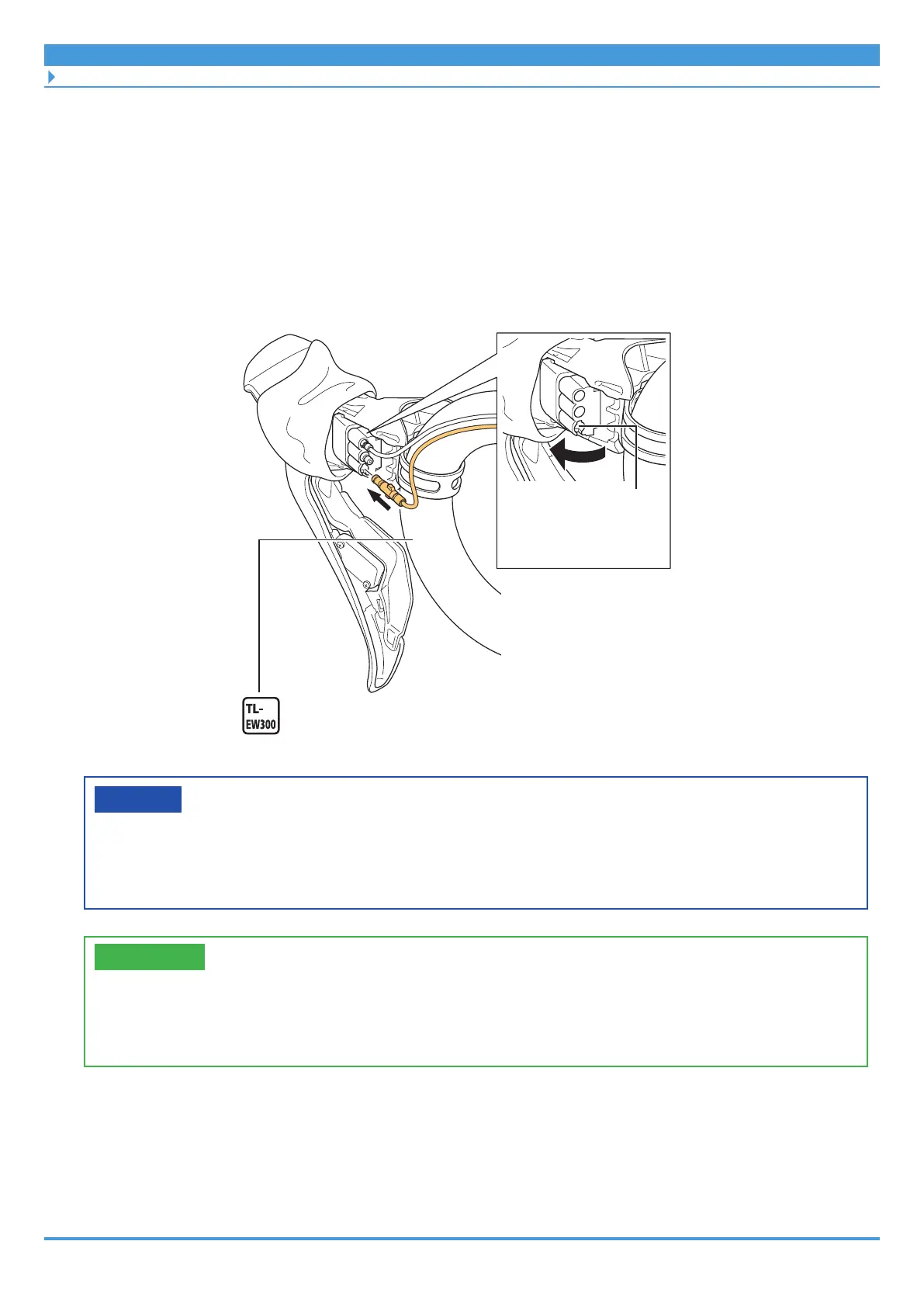

5. Connect the electric wire of the satellite shifter to the satellite shifter
connection port of the dual control levers.
There is an alignment tab on the plug of the electric wire, which should be aligned with
the shape of the satellite shifter connection port.
Be sure to push it in firmly with the TL-EW300 until you feel a click.
For instructions on using the TL-EW300, refer to the ROAD Di2 Dealer's Manual General
Guide.
Electric wire of satellite shifter
Satellite shifter
connection port
NOTICE
• When passing an electric wire through the frame, handlebar, or other parts,
protect the plug with masking tape or a similar material to prevent foreign
matter from getting inside.
TECH TIPS
• If there is length to spare in the electric wire of the satellite shifter, retaining it
on the dual control lever side will make it easier to remove and insert wiring
when performing maintenance.
