Installation/removal

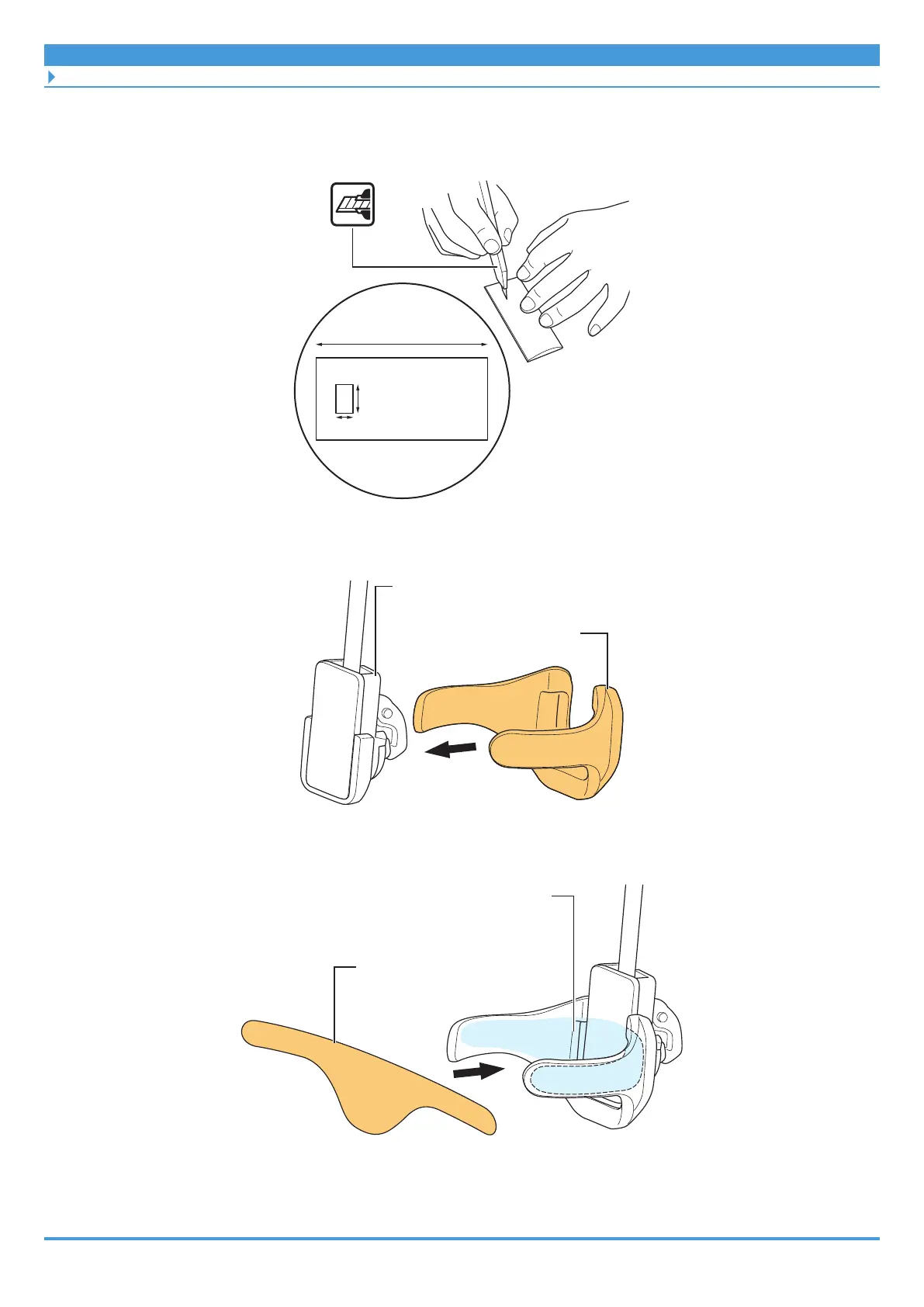

Installing satellite shifters
2. Make a hole in the cut handlebar tape for the button of the satellite
shifter to pass through (13 mm x 9 mm).
9 mm
13 mm
80 mm
3. Set the band on the shift unit.
Shift unit
Band
4. Affix double-sided tape to the satellite shifter.
Double-sided tape
Affixing position
