Installation/removal
Installing the brake caliper
4. Remove the protection sheet.
` Installing the rear brake caliper (BR-R9210-RS / BR-
R8110-RS)

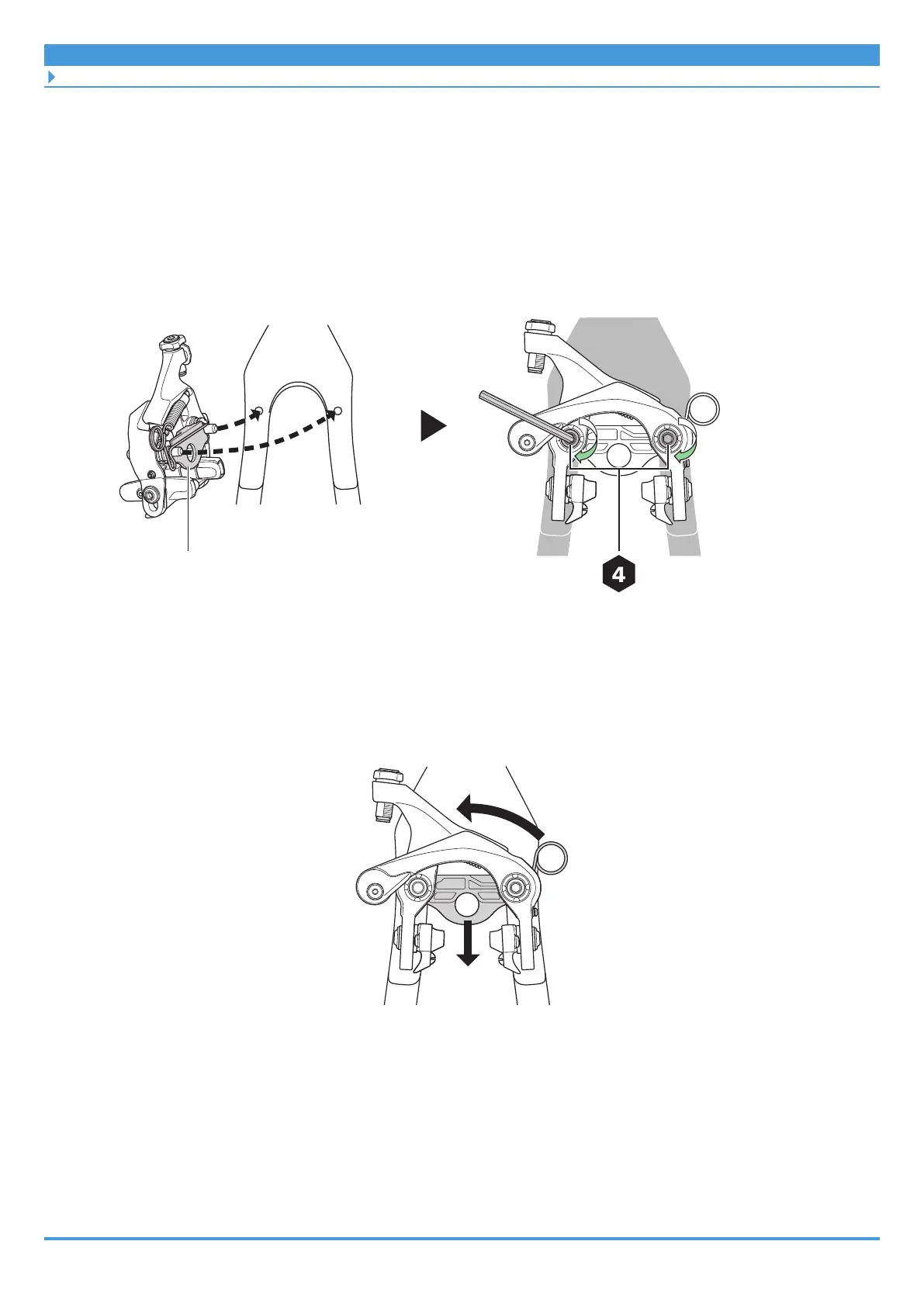

1. Temporarily install the brake caliper to the frame base.
Install it together with the assembly tool.
0.5 N·m
Assembly tool
Brake fixing screw
2. Remove the wire portion of the assembly tool pulling in the direction
of (1), then remove the plastic spacer portion of the assembly tool in
the direction of (2).
(1)
(2)
