Adjustment

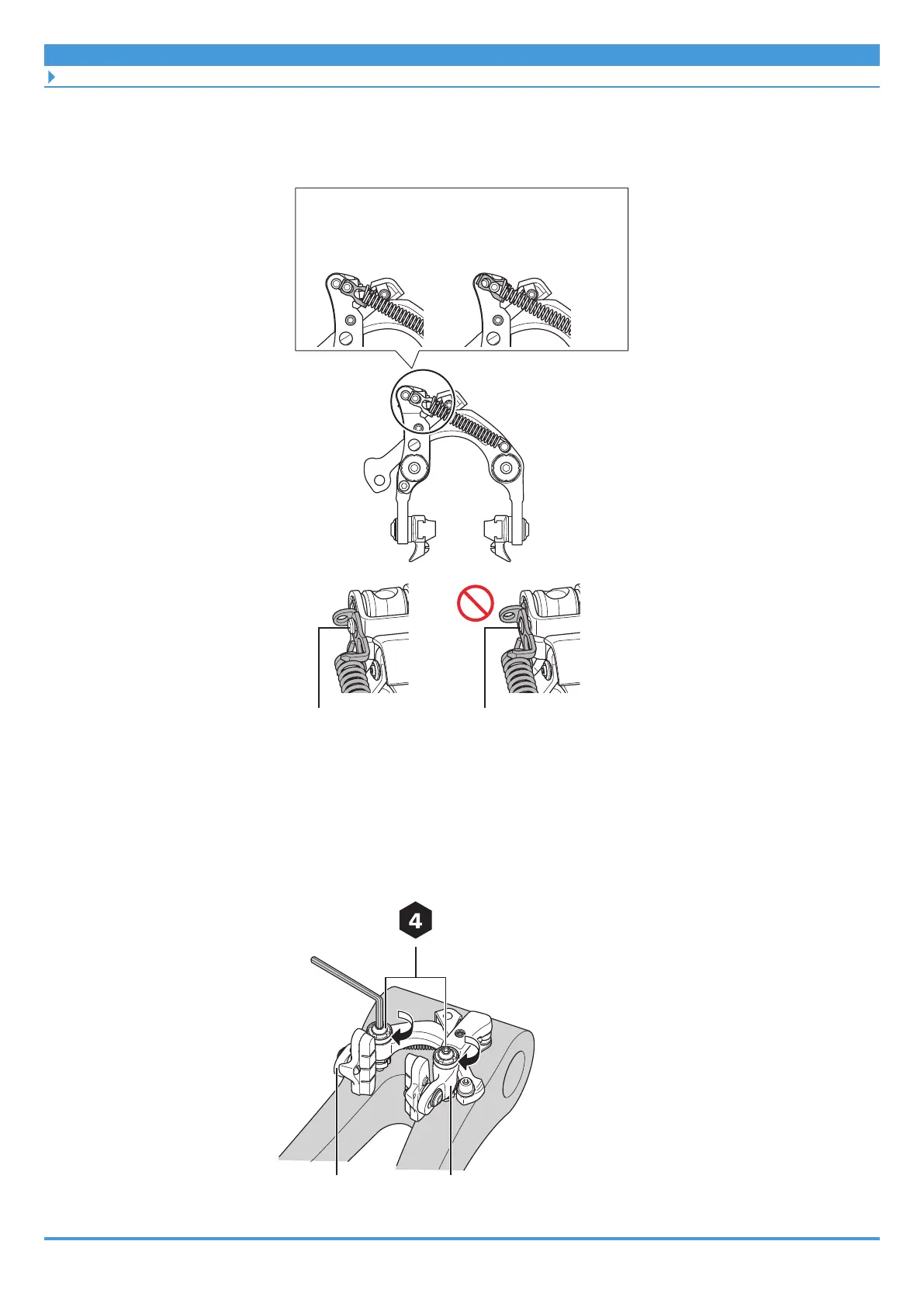

Arch spring tension adjustment
2. Reposition the spring.
Securely attach the spring to the spring attachment pin.
Default setting
(Factory condition) Spring force increase
Spring attachment
pin
Spring attachment
pin
3. Temporarily install the brake caliper to the frame base.
(1) Half-tighten the Y-arm onto the frame.
(2) Tighten the C-arm onto the frame.
Brake fixing screw
C-arm Y-arm
