2.20 STM-1220WR 400V

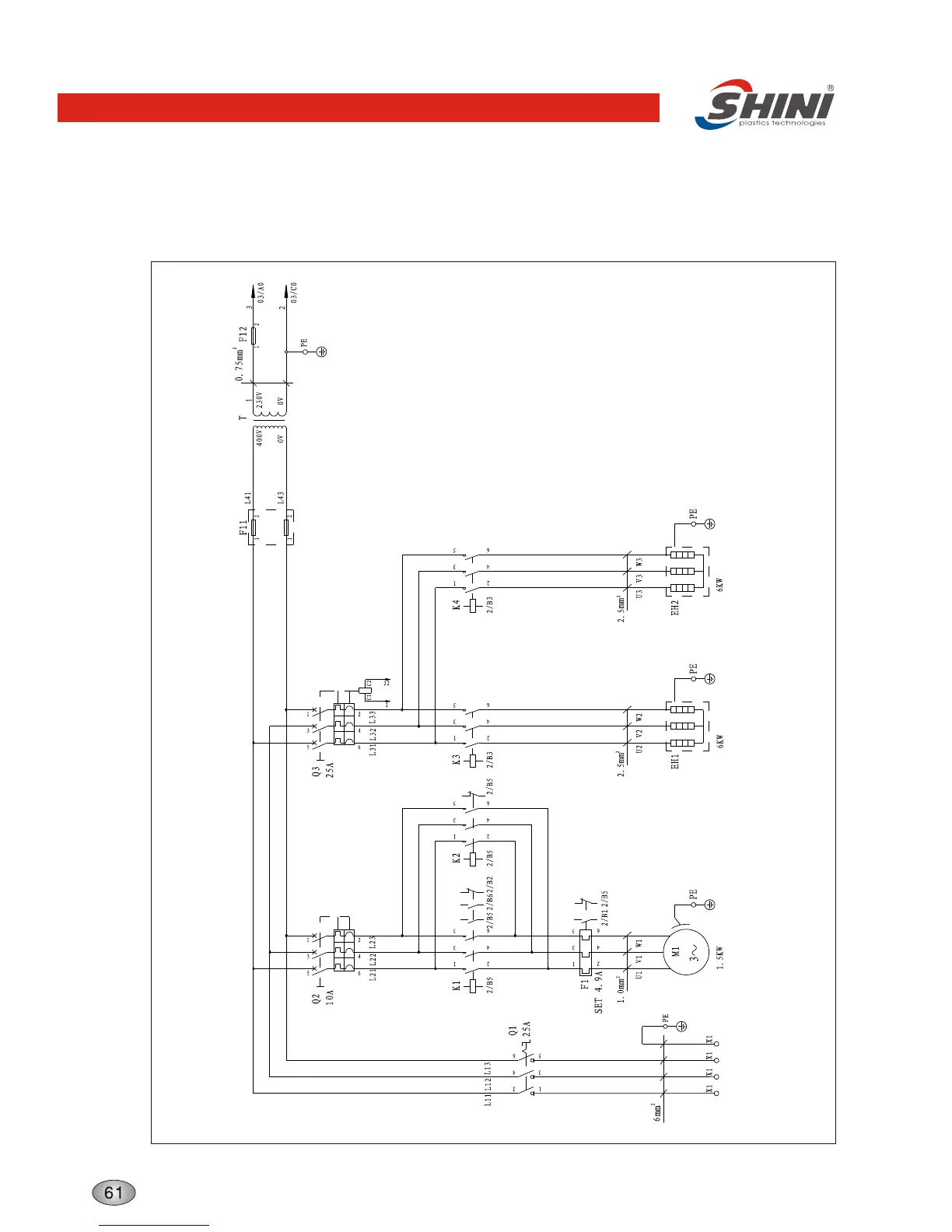

Main Electrical Circuit
IN=9A
Heater1
Heater2
IN=9A
PEL3
L2
L1
400V 50HZ
INPUT 22.7A
IN=4.7A
Pump
Structure characteristics and working principle
