Shini STM-W User Manual
5
of 1
of 1 rating
122 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

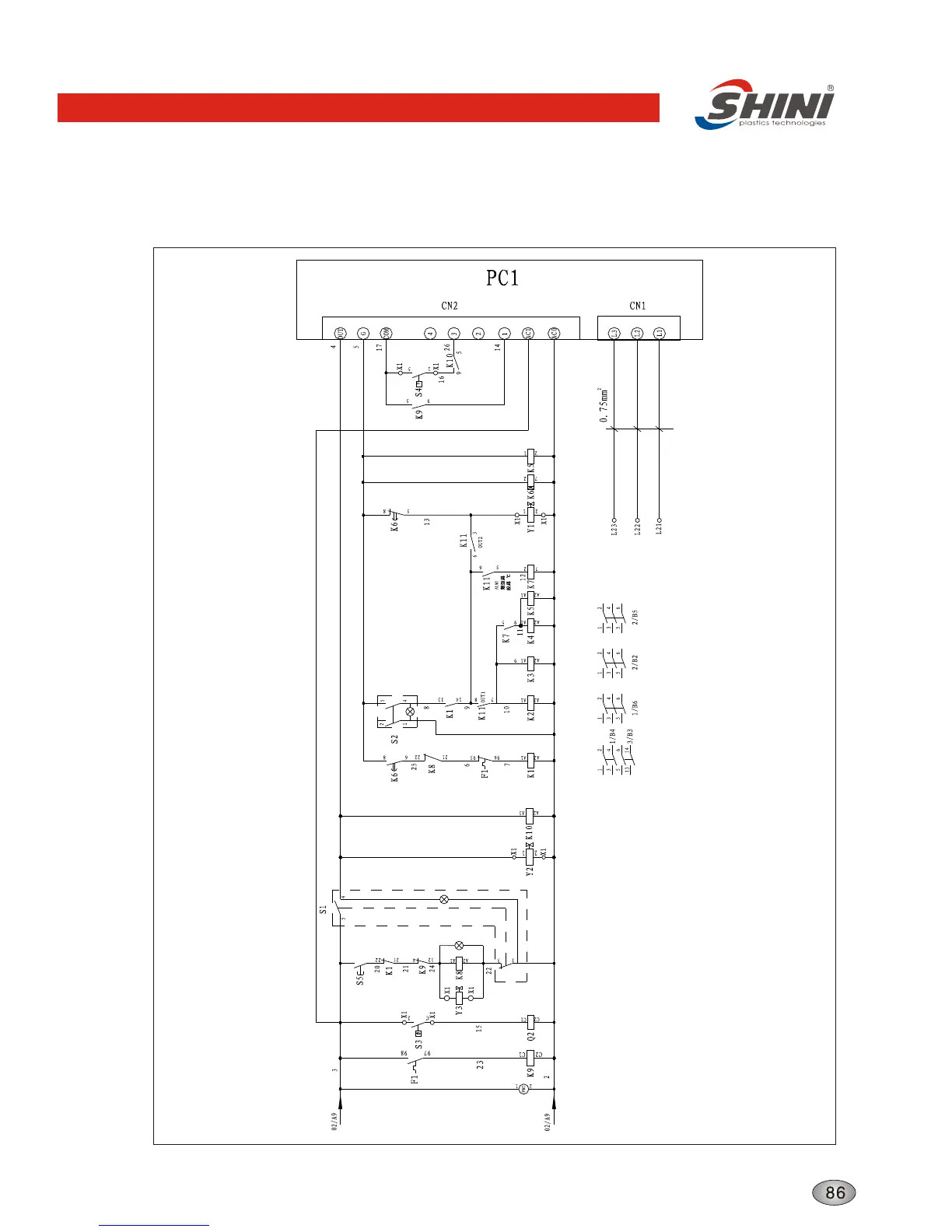

Control Circuit
Excitation
Break
Away
Fan
Pump
Hea
ter1
Heater2
5
3
Relay
Middle
Controller
T
emperature
V
alve
Solenoid
Timer
Heater3
Drain
Reversion
Solenold
Drain
V
alve
Middle
Relay
Middle
Relay
Turn
Into
Solenoid
V
alve
Heater4
TYPE:AA-01
Structure characteristics and working principle
90
92
Table of Contents
Water Heaters
1
Table of Contents
3
General Description
4
Main Features
4
Technical Specifications
6
STM-304W Specifications
6
STM-607W / 607WR Specifications
6
STM-607W-D Specifications
7
STM-910W / 910WR Specifications
8
STM-910W-D Specifications
8
STM-1220W / 1220WR Specifications
9
STM-2440W / 2440WR Specifications
10
STM-3650W / 3650WR Specifications
10
Specification List
11
Safety Regulations
12
Safety Signs and Labels
12
Signs and Labels
13
Operation Regulations
13
Transportation and Storage of the Machine
14
Working Environment
15
Rejected Parts Disposal
15
Fire Hazard
15
Main Functions
16
STM-W (Single Heating Tank) Working Principle
16
Structure Characteristics and Working Principle
16
STM-WR Working Principle
17
STM-304W Series Assembly Drawing
18
STM-304W Parts List
19
STM-607W / 607WR / 607W-Dassembly Drawing
20
STM-607W / 607WR / 607W-D Parts List
21
STM-910W / 910WR / 910W-D Assembly Drawing
23
STM-910W / 910WR / 910W-D Parts List
24
STM-1220W / 1220WR / 2440W / 2440WR / 3650W / 3650WR Assembly Drawing
26
STM-1220W / 1220WR Parts List
27
STM-2440W / 2440WR Parts List
28
STM-3650W / 3650WR Parts List
29
Pump
30
STM-304W 400V Main Electrical Circuit
31
Control Circuit
32
Thermocouple and Terminal Layout
33
Electrical Components Layout
34
Electrical Components List
35
STM-607W / 910W 400V Main Electrical Circuit
36
STM-607W / 910W 400V Control Circuit
37
STM-607W / 910W 400V Thermocouple and Terminal Layout
38
STM-607W / 910W 400V Electrical Components Layout
39
STM-607W Electrical Components List
40
STM-910W Electrical Components List
41
STM-607W-D / 910W-D 400V Main Electrical Circuit
42
STM-607W-D / 910W-D 400V Control Circuit
43
STM-607W-D / 910W-D 400V Thermocouple and Terminal Layout
45
STM-607W-D / 910W-D 400V Electrical Components Layout
46
STM-607W-D Electrical Components List
47
STM-910W-D Electrical Components List
48
STM-607WR 400V Main Electrical Circuit
49
STM-607WR 400V Control Circuit
50
STM-607WR 400V Thermocouple and Terminal Layout
51
STM-607WR 400V Electrical Components Layout
52
STM-607WR Electrical Components List
53
STM-910WR 400V Main Electrical Circuit
54
STM-910WR 400V Control Circuit
55
STM-910WR 400V Thermocouple and Terminal Layout
56
STM-910WR 400V Electrical Components Layout
57
STM-910WR Electrical Components List
58
STM-1220W 400V Main Circuit
59
STM-1220W 400V Control Circuit
60
STM-1220W 400V Thermocouple and Terminal Layout
61
STM-1220W 400V Electrical Components Layout
62
STM-1220W Electrical Components List
63
STM-1220WR 400V Main Electrical Circuit
64
STM-1220WR 400V Control Circuit
65
STM-1220WR 400V Thermocouple and Terminal Layout
66
STM-1220WR 400V Electrical Components Layout
67
STM-1220WR Electrical Components List
68
STM-2440 400V Main Electrical Circuit
70
STM-2440 400V Control Circuit
71
STM-2440 400V Thermocouple and Terminal Layout
72
STM-2440 400V Electrical Components Layout
73
STM-2440W Electrical Components List
74
STM-2440WR 400V Main Electrical Circuit
75
STM-2440WR 400V Control Circuit
76
STM-2440WR 400V Thermocouple and Terminal Layout
77
STM-2440WR 400V Electrical Components Layout
78
STM-2440WR Electrical Components List
79
STM-3650W 400V Main Circuit
81
STM-3650W 400V Main Circuit Diagram
83
STM-3650W 400V Control Circuit
85
STM-3650W 400V Thermocouple and Terminal Layout
86
STM-3650W 400V Electrical Components Layout
87
STM-3650W Electrical Components List
88
STM-3650WR 400V Main Electrical Circuit
89
STM-3650WR 400V Control Circuit
91
STM-3650WR 400V Thermocouple and Terminal Layout
92
STM-3650WR 400V Electrical Components Layout
93
STM-3650WR Electrical Components List
94
STM-607~1220W 230V Main Electrical Circuit
95
STM-607~1220W 230V Control Circuit
96
STM-607~1220W 230V Thermocouple and Terminal Layout
97
STM-607~1220W 230V Electrical Components Layout
98
STM-607W Electrical Components
99
STM-910W Electrical Components
100
STM-1220W Electrical Components
101
Main Electrical Components List
102
Overload Relay
102
Installation Space
103
Mould and Water Couplings
103
Installation and Debugging
103
Power Supply
104
Control Panel Operation
105
Application and Operation
105
Machine Startup
107
Stop the Machine
107
Temperature Controller Display
108
Temperature Controller
108
Keys on Control Panel
109
Choose a Parameter
109
Comfirm Your Setting
109
Troubleshooting
111
Open the Covers
112
Maintenance and Repair
112
Y Type Strainer
113
Solenoid Valve
113
Pipe Heater
114
The Useful Life of the Key Parts of the Product
115
Maintenance Schedule
115
Daily Checking
116
Weekly Checking
117
Montly Checking
118
Half-Yearly Checking
119
