Shinko JCS-33A User Manual

10

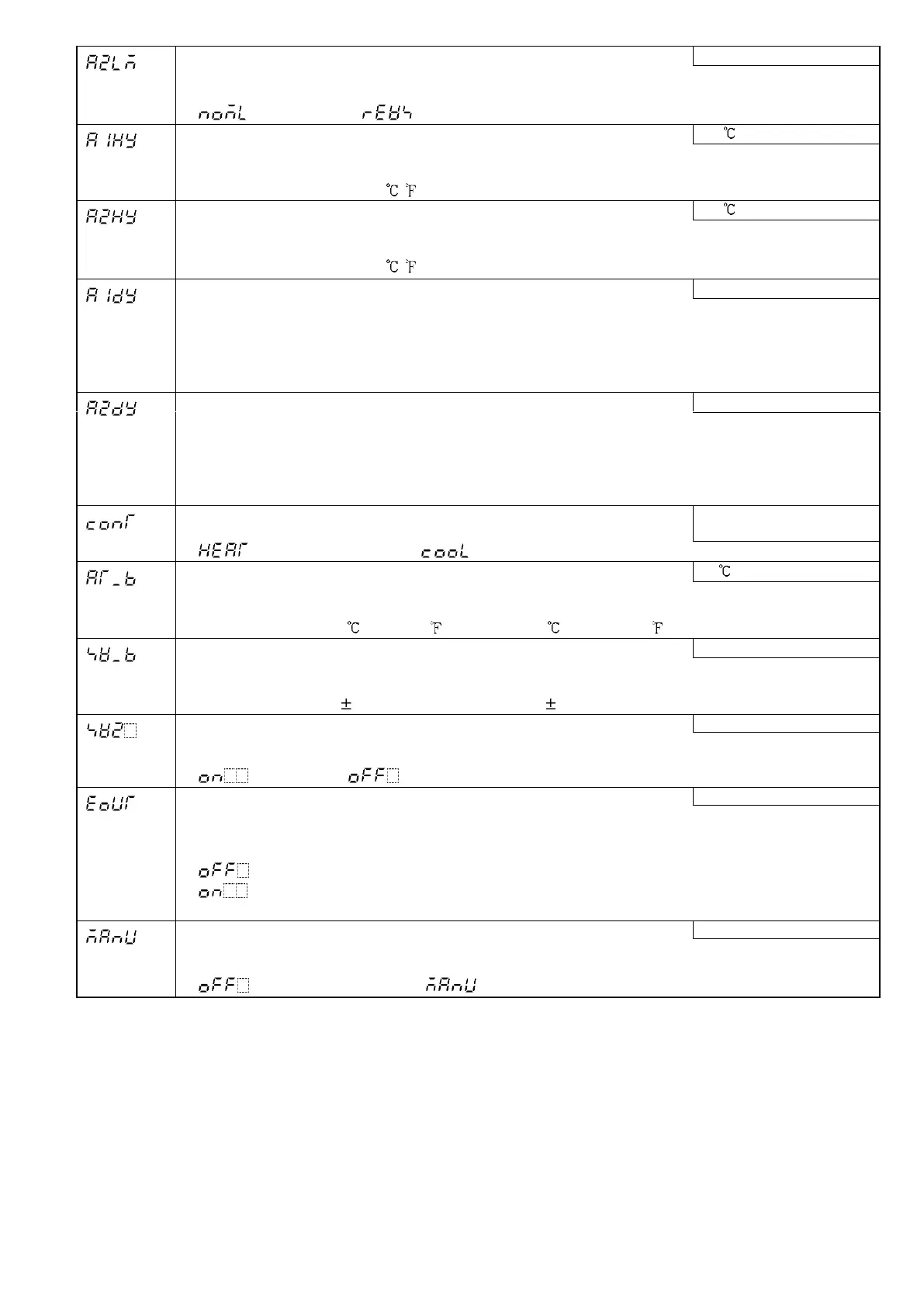

A2 action Energized/Deenergized selection
Energized
• Selects Energized/Deenergized for A2.
• Not available if A2 option is not added or if No alarm action is selected during A2 type selection
• : Energized, : Deenergized
A1 hysteresis setting
1.0
• Sets hysteresis for A1.
• Not available if No alarm action is selected during A1 type selection
• Setting range: 0.1 to 100.0 ( ), or 1 to 1000
A2 hysteresis setting
1.0
• Sets hysteresis for A2.
• Not available if A2 option is not added or if No alarm action is selected during A2 type selection
• Setting range: 0.1 to 100.0 ( ), or 1 to 1000
A1 action delayed timer setting
0 seconds
• Sets action delayed timer for A1.
When setting time has passed after the input enters the alarm output range, the alarm is
activated.
• Not available if No alarm action is selected during A1 type selection
• Setting range: 0 to 9999 seconds
A2 action delayed timer setting
0 seconds
• Sets action delayed timer for A2.
When setting time has passed after the input enters the alarm output range, the alarm is
activated.
• Not available if A2 option is not added or if No alarm action is selected during A2 type selection
• Setting range: 0 to 9999 seconds
Direct/ Reverse control action selection
• Selects Reverse (Heating) or Direct (Cooling) control action.
Reverse (Heating)
control action
• : Reverse (Heating), : Direct (Cooling)
AT bias setting
20
• Sets bias value during auto-tuning.
• Not available for DC input
• Setting range: 0 to 50 (0 to 100 ), or 0.0 to 50.0 (0.0 to100.0 )
SVTC bias setting
0
• Control desired value adds SVTC bias value to the value received by the SVTC command.
• Available only when C5 option is added
• Converted value of 20% of the rated value or 20% of the scaling range
SV2 indication selection
Indication
• Selects either Indication or No indication of SV2.
• Available only when the SM option is added.
• : Indication, : No indication
Output status selection when input abnormal
Output OFF
• Selects OUT1, OUT2 (DT option) status when DC input is overscale or underscale.
Refer to “Input abnormality indication” on p.15.
• Available only for DC current output with DC input
• : Outputs OFF(4mA) or OUT1(OUT2) low limit value
: Outputs a value between OFF(4mA) and ON(20mA) or between OUT1(OUT2)
low limit value and OUT1(OUT2) high limit value, depending on a deviation.
OUT/OFF key function selection
OUT/OFF function
• Selects the OUT/OFF key function if it is used for control output OUT/OFF function
or for Auto/Manual control function.
• : OUT/OFF function , : Auto/Manual control function
Sensor correction function
This corrects the input value from the sensor. When a sensor cannot be set at a location where control is
desired, the sensor measured temperature may deviate from the temperature in the controlled location.
When controlling with plural controllers, sometimes the measured temperatures (PV) do not concur due to
differences in sensor accuracy or dispersion of load capacities.
In such a case, the control can be set at the desired temperature by adjusting the input value of sensors.
However, it is effective within the input rated range regardless of the sensor correction value.
Energized/Deenergized
When [alarm action Energized] is selected, the alarm output (between terminals 3-4, or 3-5) is conducted (ON) while
the alarm output indicator is lit. The alarm output is not conducted (OFF) while the alarm output indicator is not lit.
When [alarm action Deenergized] is selected, the alarm output (between terminals 3-4, or 3-5) is not conducted
(OFF) while the alarm output indicator is lit. The alarm output is conducted (ON) while the alarm output indicator
is not lit.
