3

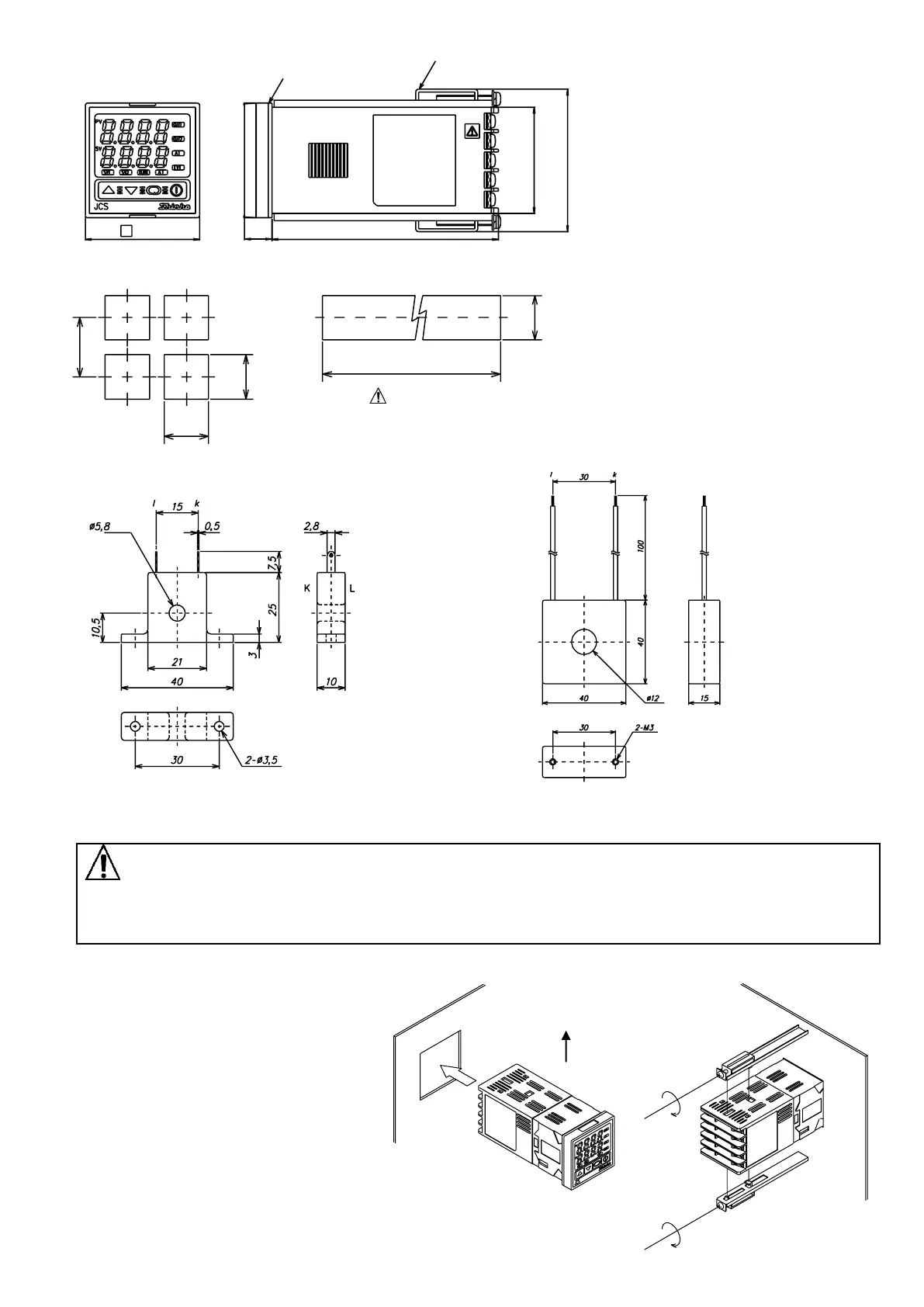

3.2 External dimensions (Scale: mm)
(Fig. 3.2-1)
3.3 Panel cutout (Scale: mm)
Lateral close mounting
n: Number of units mounted
Caution: If lateral close mounting is used for the controller,
IP66 specification (Dust-proof/Drip-proof) may be
compromised, and all warranties will be invalidated.
(Fig. 3.3-1)
3.4 CT (Current transformer) external dimensions (Scale: mm)
CTL-6S (for 5A, 10A, 20A) CTL-12-S36-10L1U (for 50A)
(Fig. 3.4-1)
3.5 Mounting
Caution
As the case is made of resin, do not use excessive force while screwing in the mounting bracket,
or the case or screw type mounting bracket could be damaged.
The torque should be approximately 0.12N•m.
Mount the controller vertically to ensure
it adheres to the Dust-proof/Drip-proof
specification (IP66).
Mountable panel thickness: 1 to 8mm
Insert the controller from the front side
of the panel.
Attach the mounting brackets by the
holes at the top and bottom of the case
and secure the controller in place with
the screws.
(Fig.3.5-1)
75
45
+0.5
0
45
+0.5
0
45
+0.5
0
n x 48-3
+0.5
0
48
11.5
95
44.5
59.7
Gasket
Screw type mounting bracket
To Next Page
