5. Manual Mode
01) Press the UP/DOWN buttons until the display shows MANUAL.
02) Press the ENTER button to activate the Manual mode.

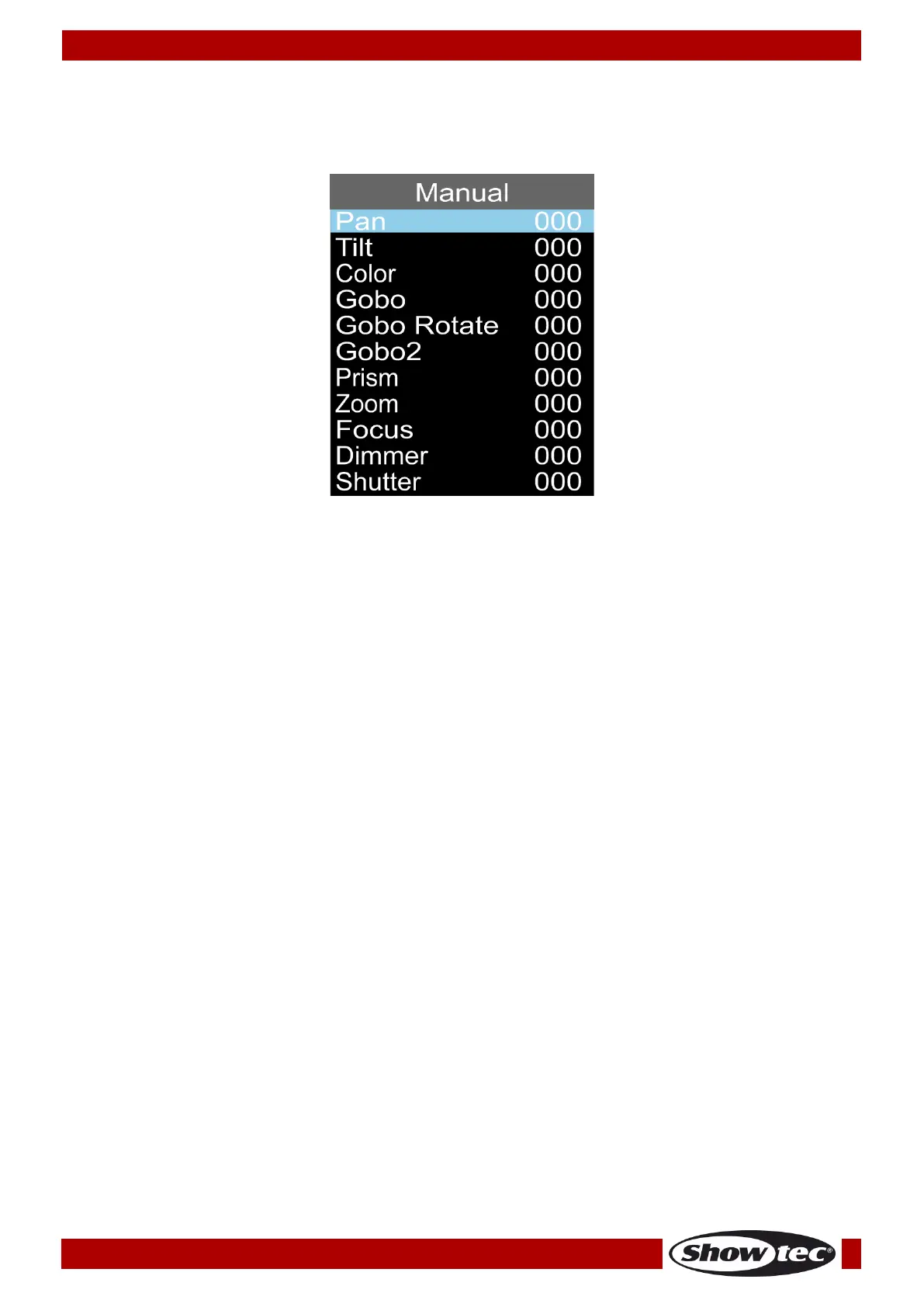

03) The display will show:
04) Press the UP/DOWN buttons to choose one of the following options:
● Pan (Pan position: 0-540°)
● Tilt (Tilt position: 0-270°
● Color (0-255)
● Gobo (0-255)
● Gobo Rotate (0-255, clockwise, counterclockwise, gobo bounce)
● Gobo2 (0-255)
● Prism (0-255)
● Zoom (from small to big)
● Focus (0-255)
● Dimmer (0-255, from dark to brightest)
● Shutter (0-255)
05) Press the ENTER button to edit the desired option.
The adjustment range for each option is between 0-255 except the options Pan and Tilt.
06) Press the UP/DOWN buttons to set the value.
07) Press the ENTER button to save changes.
08) The options correspond with the functions described in the DMX charts, pages 18-23.
