Shure Incorporated
18/100

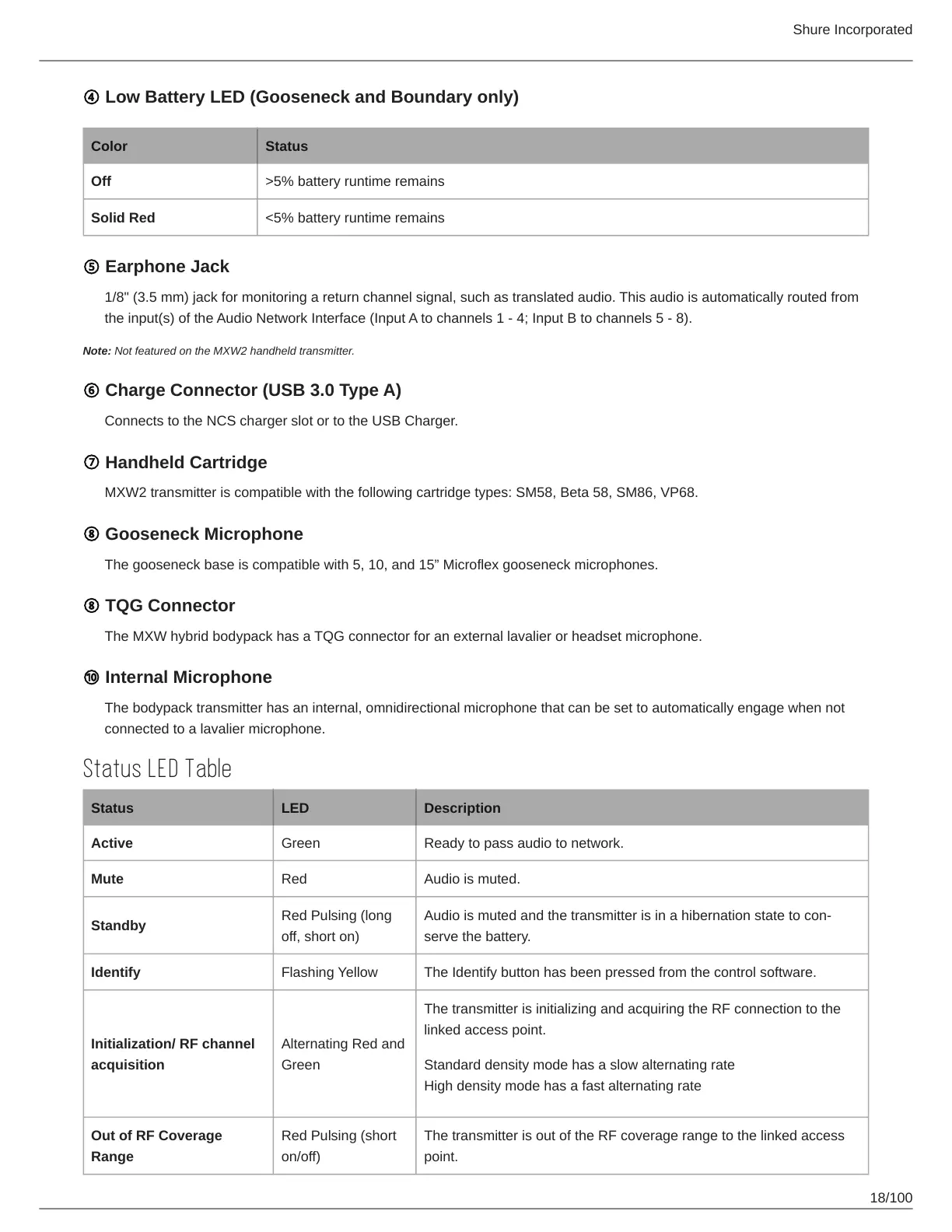

④ Low Battery LED (Gooseneck and Boundary only)
Color Status
Off >5% battery runtime remains
Solid Red <5% battery runtime remains
⑤ Earphone Jack
1/8" (3.5 mm) jack for monitoring a return channel signal, such as translated audio. This audio is automatically routed from
the input(s) of the Audio Network Interface (Input A to channels 1 - 4; Input B to channels 5 - 8).
Note: Not featured on the MXW2 handheld transmitter.
⑥ Charge Connector (USB 3.0 Type A)
Connects to the NCS charger slot or to the USB Charger.
⑦ Handheld Cartridge
MXW2 transmitter is compatible with the following cartridge types: SM58, Beta 58, SM86, VP68.
⑧ Gooseneck Microphone
Thegooseneckbaseiscompatiblewith5,10,and15”Microflexgooseneckmicrophones.
⑧ TQG Connector
The MXW hybrid bodypack has a TQG connector for an external lavalier or headset microphone.
⑩ Internal Microphone
The bodypack transmitter has an internal, omnidirectional microphone that can be set to automatically engage when not
connected to a lavalier microphone.
Status LED Table
Status LED Description
Active Green Ready to pass audio to network.
Mute Red Audio is muted.
Standby
Red Pulsing (long
off, short on)
Audioismutedandthetransmitterisinahibernationstatetocon
serve the battery.
Identify Flashing Yellow The Identify button has been pressed from the control software.
Initialization/ RF channel
acquisition
Alternating Red and
Green
The transmitter is initializing and acquiring the RF connection to the
linked access point.
Standard density mode has a slow alternating rate
High density mode has a fast alternating rate
Out of RF Coverage
Range
Red Pulsing (short
on/off)
The transmitter is out of the RF coverage range to the linked access
point.
