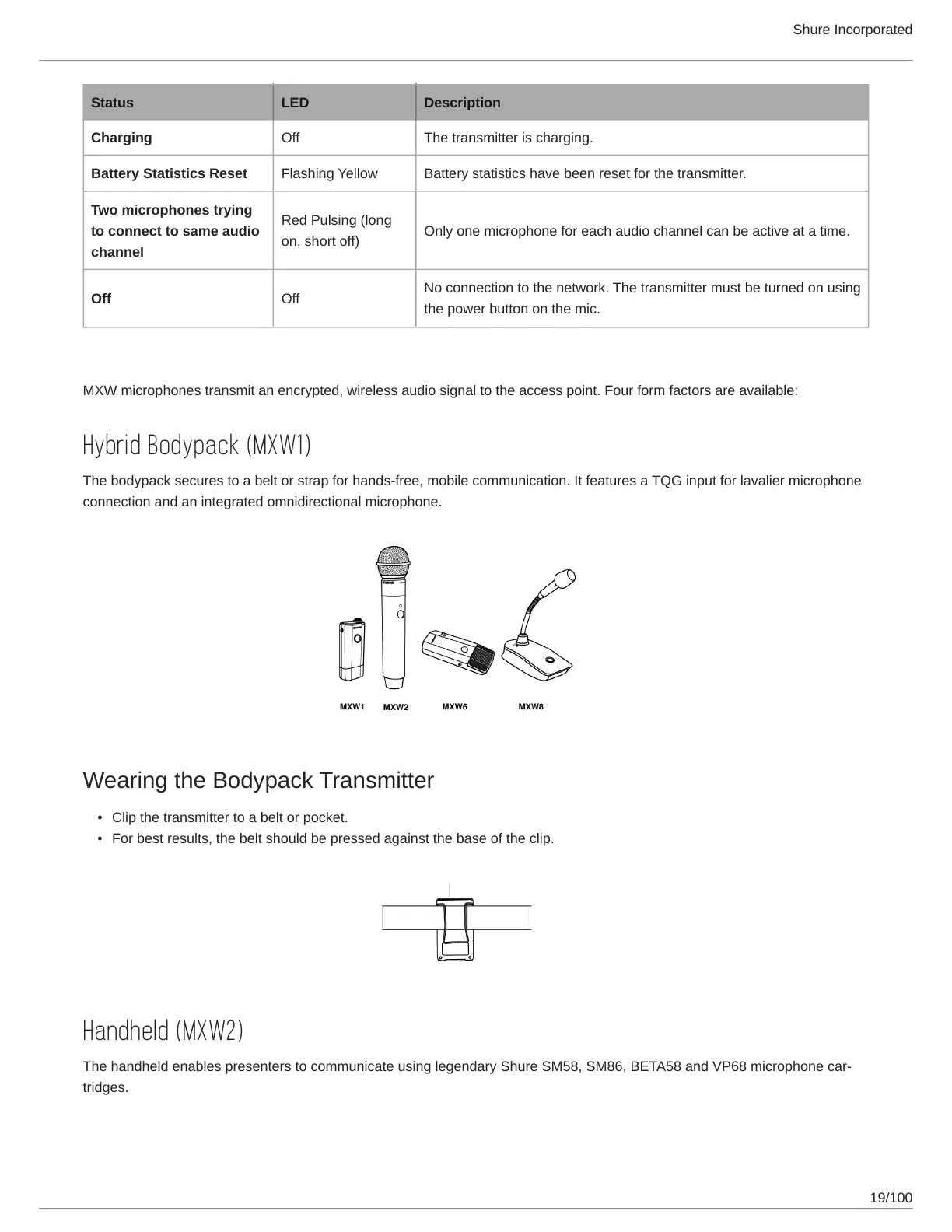

Shure Incorporated
19/100
•
•
Status LED Description
Charging Off The transmitter is charging.
Battery Statistics Reset Flashing Yellow Battery statistics have been reset for the transmitter.
Two microphones trying
to connect to same audio
channel
Red Pulsing (long
on, short off)
Only one microphone for each audio channel can be active at a time.
Off Off
No connection to the network. The transmitter must be turned on using
the power button on the mic.
Microphone Transmitters
MXW microphones transmit an encrypted, wireless audio signal to the access point. Four form factors are available:
Hybrid Bodypack (MXW1)
The bodypack secures to a belt or strap for hands-free, mobile communication. It features a TQG input for lavalier microphone
connection and an integrated omnidirectional microphone.
Wearing the Bodypack Transmitter
Clip the transmitter to a belt or pocket.
For best results, the belt should be pressed against the base of the clip.
Handheld (MXW2)
ThehandheldenablespresenterstocommunicateusinglegendaryShureSM58,SM86,BETA58andVP68microphonecar
tridges.
