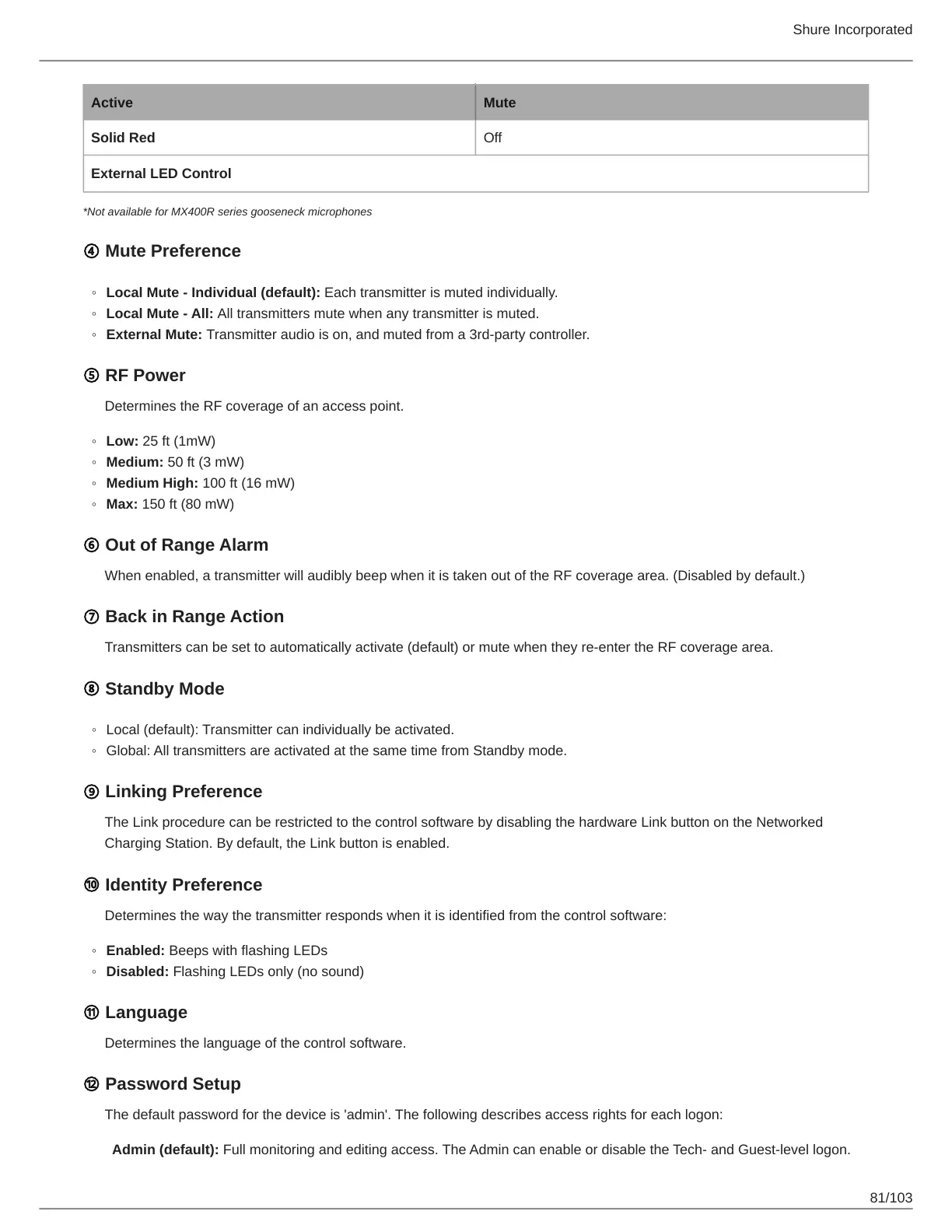

Shure Incorporated
81/103
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
◦
Active Mute
Solid Red Off
External LED Control
*Not available for MX400R series gooseneck microphones
④ Mute Preference
Local Mute - Individual (default): Each transmitter is muted individually.
Local Mute - All: All transmitters mute when any transmitter is muted.
External Mute: Transmitter audio is on, and muted from a 3rd-party controller.
⑤ RF Power
Determines the RF coverage of an access point.
Low: 25 ft (1mW)
Medium: 50 ft (3 mW)
Medium High: 100 ft (16 mW)
Max: 150 ft (80 mW)
⑥ Out of Range Alarm
When enabled, a transmitter will audibly beep when it is taken out of the RF coverage area. (Disabled by default.)
⑦ Back in Range Action
Transmitters can be set to automatically activate (default) or mute when they re-enter the RF coverage area.
⑧ Standby Mode
Local (default): Transmitter can individually be activated.
Global: All transmitters are activated at the same time from Standby mode.
⑨ Linking Preference
The Link procedure can be restricted to the control software by disabling the hardware Link button on the Networked
Charging Station. By default, the Link button is enabled.
⑩ Identity Preference
Determines the way the transmitter responds when it is identified from the control software:
Enabled: Beeps with flashing LEDs
Disabled: Flashing LEDs only (no sound)
⑪ Language
Determines the language of the control software.
⑫ Password Setup
The default password for the device is 'admin'. The following describes access rights for each logon:
Admin (default): Full monitoring and editing access. The Admin can enable or disable the Tech- and Guest-level logon.
