Shure Incorporated
38/103
•
•
•

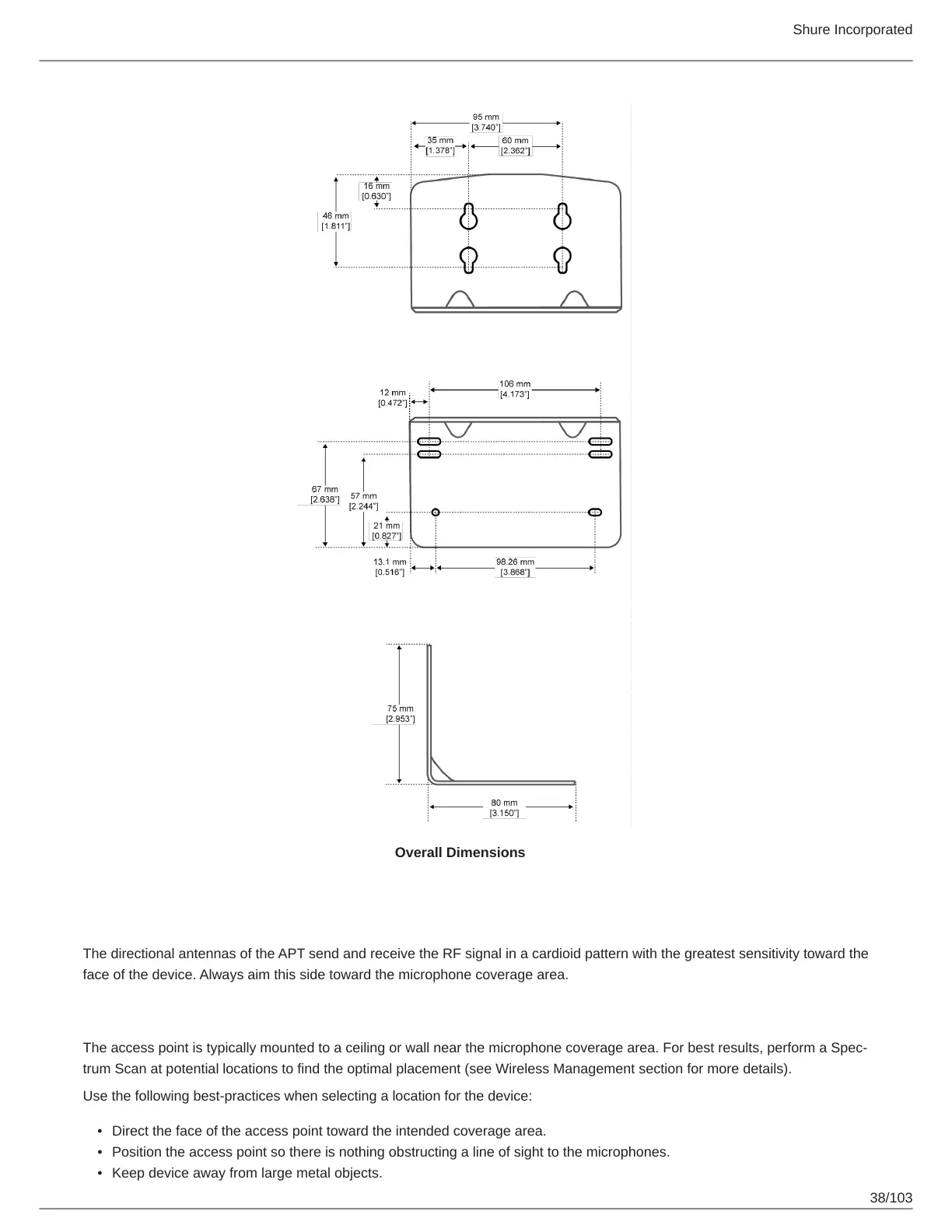

Overall Dimensions
Mount the Access Point Transceiver
The directional antennas of the APT send and receive the RF signal in a cardioid pattern with the greatest sensitivity toward the
face of the device. Always aim this side toward the microphone coverage area.
Select a Location
The access point is typically mounted to a ceiling or wall near the microphone coverage area. For best results, perform a Spec
trum Scan at potential locations to find the optimal placement (see Wireless Management section for more details).
Use the following best-practices when selecting a location for the device:
Direct the face of the access point toward the intended coverage area.
Position the access point so there is nothing obstructing a line of sight to the microphones.
Keep device away from large metal objects.
