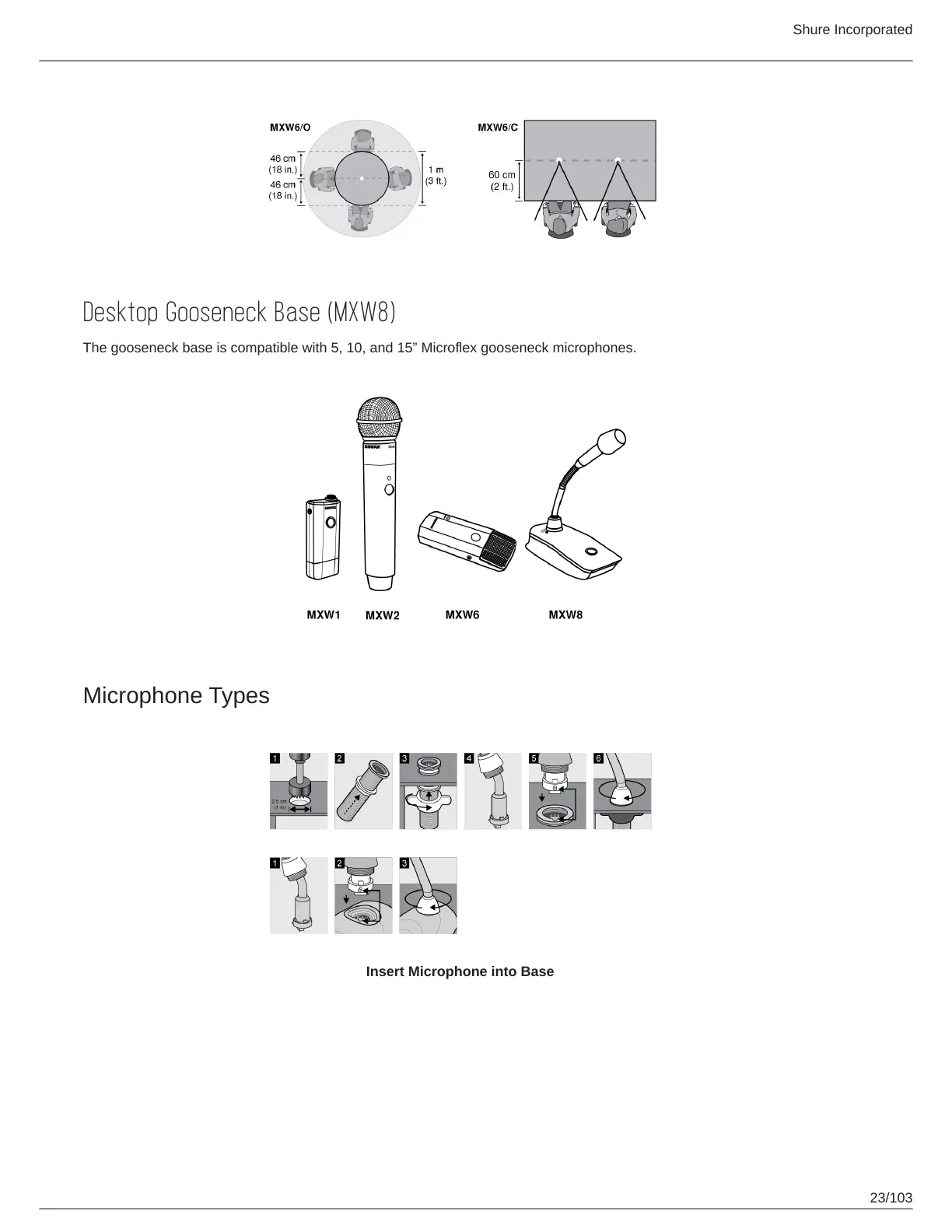

Shure Incorporated
23/103
Desktop Gooseneck Base (MXW8)
The
gooseneck
base
is
compatible
with
5,
10,
and
15”
Microflex
gooseneck
microphones.
Microphone
T
ypes
Insert Microphone into Base
22
24
