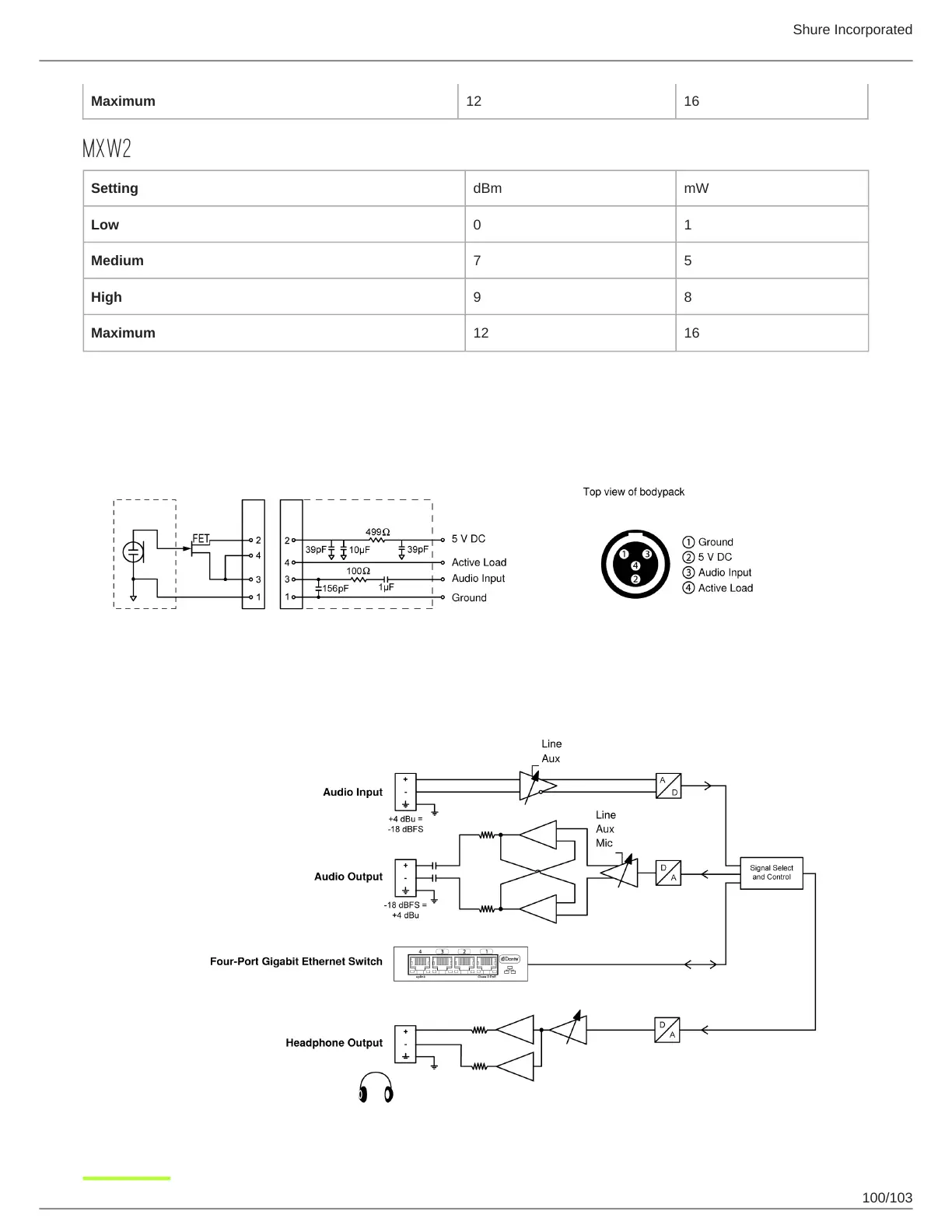

Shure Incorporated
100/103
Maximum
12
16
MXW2
Setting
dBm
mW
Low
0
1
Medium
7
5
High
9
8
Maximum
12
16
Wiring Diagram
TA4M Connector
Audio Network Interface (ANI)
99
