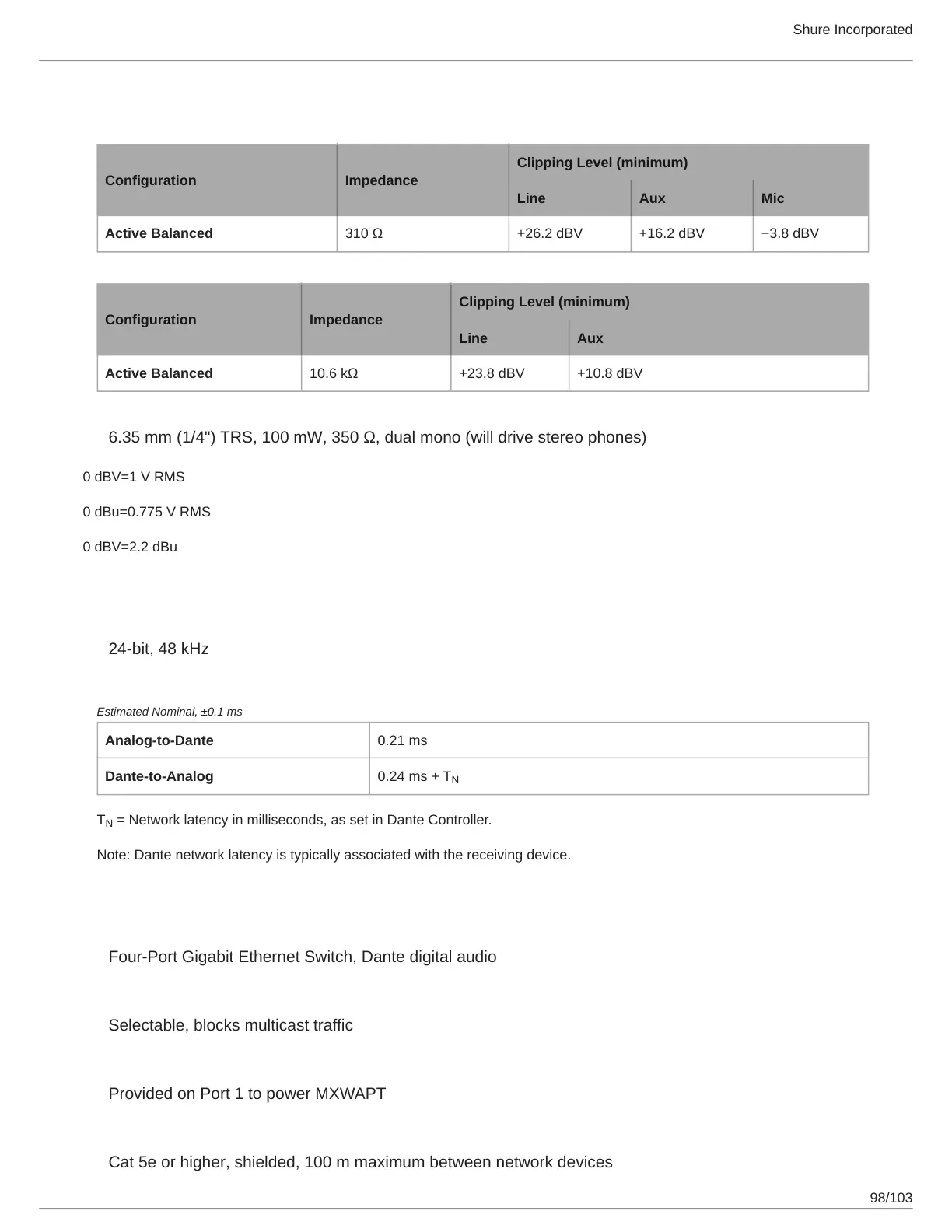

Shure Incorporated
98/103
Analog Connections
Outputs
Configuration Impedance
Clipping Level (minimum)
Line Aux Mic
Active Balanced 310 Ω +26.2 dBV +16.2 dBV −3.8 dBV
Input(s)
Configuration Impedance
Clipping Level (minimum)
Line Aux
Active Balanced 10.6 kΩ +23.8 dBV +10.8 dBV
Headphone Output
6.35 mm (1/4") TRS, 100 mW, 350 Ω, dual mono (will drive stereo phones)
0 dBV=1 V RMS
0 dBu=0.775 V RMS
0 dBV=2.2 dBu
Digital Signal Processing
AD/DA Converter
24-bit, 48 kHz
Latency
Estimated Nominal, ±0.1 ms
Analog-to-Dante 0.21 ms
Dante-to-Analog 0.24 ms + T
T = Network latency in milliseconds, as set in Dante Controller.
N
Note: Dante network latency is typically associated with the receiving device.
Networking
Network Interface
Four-Port Gigabit Ethernet Switch, Dante digital audio
Uplink Port (Port 4)
Selectable, blocks multicast traffic
Power over Ethernet (PoE)
Provided on Port 1 to power MXWAPT
Cable Requirements
Cat 5e or higher, shielded, 100 m maximum between network devices
N
