Shure QLXD2 Manual

group channel
rf power
mic oset
MHz
dB
1
2
3
4
56

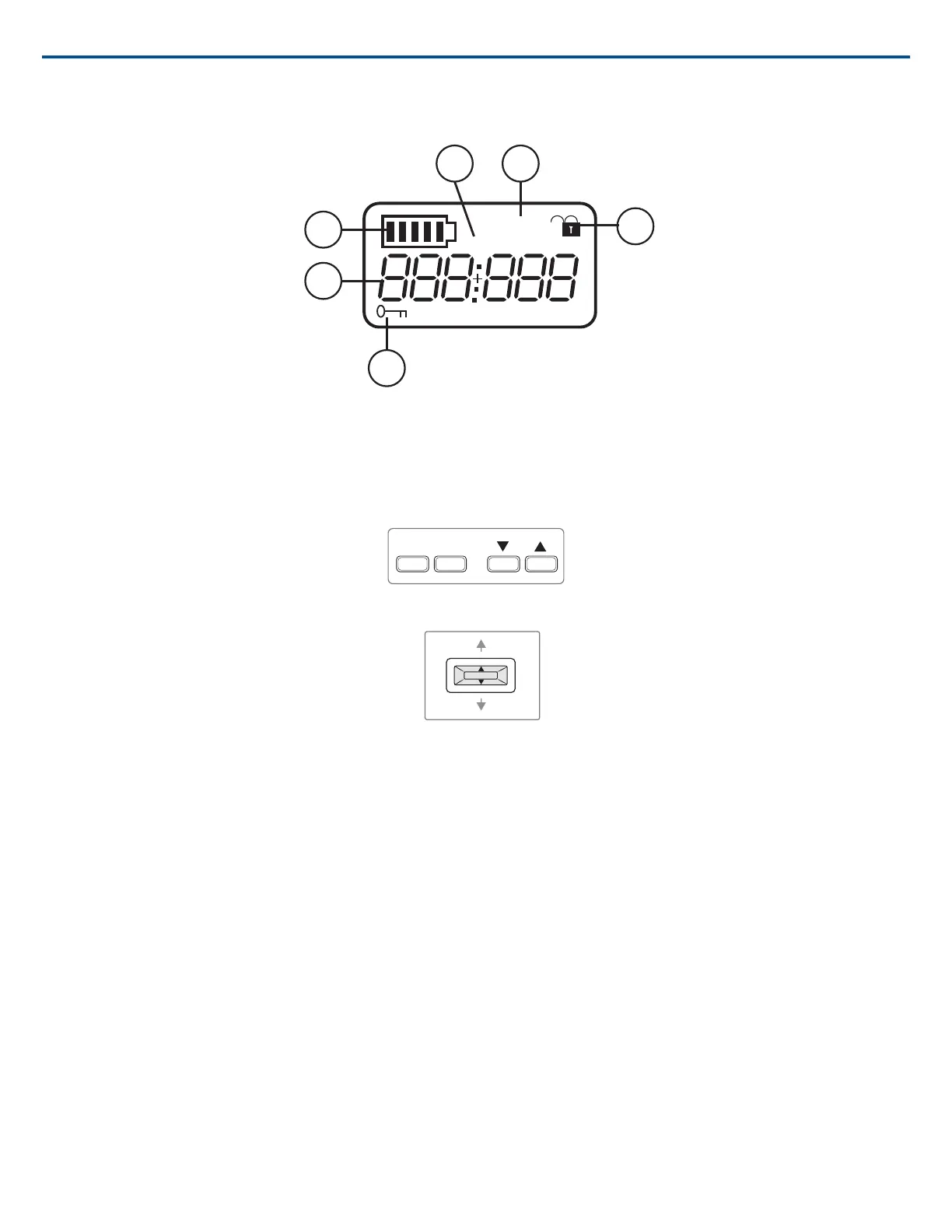

Transmitter controls
• To increase, decrease or change a parameter, use the ▼▲ buttons
• To save a menu change, press enter
• To exit a menu without saving a change, press the menu button
menu enter
Bodypack
menu enter
Handheld
Transmitter Menu Options and Navigation
The transmitter features individual menu screens for setting up and adjusting the transmitter. To access the menu options from the home screen, press the
menu button. Each additional press of the menu button advances to the next menu screen.
① Home Screen
Use the arrow keys to select one of the following home screen displays:
• Battery Icon/group and channel
• Battery Icon/frequency
• Battery Icon/Battery Runtime (SB900 installed)
② group
Use the arrow buttons to scroll through the groups.
③ channel
Use the arrow buttons to scroll through the channels.
④ frequency
Use the arrow buttons to adjust the frequency. Press and hold for faster scrolling.
⑤ lock
Select a lock option:
• On = controls locked
• OFF = controls unlocked
Shure IncorporatedQLX-D Wireless System
2017/10/0412/34

Shure QLXD2 Specifications

General

RF power	1.1 mW
Form factor	Handheld transmitter
Antenna type	Built-in
Display type	LCD
Compatibility	Shure QLXD4 Digital Wireless Receiver
Product color	Black
Average latency	2.9 ms
Built-in display	Yes
Housing material	Metal
Security algorithms	256-bit AES
Maximum outdoor range	100 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	606 - 670 MHz
Operating temperature (T-T)	18 - 50 °C
Microphone frequency response	30 - 20000 Hz
Total Harmonic Distortion (THD)	0.1 %

Weight and Dimensions

Width	51 mm
Height	256 mm
Weight	347 g
