Shure QLXD2 Manual

② Network Scan
Scans to find frequencies for networked receivers operating in the same frequency band (available when connected to a network with receivers in the same
band)
③ Group
Edit the receiver group settings
④ Channel
Edit the receiver channel settings
⑤ Lock
Choose a control lock option
⑥ Encryption
Use the arrow buttons to enable encryption (on) or disable encryption (off)
⑦ Frequency
Use the arrow buttons to edit the frequency value

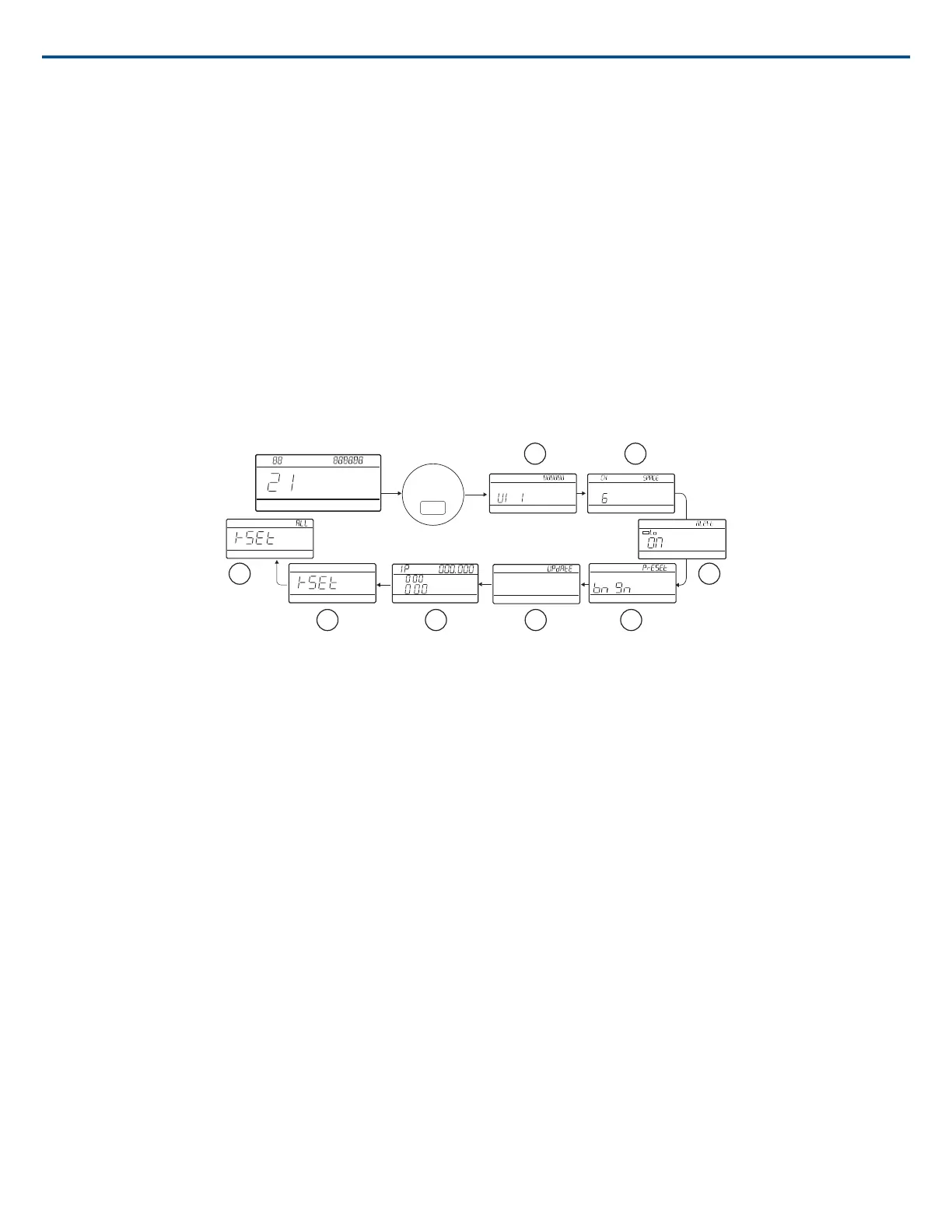

Advanced Menu
Starting from the main menu home screen, press menu while holding the enter button to access the advanced menu. Each additional press of the menu button
advances to the next menu screen in the following order.
T V MH z
grou p c han nel
T V MH z
audior f gain
MH z
gr o u p ch ann e l
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
ne t w o rk
menu
enter
+
T V MH z
1
3
456
7
8
Tx
2
① Custom Groups
Use to add channels and frequencies to Custom Groups
② TV Channel Spacing
Selects the regional bandwidth for TV channel display
③ Low Battery Alert
Enable or disable the low battery alert on the receiver screen
④ Boundary/Gooseneck Transmitter Presets
Sends ULXD6/ULXD8 presets configured in WWB to transmitters via the IR Sync window
⑤ Firmware Update
Displays what kind transmitter firmware the receiver has available. See Firmware Updates for more details.
• HH BP = handheld or bodypack firmware
• BN GN = boundary or gooseneck firmware
⑥ IP Settings
Use to select and edit IP settings and subnet masks
⑦ Network Reset
Returns network settings and IP address to default setting
⑧ Factory Reset
Restores factory settings
For application and configuration details, see the related guide topic for each advanced feature.
Tips for Editing Menu Parameters
• To increase, decrease or change a parameter, use the arrow buttons
• A menu setting will blink when editing is enabled
• To save a menu change, press enter
• To exit a menu without saving a change, press menu
• To access the advanced menu, press menu while holding the enter button from the home screen
• To return to the home screen from any menu without saving changes, press and hold the menu button.
Shure IncorporatedQLX-D Wireless System
9/342017/10/04

Shure QLXD2 Specifications

General

RF power	1.1 mW
Form factor	Handheld transmitter
Antenna type	Built-in
Display type	LCD
Compatibility	Shure QLXD4 Digital Wireless Receiver
Product color	Black
Average latency	2.9 ms
Built-in display	Yes
Housing material	Metal
Security algorithms	256-bit AES
Maximum outdoor range	100 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	606 - 670 MHz
Operating temperature (T-T)	18 - 50 °C
Microphone frequency response	30 - 20000 Hz
Total Harmonic Distortion (THD)	0.1 %

Weight and Dimensions

Width	51 mm
Height	256 mm
Weight	347 g
