Menu Button
Press to access or select menu screens
Press to cancel pending changes
Press and hold to return to the home screen
RF LED
Illuminates when RF link with transmitter is active.
IR Window
Align with the transmitter IR window during an IR sync to automatically program transmitters.
Sync LED
Blinking: IR sync mode is enabled
On: Receiver and transmitter aligned for IR sync

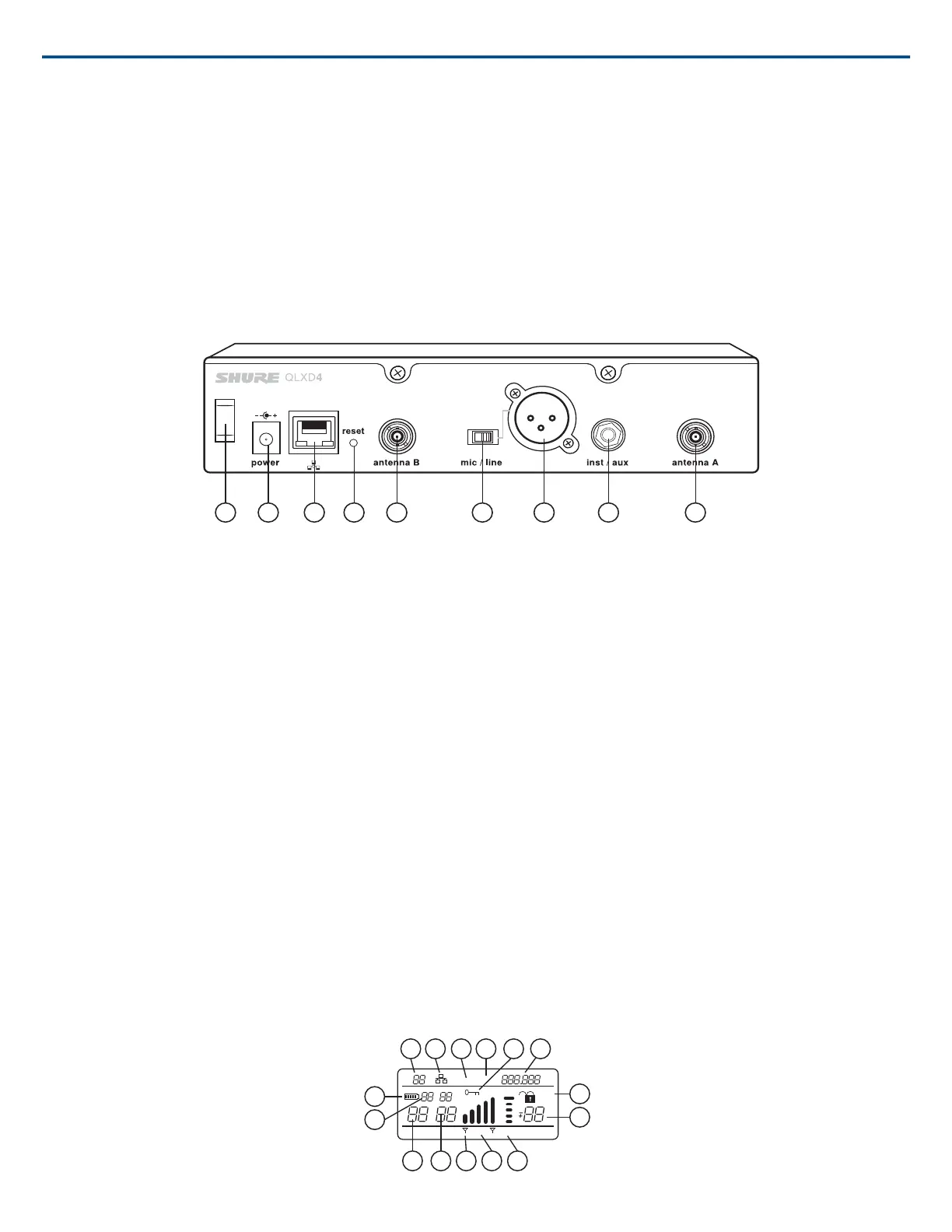

11 12 13 14 15 16 17 1518
Power Cord Strain Relief
Secures power cord.
Power Supply Jack
Connection point for DC power supply.
Ethernet Port
For network connection.
Amber LED (network speed):
off = 10 Mbps, on = 100 Mbps
Green LED (network status):
off = no network link, on = network link active
flashing = rate corresponds to traffic volume
Receiver Reset
Press to restore receiver default settings.
Antenna Connectors
BNC connector for receiver antennas
Mic/Line Switch
Sets output level to microphone or line.
XLR Audio Output
Balanced (1: ground, 2: audio +, 3: audio - )
1/4" Instrument/Auxiliary Output
Impedance Balanced (Tip: audio, Ring: no audio, Sleeve: ground)
Receiver Display
group channel rf audio gain
scan
network
menu
power
gain
dB
TV
OL TxOL
MHz
hr mn
1 2 3 4 5
6
7
8910111213
14
15
Shure IncorporatedQLX-D Wireless System
7/342017/10/04
