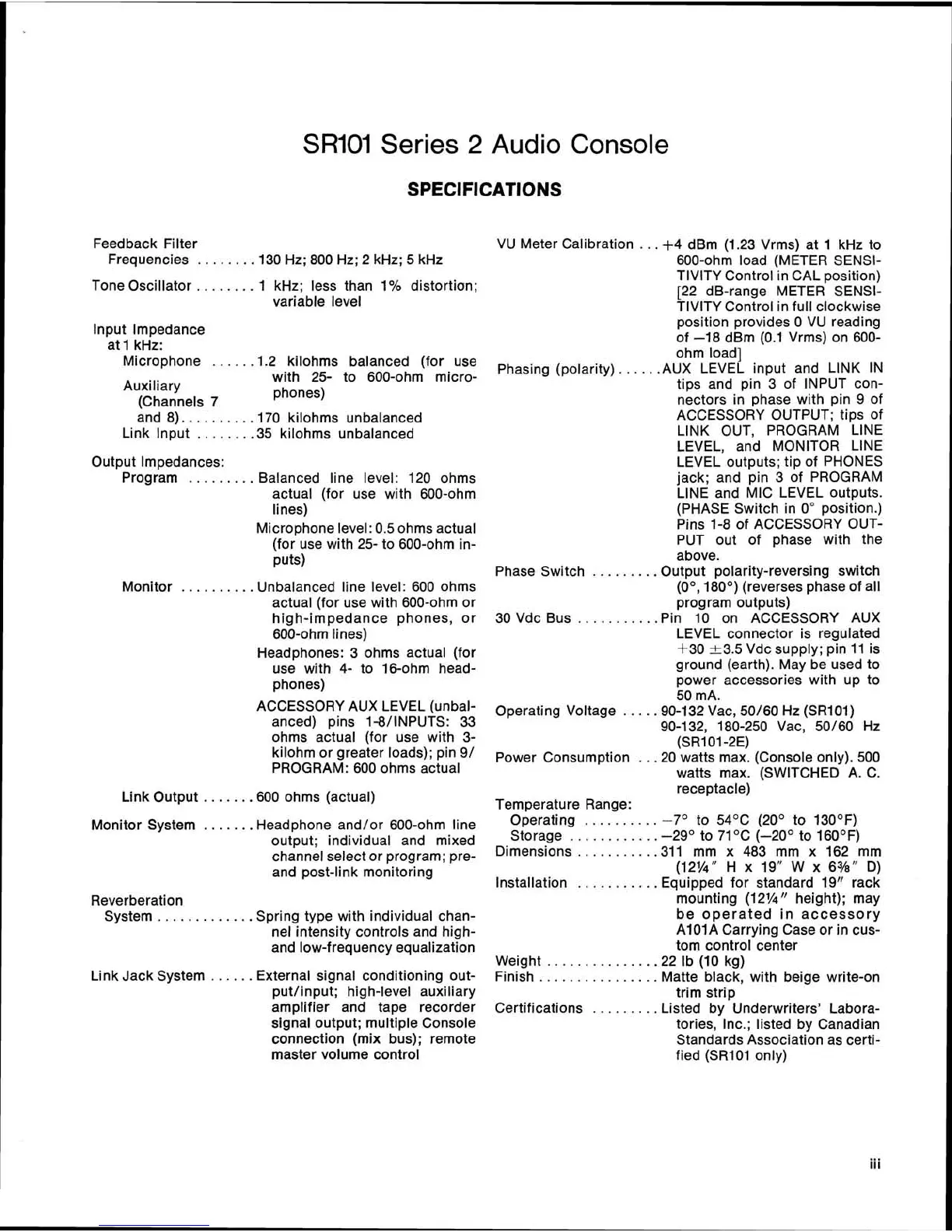

SR101 Series
2
Audio Console
SPECIFICATIONS
...
Feedback Filter VU Meter Calibration
$4 dBm (1.23 Vrms) at 1 kHz to
.......
Frequencies
.I30 Hz; 800 Hz; 2 kHz; 5 kHz
600-ohm load (METER
SENSI-
Tone Oscillator
........
1 kHz; less than 1% distortion;
variable level
lnput Impedance
at 1 kHz:
Microphone
.....
.1.2 kilohms balanced (for use
with 25- to 600-ohm'
micro-
Auxiliary
(Channels
7
phones)
........
and 8). .I70 kilohms unbalanced
.......
Link Input .35 kilohms unbalanced
Output Impedances:
Program
.........
Balanced line level: 120 ohms
actual (for use with 600-ohm
lines)
Microphone level: 0.5 ohms actual
(for use with 25- to 600-ohm in-
puts)
Monitor
.........
.Unbalanced line level: 600 ohms
actual (for use with 600-ohm or
high-impedance phones, or
600-ohm lines)
Headphones: 3 ohms
actual (for
use with 4- to 16-ohm head-
phones)
ACCESSORY AUX LEVEL
(unbal-
anced) pins 1-811NPUTS: 33
ohms
actual (for use with 3-
kilohm
or greater loads); pin 91
PROGRAM: 600 ohms actual
Link Output
......
.600 ohms (actual)
Monitor System
.......
Headphone andlor 600-ohm line
output; individual and mixed
channel select or program; pre-
and post-link monitoring
Reverberation
System
.............
Spring type with individual chan-
nel
intensity controls and high-
and low-frequency equalization
Link Jack System
......
External signal conditioning out-
putlinput;
high-level auxiliary
amplifier and tape recorder
signal output;
multiple Console
connection (mix bus); remote
master volume
control
TlVlTY ~ontrol'in
CAL position)
[22 dB-range METER SENSI-
TIVITY
Control in full clockwise
position provides 0 VU reading
of -18
dBm (0.1 Vrms) on 600-
ohm load]
....
Phasing (polarity).
.AUX LEVEL input and LINK IN
tips and pin 3 of INPUT con-
nectors in phase with pin 9 of
ACCESSORY OUTPUT; tips of
LlNK OUT, PROGRAM LlNE
LEVEL, and MONITOR LlNE
LEVEL outputs; tip of PHONES
jack; and pin 3 of PROGRAM
LlNE and MIC LEVEL outputs.
(PHASE Switch in 0" position.)
Pins 1-8 of ACCESSORY OUT-
PUT out of phase with the
above.
.........
Phase Switch Output polarity-reversing switch
(0°, 180°) (reverses phase of all
program outputs)
30 Vdc Bus
..........
.Pin 10 on ACCESSORY
AUX
LEVEL connector is regulated
+30
~3.5 Vdc supply; pin 11 is
ground (earth). May be used to
power accessories with up to
50
mA.
Operating Voltage
....
.90-132 Vac, 50160 Hz (SR101)
90-132, 180-250 Vac, 50160 Hz
(SR101-2E)
Power Consumption
...
20 watts max. (Console only). 500
watts max. (SWITCHED A.
C.
receptacle)
Temperature Range:
Operating
..........
-7' to 54OC (20' to 130°F)
Storage
............
-29' to 71°C (-20' to 160°F)
Dimensions
..........
.311 mm
x
483 mm x 162 mm
(121/'"
H
x
19" W
x
6%''
D)
Installation
...........
Equipped for standard 19" rack
mounting
(12%" height); may
be operated in accessory
AlOlA Carrying Case or in cus-
tom control center
Weight
..............
.22 Ib (10 kg)
Finish
................
Matte black, with beige write-on
trim strip
Certifications
.........
Listed by Underwriters' Labora-
tories, Inc.; listed by Canadian
Standards Association as certi-
fied
(SRIOI only)
iii
