Step 11

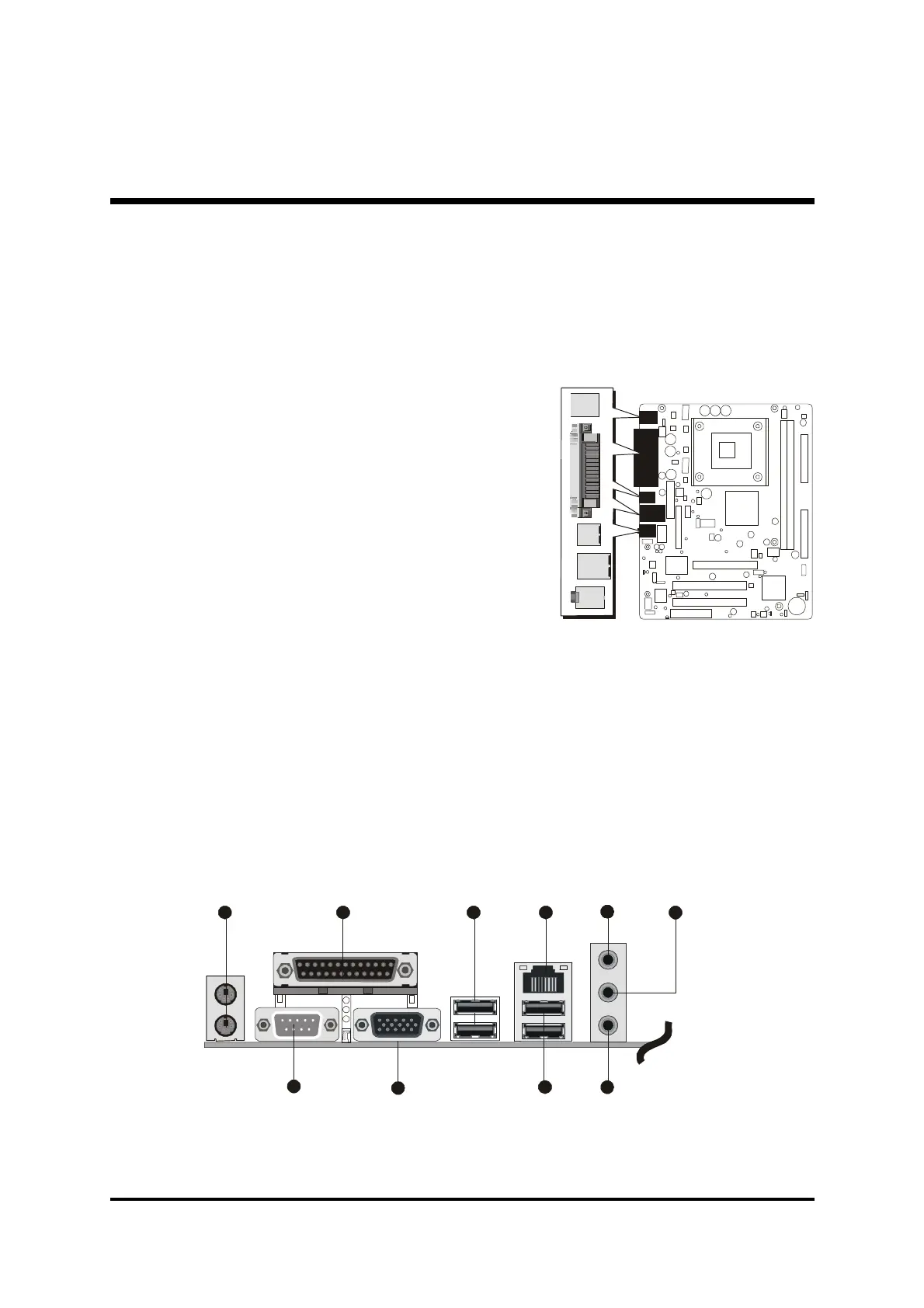

Connect External Peripherals to Back-Panel
You are now ready to put the computer case back together and get on to the
external peripherals connections to your system's back-panel.
1. PS/2 Mouse and PS/2 Keyboard
2. Parallel Port
3. COM1 Port
4. VGA Port
5. USB1/2 Ports
6. USB3/4 Ports
7. LAN Port(MV43VN Only)
8. Audio Line-In Port
9. Audio Line-Out Port
10.Audio Mic-In Port
