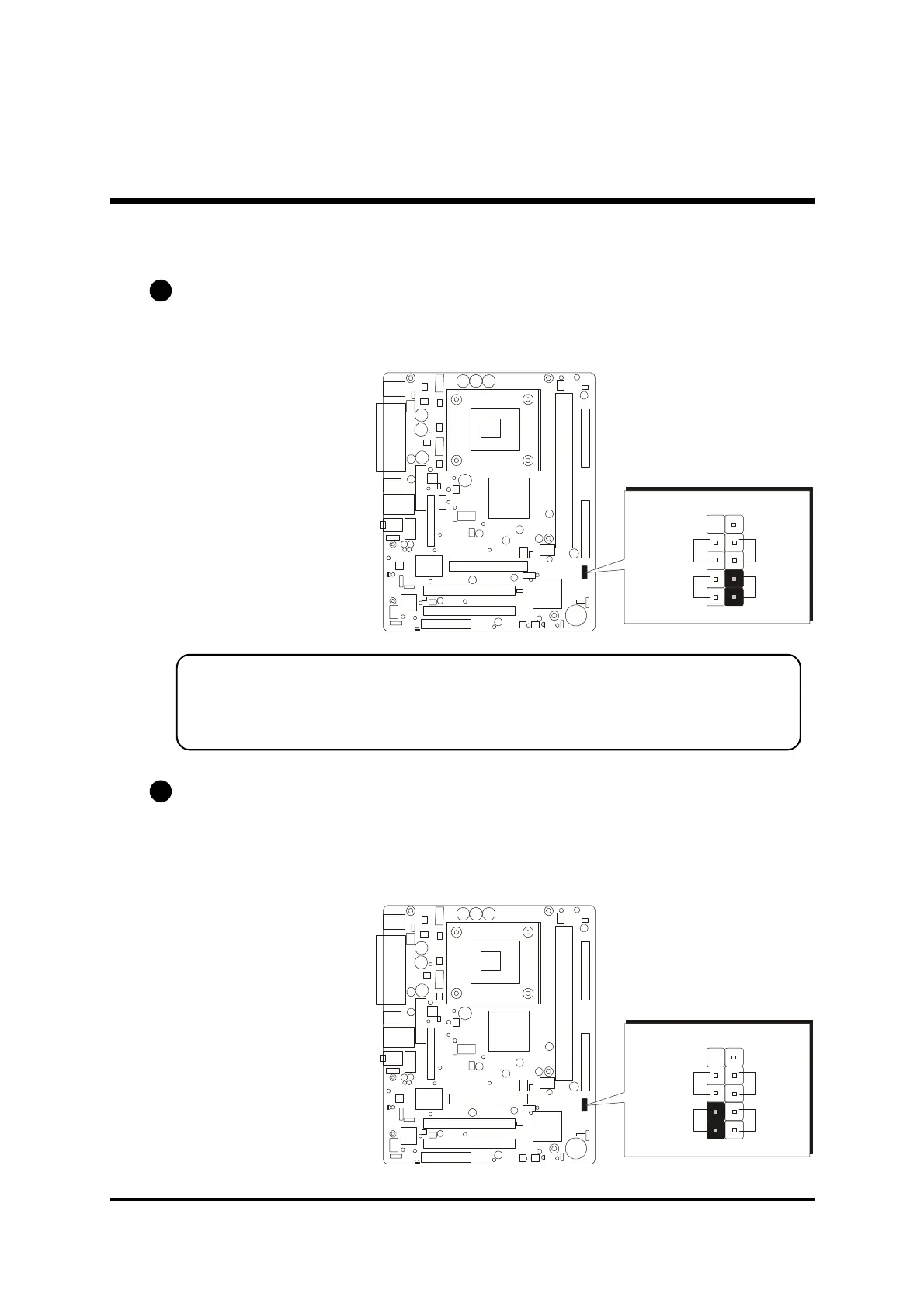

F Front-Panel Connectors
HDD LED Connector (HD_LED)
Attach the connector cable from the IDE device LED to the 2-pin (HD_LED)
header. The HDD LED lights up whenever an IDE device is active.
Note: Please notice all the LED connectors are directional. If your chassis’s
LED does not light up during running, please simply change to the
opposite direction.
Green LED Connector (SP_LED)
The Green-LED(SP_LED) indicates that the system is currently in one of the power
saving mode(Doze/Standby/Suspend). When the system resumes to normal
operation mode, the Green LED will go off. Attach a 2-pin Green LED cable to
Green LED header.
C1
C2
PANEL2
12
SP_LED
HD_LED
PW_BN
RST
PANEL2
12
SP_LED
HD_LED
PW_BN
RST
