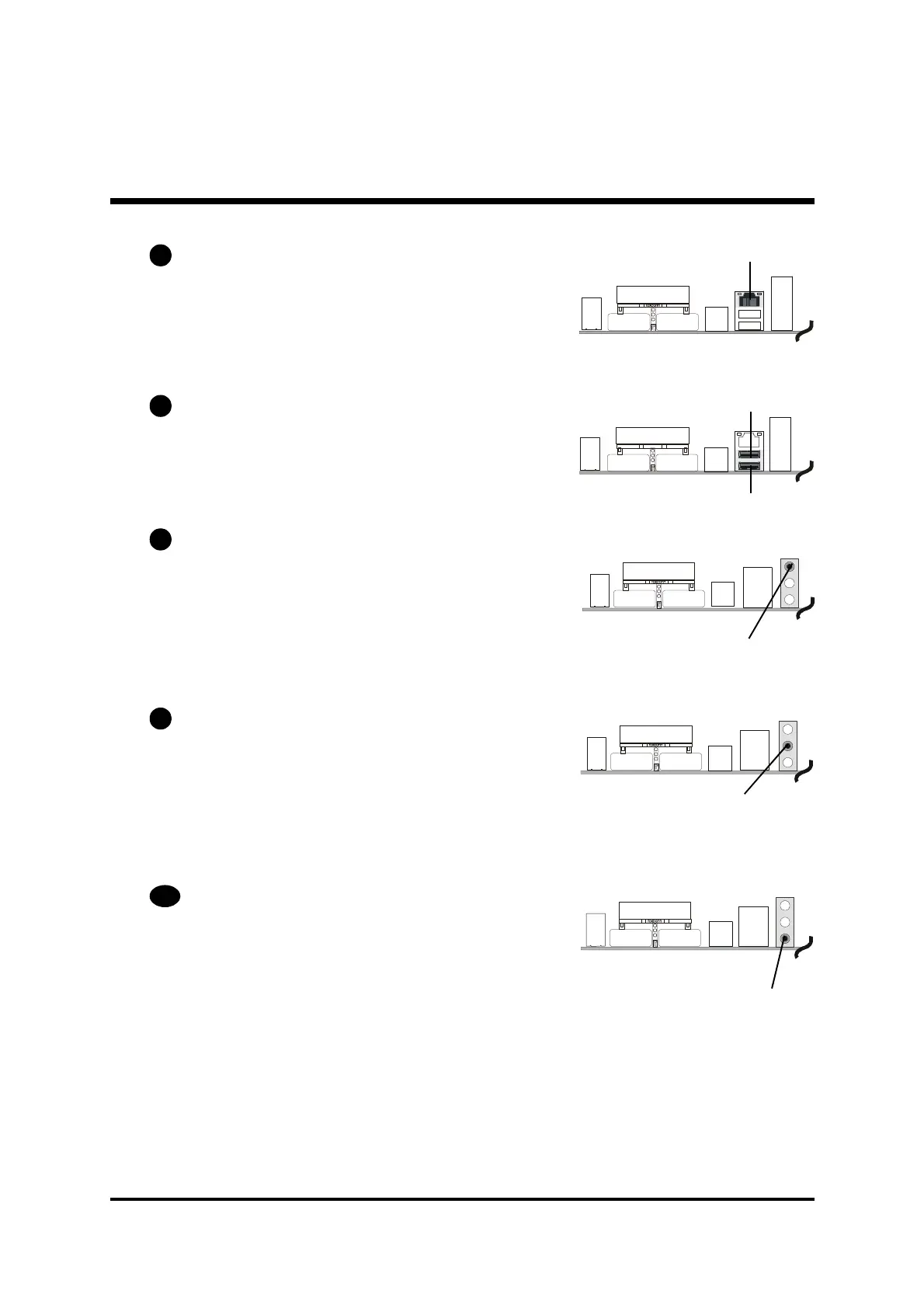

LAN Port Connector(MV43VN Only)
This mainboard can accommodate one de-
vice on LAN.
Attach a 10/100 baseT cable to the RJ45 at
the back-panel of your computer.
USB3/USB4 Port Connectors
This mainboard offers 2 USB ports on back
panel. Plug each USB device jack into an
available USB3/USB4 connector.
Line-In Port Connector
Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can
be used as a source for digital sound record-
ing, a source to be mixed with the output,
or both.
Line-Out Port Connector
Line-Out is a stereo output port through
which the combined signal of all internal
and external audio sources on the board is
output. It can be connected to 1/8-inch TRS
stereo headphones or to amplified speakers.
Mic-In Port Connector
Mic-In is a 1/8-inch jack that provides a
mono input. It can use a dynamic mono or
stereo microphone with a resistance of not
more than 600 Ohms.
B6
B7
B8
B9
Line-Out Port
Line-In Port
B10
LAN Port
USB Port 4
USB Port 3
Mic-In Port
