Shuttle MV43V - Speaker Connector (SPK1); Extended USB Header (USB2)

- 33 -

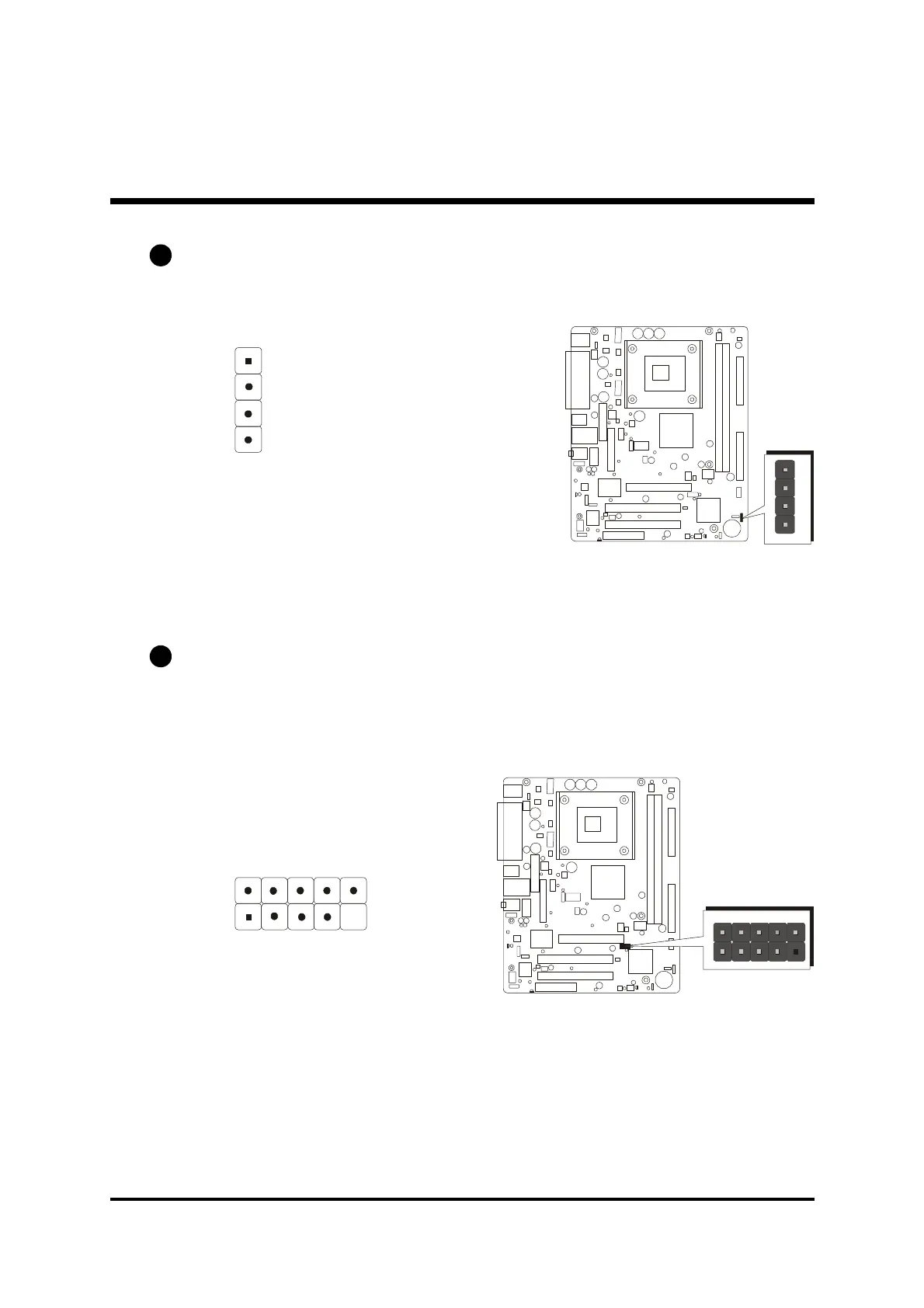

Speaker Connector (SPK1)
Attach the PC speaker cable from the case to the 4-pin speaker connector (SPK1).
Pins Assignment:
1=SPKR
2=NC
3=GND
4=+5V
Extended USB Header (USB2)
The mainboard has USB ports installed on the rear edge I/O port array. Some
computer cases have a special module that mounts USB ports at the front of
the case. If you have this kind of case, use auxiliary USB cable to connect
the front-mounted ports to the mainboard.
Pins Assignment:
1=VERG_FP_USBPWR0 2=VERG_FP_USBPWR0
3=USB_FP_P0- 4=USB_FP_P1-
5=USB_FP_P0+ 6=USB_FP_P1+
7=GND 8=GND
9=KEY 10=USB_FP_OC0(Overcurrent signal)
1
3
5
7
9
2
4
6
8
10
1
2
3
4
C6
C5
1
USB2
1
S
P
K
1
