Shuttle MV43V - Hardware Reset Connector (RST); ATX Power On;Off Switch Connector (PW_BN)

- 32 -

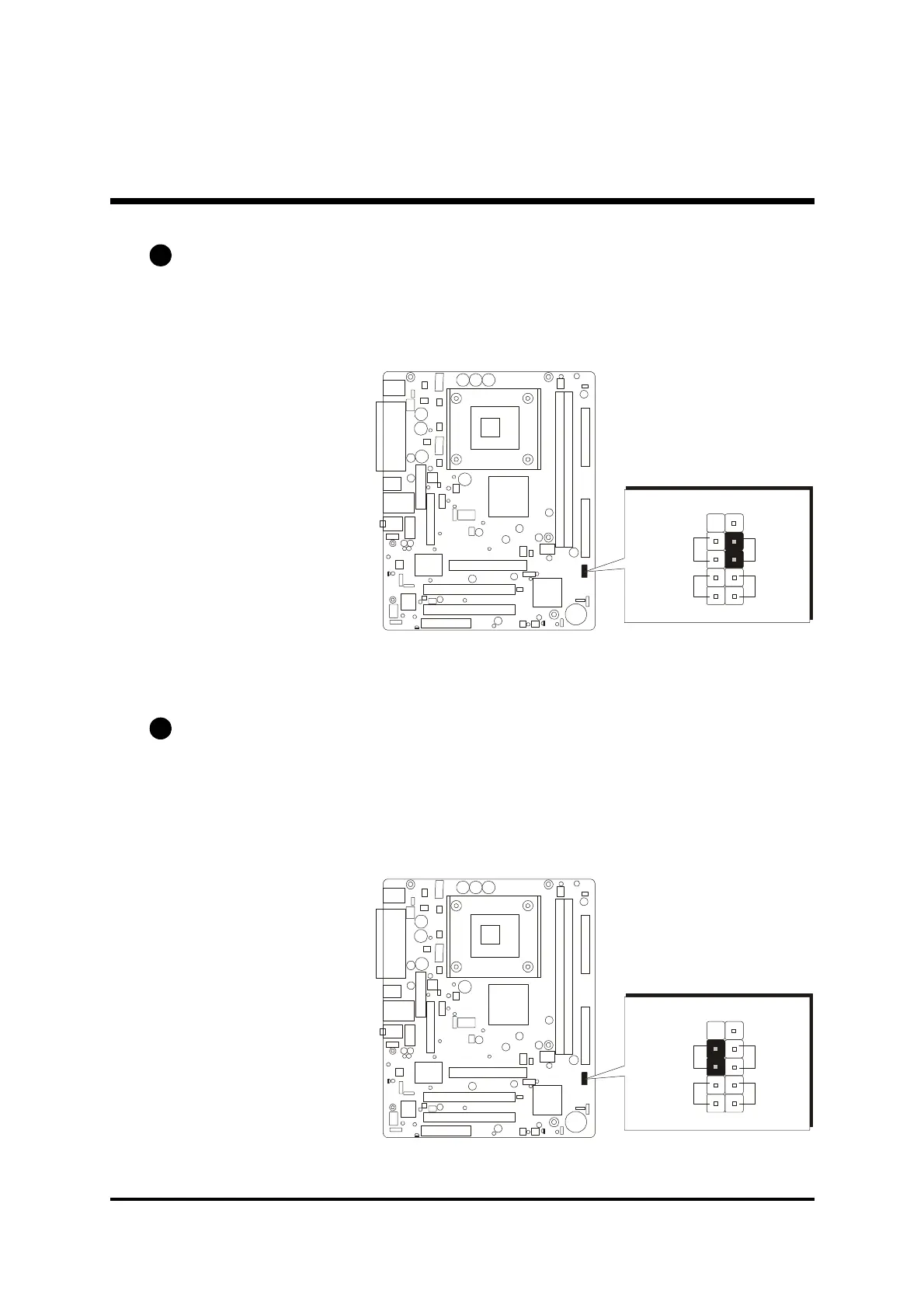

Hardware Reset Connector (RST)
Attach the 2-pin hardware reset switch cable to the (RST) header. Pressing the
reset switch causes the system to restart.
ATX Power On/Off Switch Connector (PW_BN)
The Power On/Off Switch is a momentary type switch used for turning on or
off the system ATX power supply. Attach the connector cable from the Power
Switch to the 2-pin (PW_BN) header on the mainboard.
C3
C4
PANEL2
12
SP_LED
HD_LED
PW_BN
RST
PANEL2
12
SP_LED
HD_LED
PW_BN
RST
