Chapter 2. Unpacking and First Operation

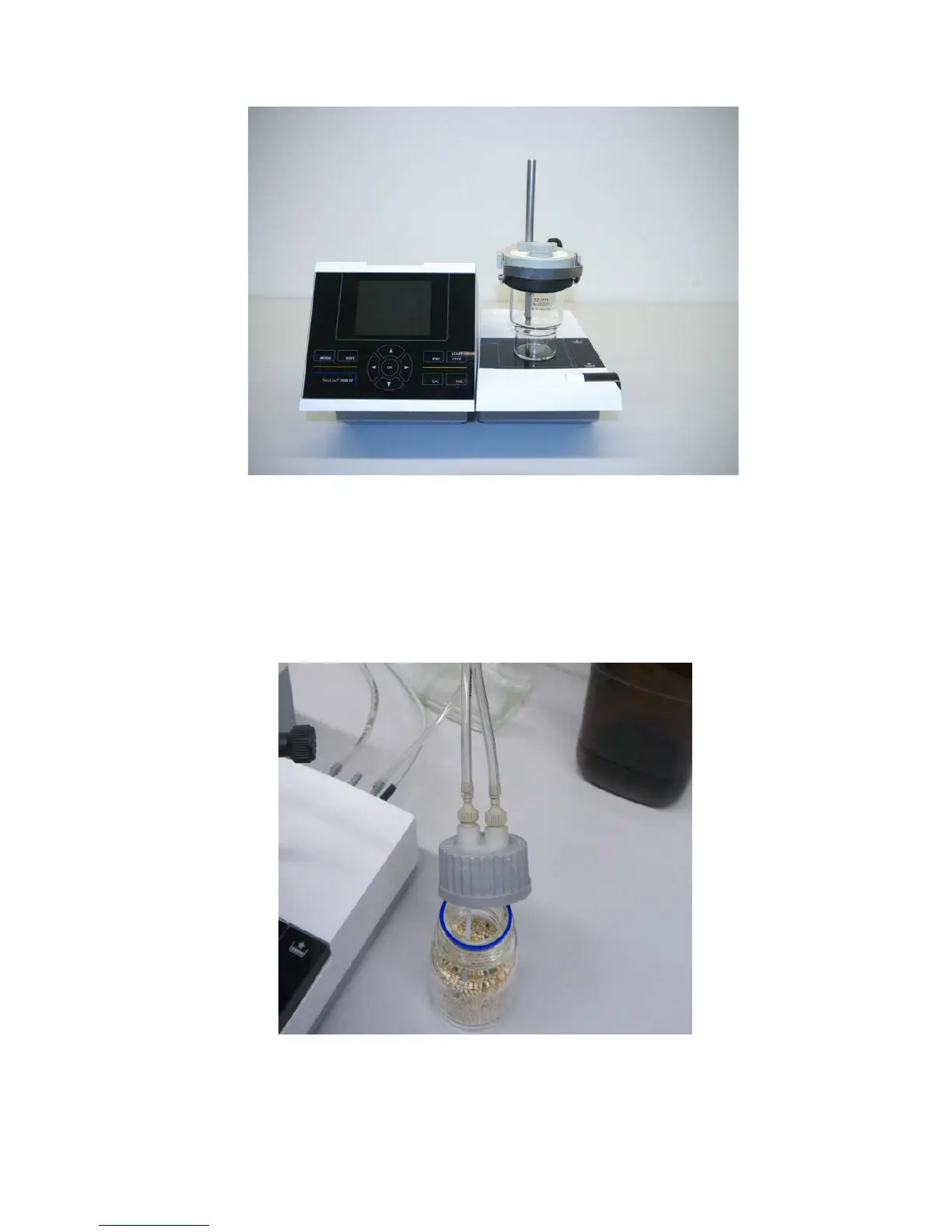

Fig. 2
Put all three white inner plastic adapters at the waste, solvent and moisture bottle.
Fill the moisture bottle with molecular sieve.
Connect the PVC and PTFE plastic tubes as shown in the next pictures.
The PVC tubes are connected to the connectors at the back side of the TM 235 KF. The long PVC tube is used
for the connection of the waste bottle. The two shorter PVC ones are used to connect the moisture bottle and the
solvent bottle.
Fig. 3
