Outboard Feedback Installation
If you have a Rotary Rudder Feedback, see the section titled, "Rotary Rudder Feedback".
Introduction:
The Outboard Feedback sends information
about the rudder or propeller position to the
SP-70 or SP-80.
The Outboard Feedback can be attached to
the hydraulic steering cylinder by using a
stainless steel band clamp. A stainless steel
bracket attaches one end of the Outboard
Feedback to the steering cylinder rod.
The Outboard Feedback is provided with 30
feet (9.1 metres) of cable.
The Outboard Feedback can be used with
hydraulic cylinders from 1.25 to 2.25 inches.
(31.8 to 57.1 mm) in diameter. The cylinder
stroke cannot exceed 10.5 inches (266 mm).

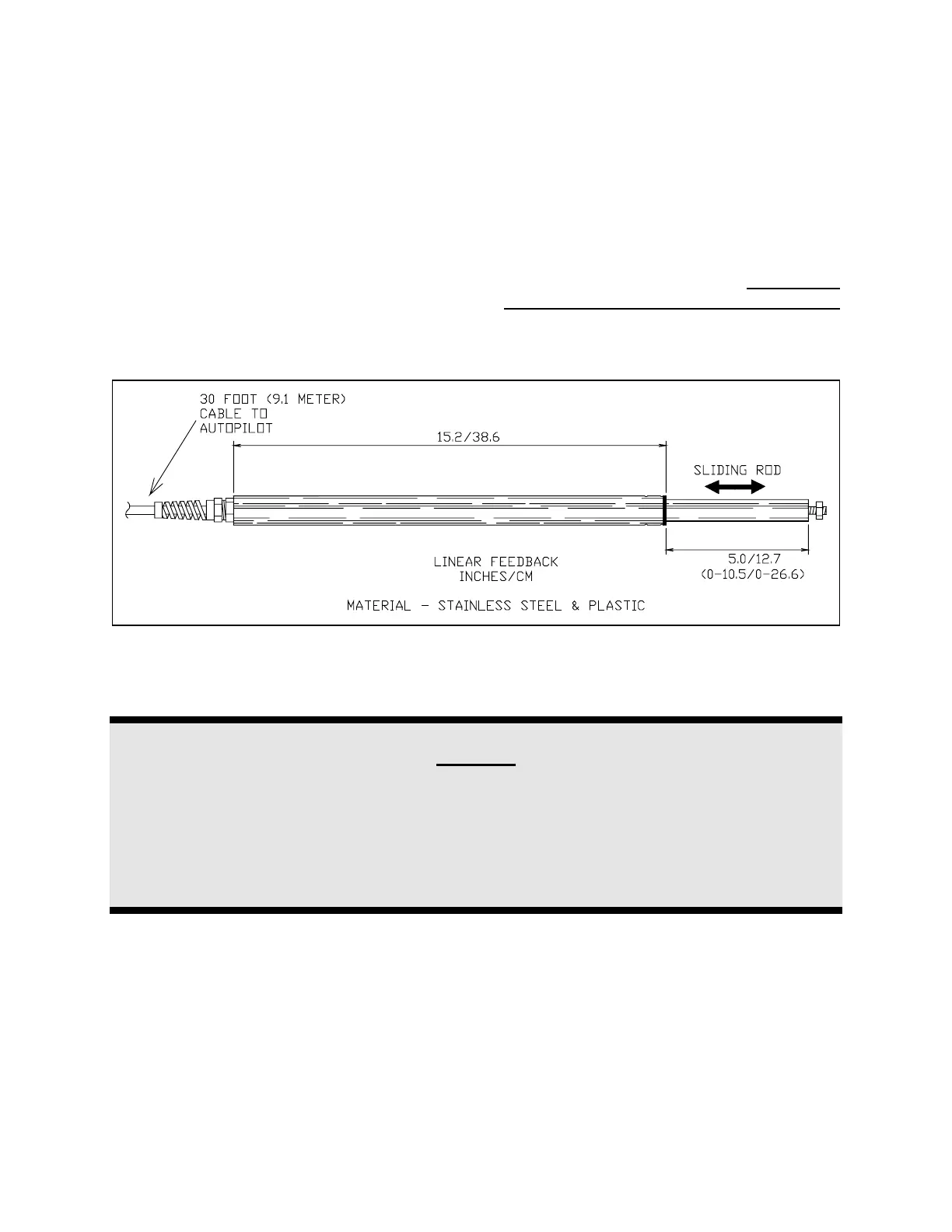

Outboard Feedback
Caution
The Outboard Feedback will be damaged if it is extended more than 10.5 inches. This damage will
not be covered by warranty.
If necessary, the extended length of the steering cylinder can be limited using corrosion-resistant
spacers as shown on page 36.
