APPENDIX D
Connecting a Rudder Angle Indicator
The cable gland for a rudder angle indicator is in your Accessory Bag. We do not supply a cable
for this installation but recommend a #22 gauge, two conductor cable that is round in order to
make a water-tight seal. The outer diameter of this cable must not exceed ¼ inch (6.5mm) or be
less than 5/32 inch (4mm). The gland for this input must be mounted on the end cap. To locate
the hole for the gland, look on the inside of the end cap. You will see several places where the
plastic has been formed so that a hole may be easily drilled. Drill the hole using a 9/32 inch (7mm)
drill. Place the gland from the accessory kit in the hole. Fasten it with the supplied plastic nut and
tighten securely.

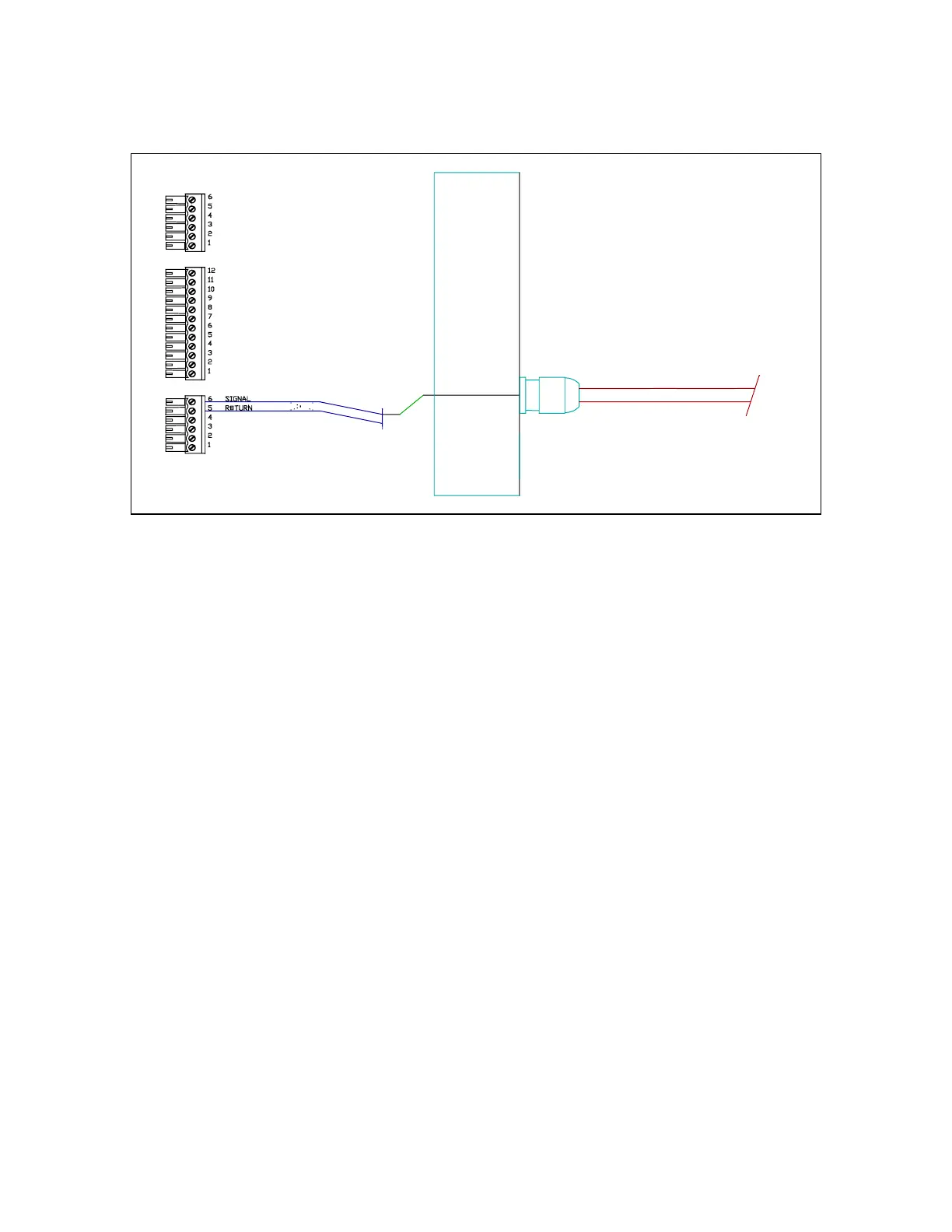

Right-hand side showing optional RAI connection.
