The Outboard Feedback should now be at
half its full extension and attached to the
outboard motor which is at the center
position.
Adjust the position of the Outboard Feedback
so that as nearly as possible it is parallel with
the hydraulic cylinder both horizontally and
vertically. Tighten the nuts and the stainless
steel band clamp securely.
Run the cable forward to the Processor
location. Choose a route for the cable so that
the minimum bend radius in the cable is at
least 4.2 in. (10.7 cm). This is especially
important in the motor well and other areas
where vibration is present.
Complete the autopilot installation and
perform the Set-up Routine as described.

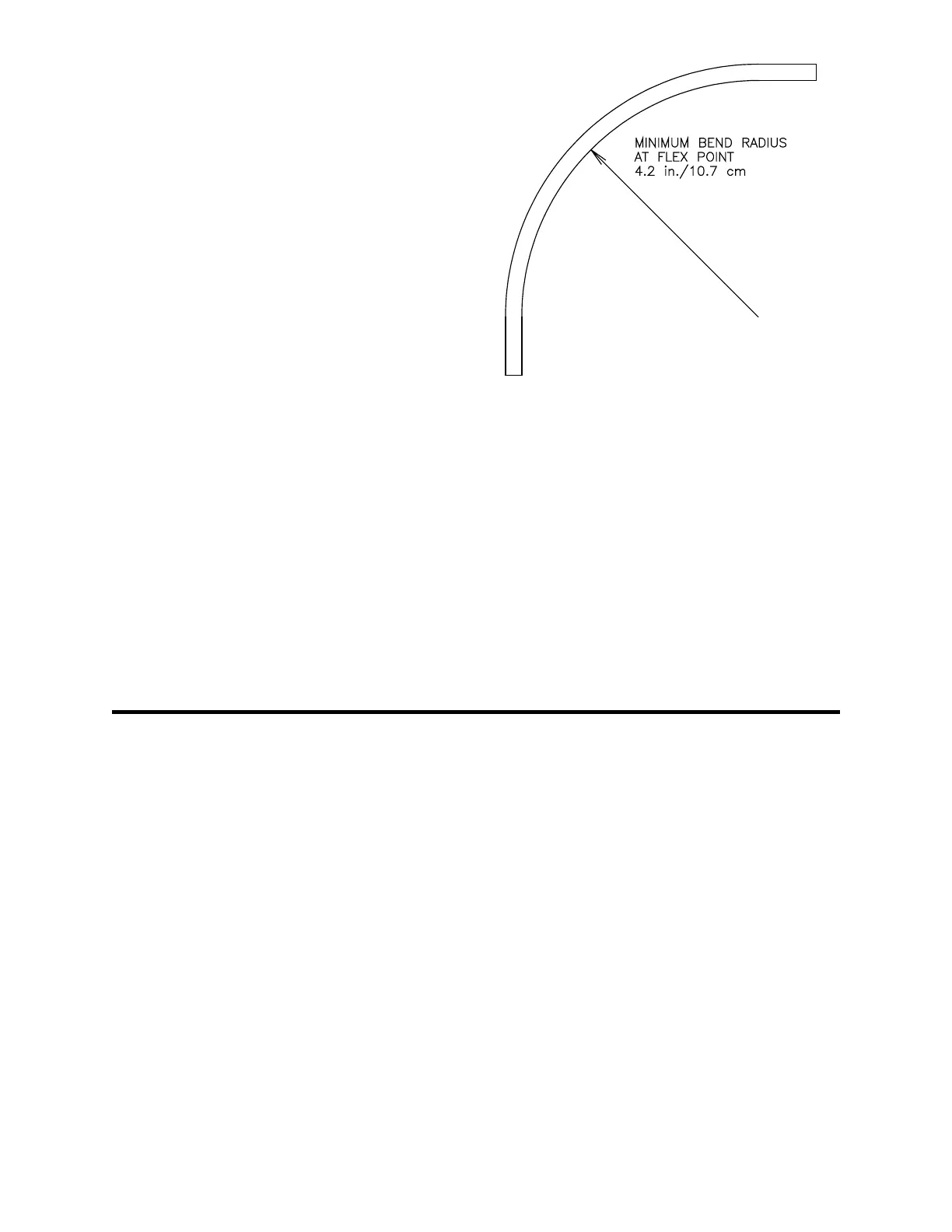

Minimum Bend Radius
Maintenance
Keep the sliding rod clean. Wipe it occasionally so that dirt cannot enter the Linear Feedback. Use
a clean, soft rag.
After trailering your boat, it is very important to clean the sliding rod.
