SI-TEX SP-70 & SP-80 Autopilot Systems
GR E E N
RE D
BLACK
BLUE
WH I T E
YE L L O W
SHIELD
GREE
N
PINK
GREY
YELLOW
WHITE
BROWN
SHI ELD
Or igin al
Cable
Colours
Al t er na t e
Cable
Colours

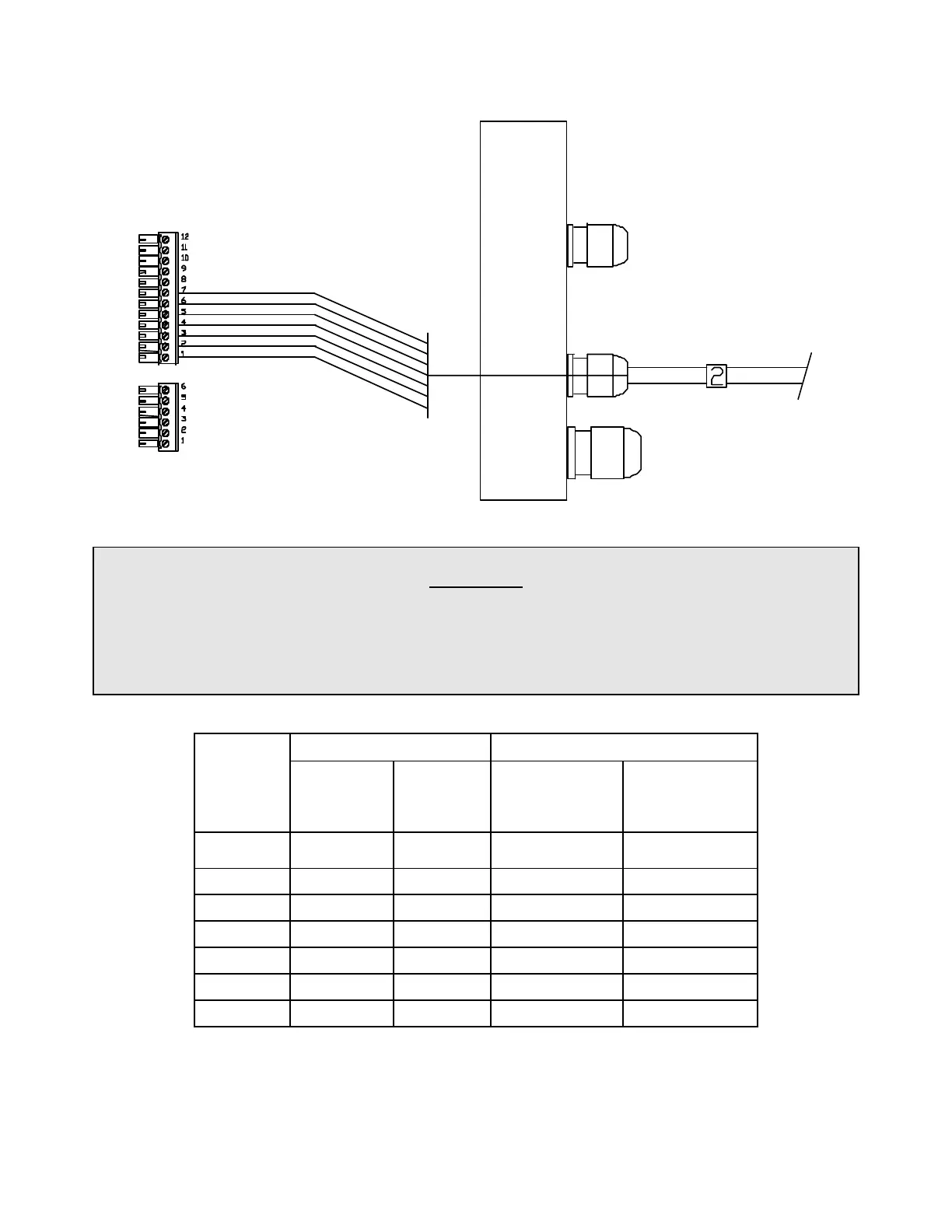

Right Side, Cable 2 (Compass) to J6
Be Careful
The entire stripped end – but no portion of the insulation – of all wires into the terminal strip
plugs must be completely inside the plugs. The stripped ends of wire must not be able to
touch each other.
Every wire must be connected to the correct terminal on its plug!
Connections For Fluxgate Compasses
Cable 2 Signal Function
J6 PIN
Original
Wire
Colours
Alternate
Wire
Colours
SP-70/80
Fluxgate
Compass
Other
Compass
1 SHIELD SHIELD GROUND GND
2 YELLOW BROWN COSINE
COSINE *
3 WHITE WHITE REF REF
4 BLUE YELLOW SINE
SINE *
5 BLACK GREY DRIVE P2 N/C **
6 RED PINK DRIVE P1 N/C **
7 GREEN GREEN +12V +12V
* If the compass reading is reversed, swap these two wires
** These wires must not be connected to any compass other than the one
supplied with the SP-70/80
