SICK AFS60 PROFINET Mounting Instructions

CAUTION
Max. number of encoders (series connection) is 10.
3.4 Screw-in system M12
Connection via 3 x screw-in system M12.
Male connector M12 tightening torque: 0.4 ... 0.5 Nm

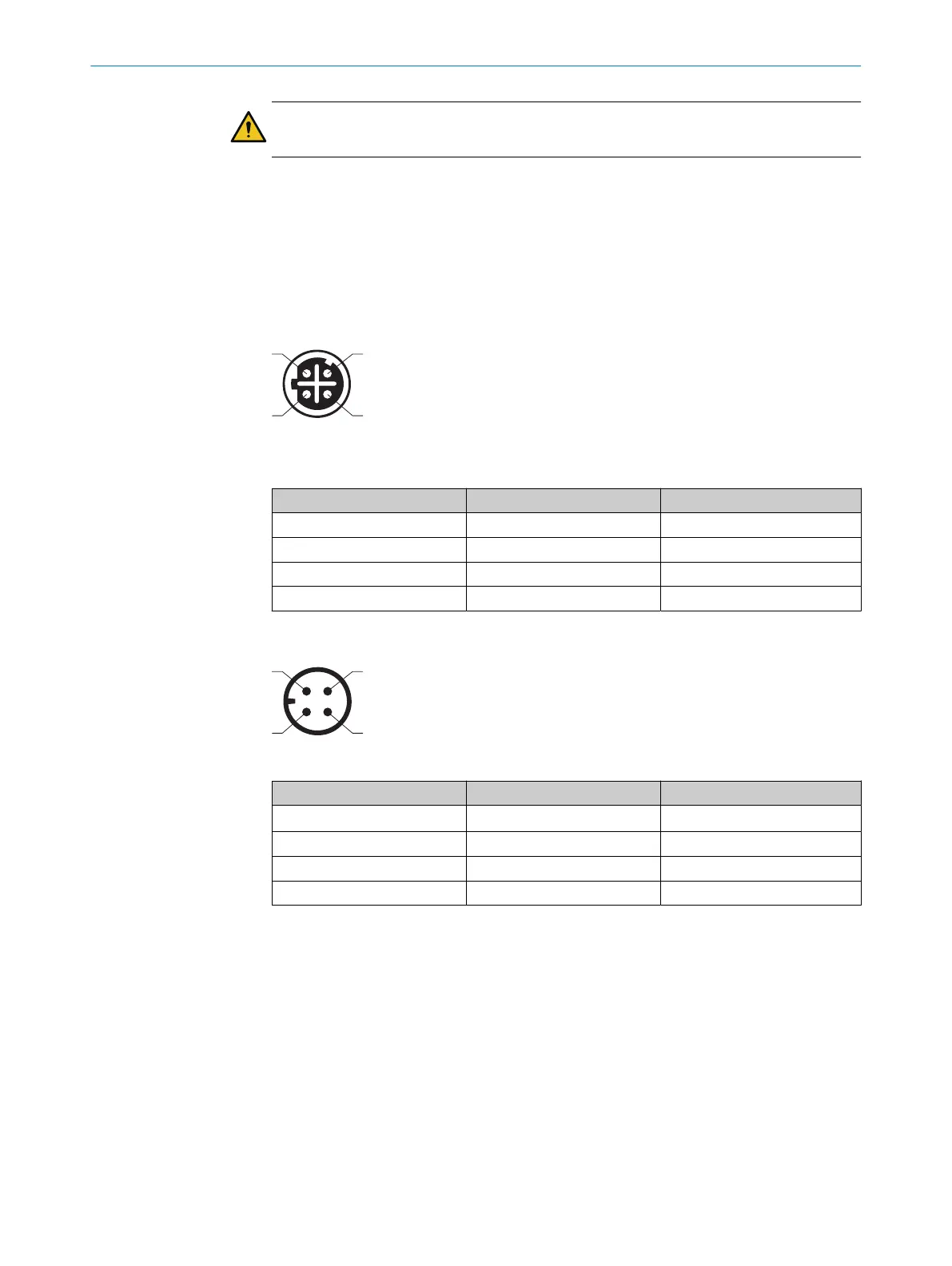

3.5 PIN assignment
Female connector, M12, 4-pin, D coded
2
1
3
4
Figure 1: Port 1 und 2
Port 1, Port 2
PIN Signal Color of wires
1 TXD+ Yellow
2 RXD+ White
3 TXD- Orange
4 RXD- Blue
Male connector, M12, 4-pin, A coded
1
2
4
3
Supply voltage
PIN Signal Farbe der Adern
1 U
S
10 ... 30 V Brown
2 Warning! Do not use. White
3 GND Blue
4 Warning! Do not use. Black
MOUNTING INSTRUCTIONS
8015211/1EF3/2021-12-02 | SICK M O U N T I N G I N S T R U C T I O N S | AFS/AFM60 PROFINET
13
Subject to change without notice
