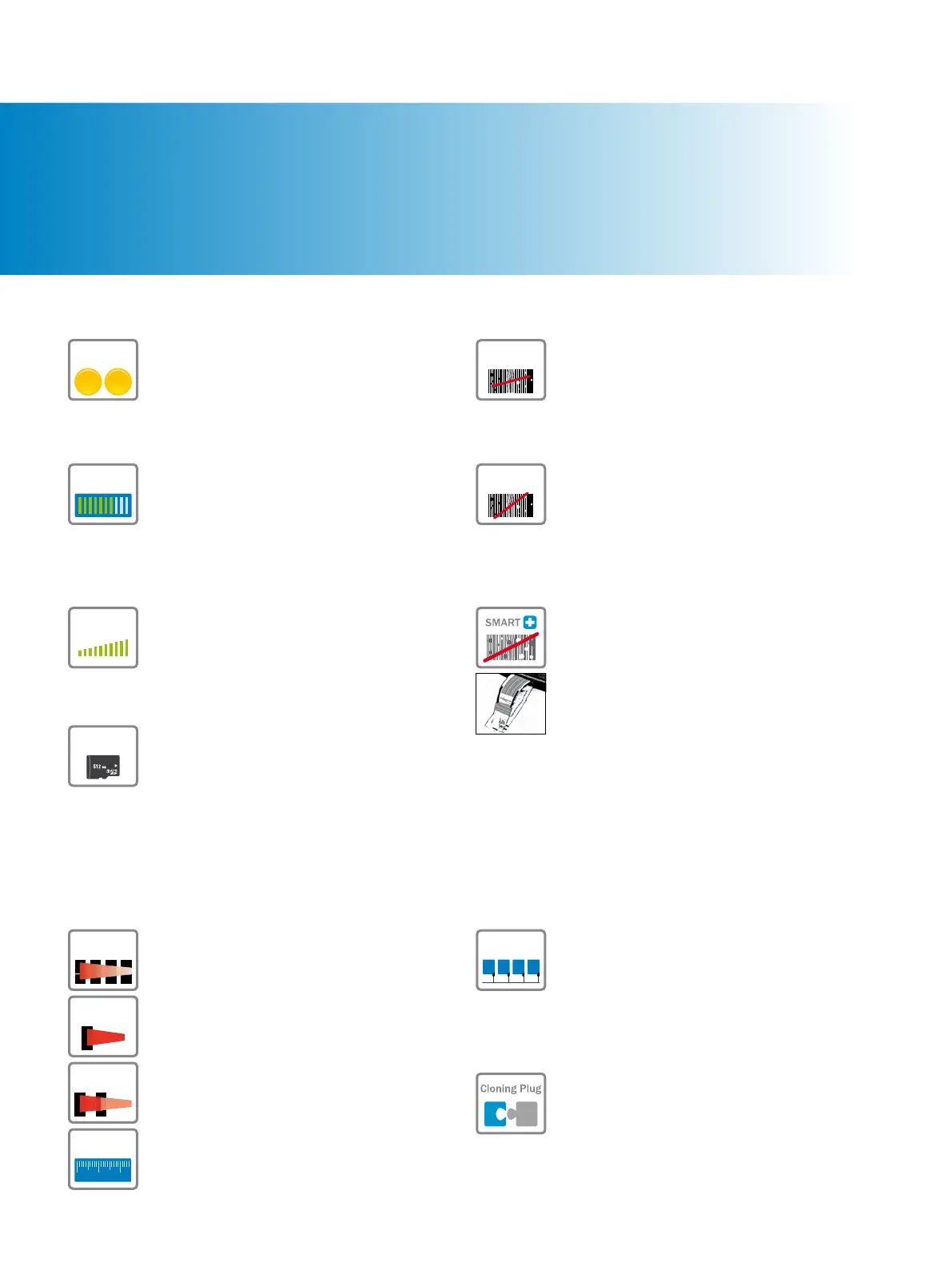

OUTSTANDING PRODUCT
FEATURES
Two function buttons
“Select” and “Start/End” functions, such as
• Starting auto-setup
• Teaching in a match code
• Starting reading diagnostics
2 x Button
LED bar graph
A PC is not required for statical checking of the
reading rate. The information can be read directly
from the LED bar graph.
LED
Bar Graph
Intelligent auto-setup
Optimizes the bar code scanner automatically to
the bar codes that are to be read.
Intelligent
Auto Setup
0%
100%
An integrated microSD memory card slot allows
simple and rapid exchange of a bar code scanner
in the event of a fault. In addition, the rmware
can be updated easily using the microSD memory
card. This is done by means of external parameter
cloning, without the need for reconguring using a
PC. In turn, this achieves a very low MTTR value
*
.
*
MTTR = mean time to repair.
microSD memory card
Micro SD
Card
SMART (code reconstruction)
Reliable reading of even damaged, dirty, and/or
partially covered bar codes. Reliable reading even
in tilted positions. This means that the bar code
can be attached in a position that is rotated up to
45 degrees in relation to the scanning beam.
SMART
CAN
The integrated CAN bus supports:
• CANopen
®
protocol
• SICK CAN sensor network for simple network-
ing of scanners using master/slave or multi-
plexer/server methods
CAN
Flexible connectors: consisting of a 60-pin Samtec
male connector and four different connectors that
enable the technology to be adapted perfectly to
the application in question.
Cloning plug
SMART620 (code reconstruction)
Reliable reading of even damaged,
dirty, and/or partially covered bar codes.
SMART620
Focus
Fixed focus for xed distances, dynamic focus for
reading at dynamic reading distances, and auto-
matic focus position switching in real time with
integrated distance measurement (no additional
photoelectric sensors required).
Fixed Focus
Dyn. Focus
Distance
Measuring
2001000
Auto Focus
The CLV69x sets new benchmarks in computing
power and reading performance. It also offers
innovative analysis features, creating additional
benets.
The novel image output concept on the CLV69x
can be activated for any conceivable reading
situation. The device sends the recorded image
data to software, which later displays not only the
actual image, but also how the current reading
situation is progressing in terms of focus.
The data gathered in this way ensures that the
decoder is continuously optimized and offers
signicant advantages for “no-read” analysis.
SMART+
