CLV64x BAR CODE SCANNERS
Product description
The CLV64x bar code scanners offer
dynamic focus adjustment extending the
range of the scanner for those applica-
tions where xed focus comes up short
but autofocus is outside the budget.
Newly improved SMART algorithms in
the CLV64x are superior when reading
damaged and tilted codes.
Combine single line, raster, oscillating
mirror, high density and low contrast
variants with exceptional reading
performance and exible data han-
dling capabilities, and you have all the
ingredients for solving high-performance
applications in the material handling
and logistics markets. Variants include
line, raster, side reading window and
oscillating mirror versions; available with
Ethernet.
At a glance
• Dynamic focus adjustment enables
extended depth of eld
• Integrated pushbuttons for auto
setup and reading diagnostics
• CAN, Ethernet TCP/IP, PROFINET, and
EtherNet/IP available on board, no
additional gateway needed (depend-
ing on variant)
• Enhanced SMART code reconstruc-
tion technology
• Flexible sorting, ltering, and logical
functions
• Advanced, easy-to-use SOPAS con-
guration software
• Integrated LED bar graph
• Advanced remote diagnostics and
network monitoring capabilities avail-
able over Ethernet
Your benets
• Economical, as only one CLV64x is
required for all focus positions
• Intelligent auto setup and multi-func-
tion pushbuttons save time during
commissioning
• Teach-in of match code possible via
the pushbuttons
• Easily execute rmware updates
using the microSD memory card: no
need for a PC
• No supplementary Ethernet gateway
required with Ethernet models – low-
ers costs
• Enhanced SMART technology reads
damaged and partially obscured
codes, increasing read rates
• Increased scanner intelligence
enables sophisticated conguration
of logical operations, reducing the
control system programming effort.
Data is then delivered in the desired
format
• Real-time decoding at very high
speeds

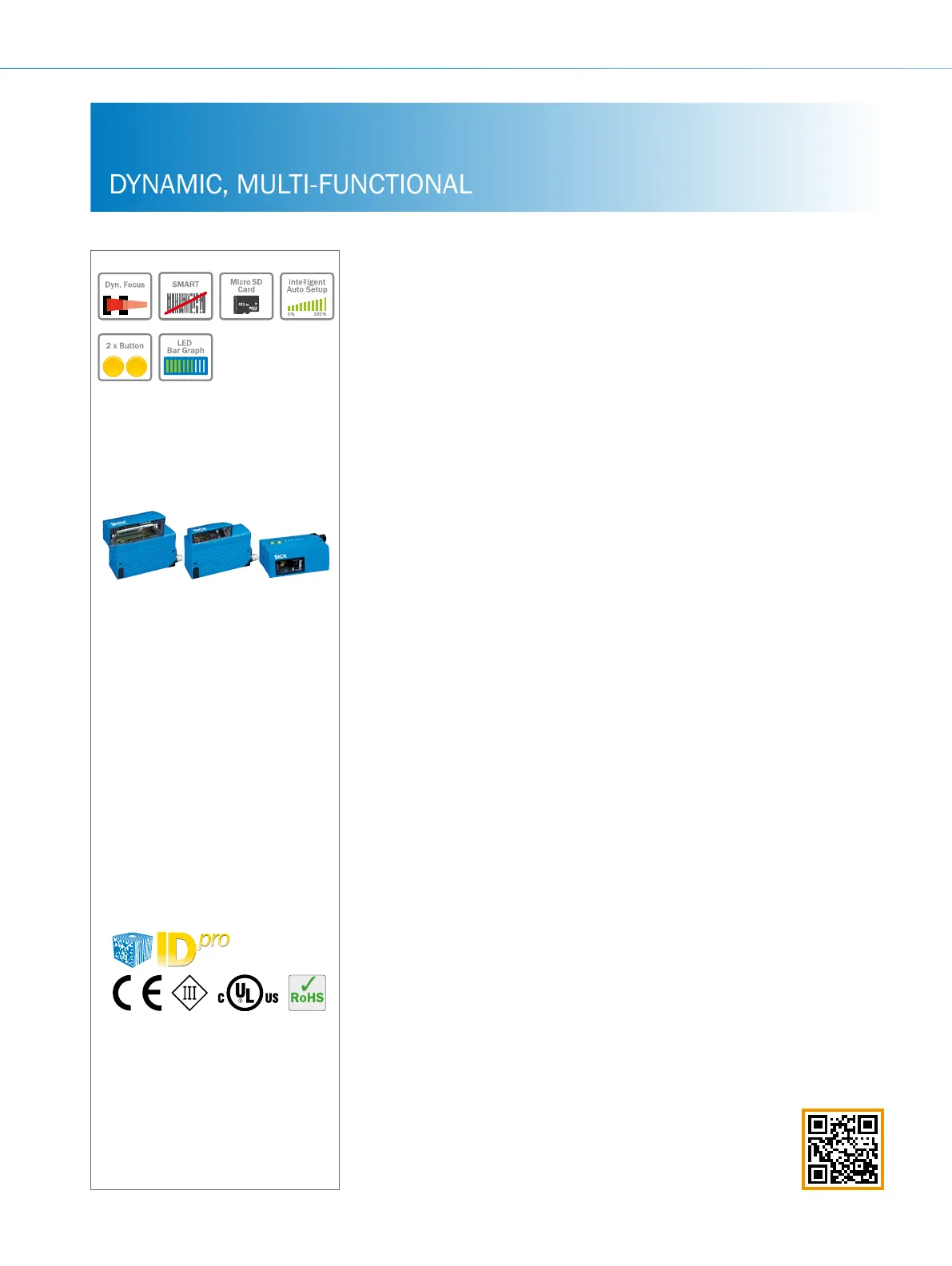

CLV64x
Dynamic, multi-functional
Additional information
Detailed technical data . . . . . . . . . . 43
Ordering information . . . . . . . . . . . . 45
Dimensional drawings . . . . . . . . . . . 45
Reading eld diagrams . . . . . . . . . . .47
Recommended accessories . . . . . . 48
2011/65/EU
- www.mysick.com/en/CLV64x
For more information, just enter the link or scan the QR code and get direct access to technical
data, CAD design models, operating instructions, software, application examples and much
more.
