CLV69x BAR CODE SCANNERS
Product description
The CLV69x bar code scanner offers ex-
cellent reading performance, high-speed
processing and a high level of reading
accuracy. The auto focus function is
based on built-in distance measurement
technology and makes it possible to
have height-independent code read-
ing within the reading eld. Simple and
user-friendly conguration is guaranteed
using the standard SOPAS ET operat-
ing system from SICK. Due to built-in
SMART+ code reconstruction technolo-
gy, the CLV69x can read heavily contami-
nated or partially damaged bar codes
as well as those with a high angle of tilt.
With its built-in tracking, the CLV69x can
be used without any additional system
controller to handle standard applica-
tions. The innovative connectivity with
built-in parameter storage not only en-
ables fast, simple scanner replacement,
but also easy integration into a variety of
applications.
At a glance
• Advanced SMART+ code reconstruc-
tion technology
• New and exible cloning plug technol-
ogy
• CAN, Ethernet and serial communica-
tions available on board (dependent
on cloning plug variant)
• Large depth of eld due to real-time
auto focus
• Consistent, user-friendly “SOPAS ET”
software
• Built-in tracking without the use of an
additional system controller
• Flexible sorting, ltering, and logical
functions
• Integrated LED bar graph with push-
buttons
Your benets
• Higher reading rate on damaged,
heavily contaminated and par-
tially damaged bar codes using the
SMART+ algorithm
• Increased processing allows for fast-
er and more accurate performance
on demanding applications
• Fewer costs since no additional Eth-
ernet gateway is required when using
the Ethernet clone plug
• Time savings during commissioning
thanks to integrated buttons and bar
graph
• Increased scanner intelligence en-
ables sophisticated conguration of
logical operations, reducing the con-
trol system programming effort. Data
is delivered in the desired format
• Cost savings since standard applica-
tions can be implemented without an
additional system controller due to
integrated tracking

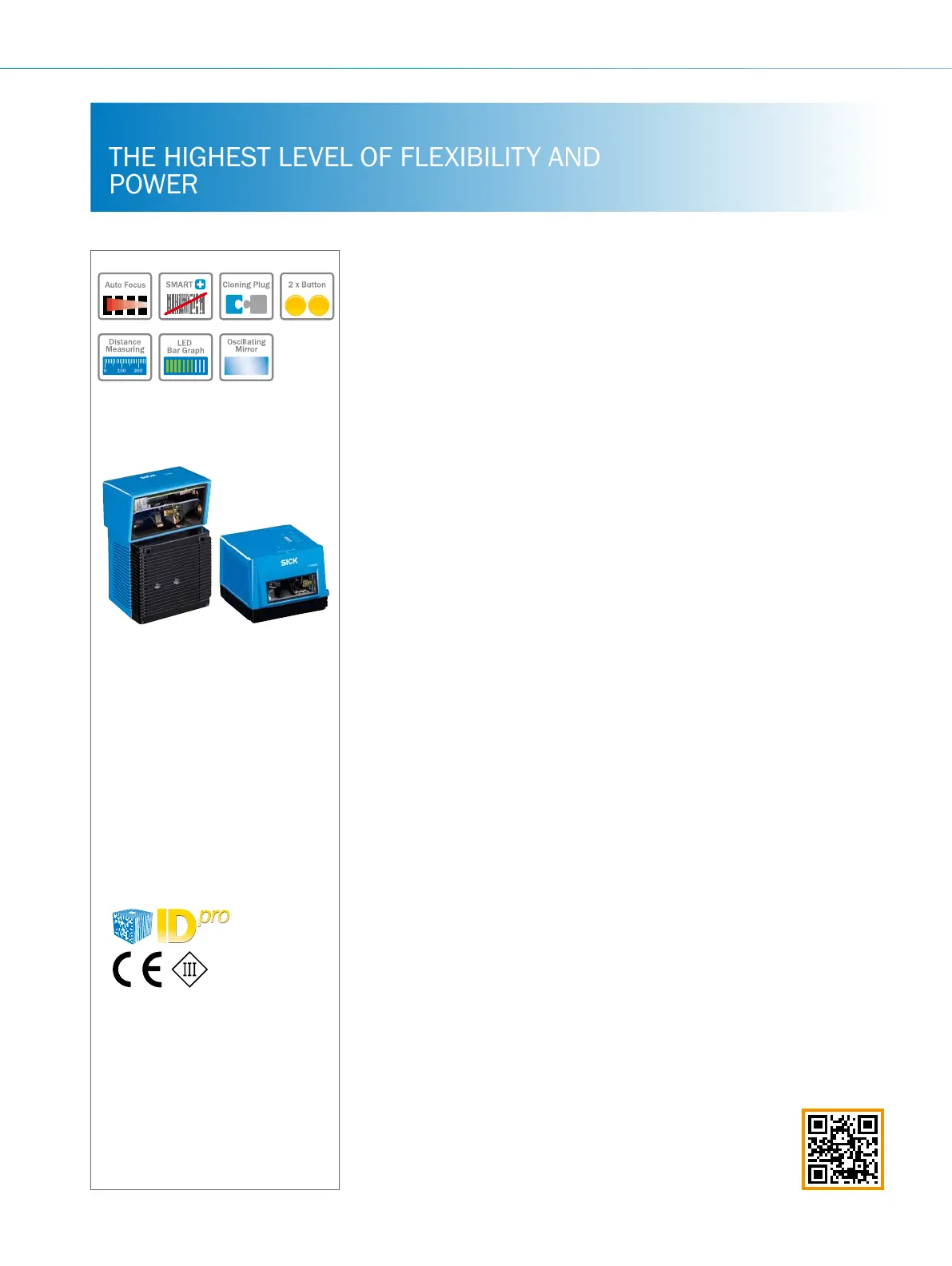

CLV69x
The highesT level of flexibiliTy and
power
Additional information
Detailed technical data . . . . . . . . . . 59
Ordering information . . . . . . . . . . . . 60
Dimensional drawings . . . . . . . . . . . .61
Reading eld diagrams . . . . . . . . . . 62
Recommended accessories . . . . . . 63
Cloning plugs................... 65
- www.mysick.com/en/CLV69x
For more information, just enter the link or scan the QR code and get direct access to technical
data, CAD design models, operating instructions, software, application examples and much
more.
