BAR CODE SCANNERS CLV69x

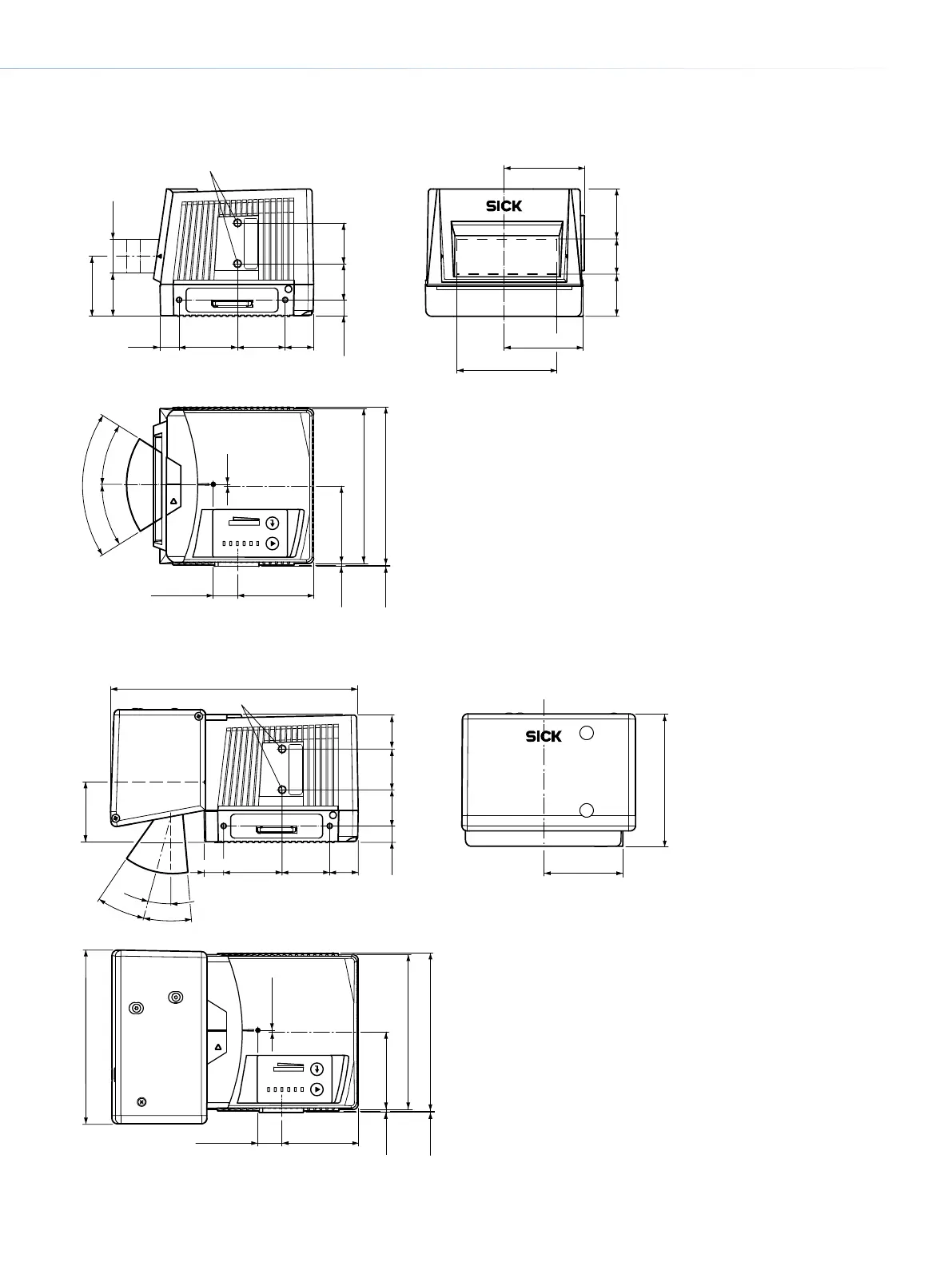

Dimensional drawings (Dimensions in mm (inch))
CLV69x, front
59 ( 2.32)
58 (2.28)
73.5 (2.89)
37
(1.46)
30
(1.18)
26.7
(1.05)
12
(.47)
26
(1.02)
31
(1.22)
1
44.2 (1.74)
24.5 (.96)
32 (1.26)
14
(.55)
43
(1.69)
35
(1.38)
21
(.83)
1.3 (.05)
Ready Read Diagn
Ressult Teach-in
Laser Auto-Setup
Data Adjusting
CAN User defined
LINK TX
[%]
100
116 (4.57)
1 (.04)
2 (.08)
57 (2.24)
56 (2.2)17.7 (.07)
64.5°
114 (4.49)
32.5°
32°
max. Einschrasubtiefe 7 mm max. screw-in depth 7 mm
1 Blind hole thread M6, 7 mm deep (2 x), for mounting
CLV69x, oscillating mirror
1
20°
20°
15°
Ready Read Diagn
Ressult Teach-in
Laser Auto-Setup
Data Adjusting
CAN User defined
LINK TX
[%]
100
58 (2.28)
181.8 (7.16)
97 (3.82)
30
(1.18)
23,5
(1.0)
26.7
(1.05)
12
(.47)
44.2 (1.74)
13
(.51)
43
(1.69)
35
(1.38)
21
(.83)
1.3 (.05)
116 (4.57)
1
(.04)
2 (.08)
57 (2.24)
128
(5.04)
56 (2.2)
17.7 (.07)
114 (4.49)
max. Einschrasubtiefe 7 mm max. screw-in depth 7 mm
1 Blind hole thread M6, 7 mm deep (2 x), for mounting
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
