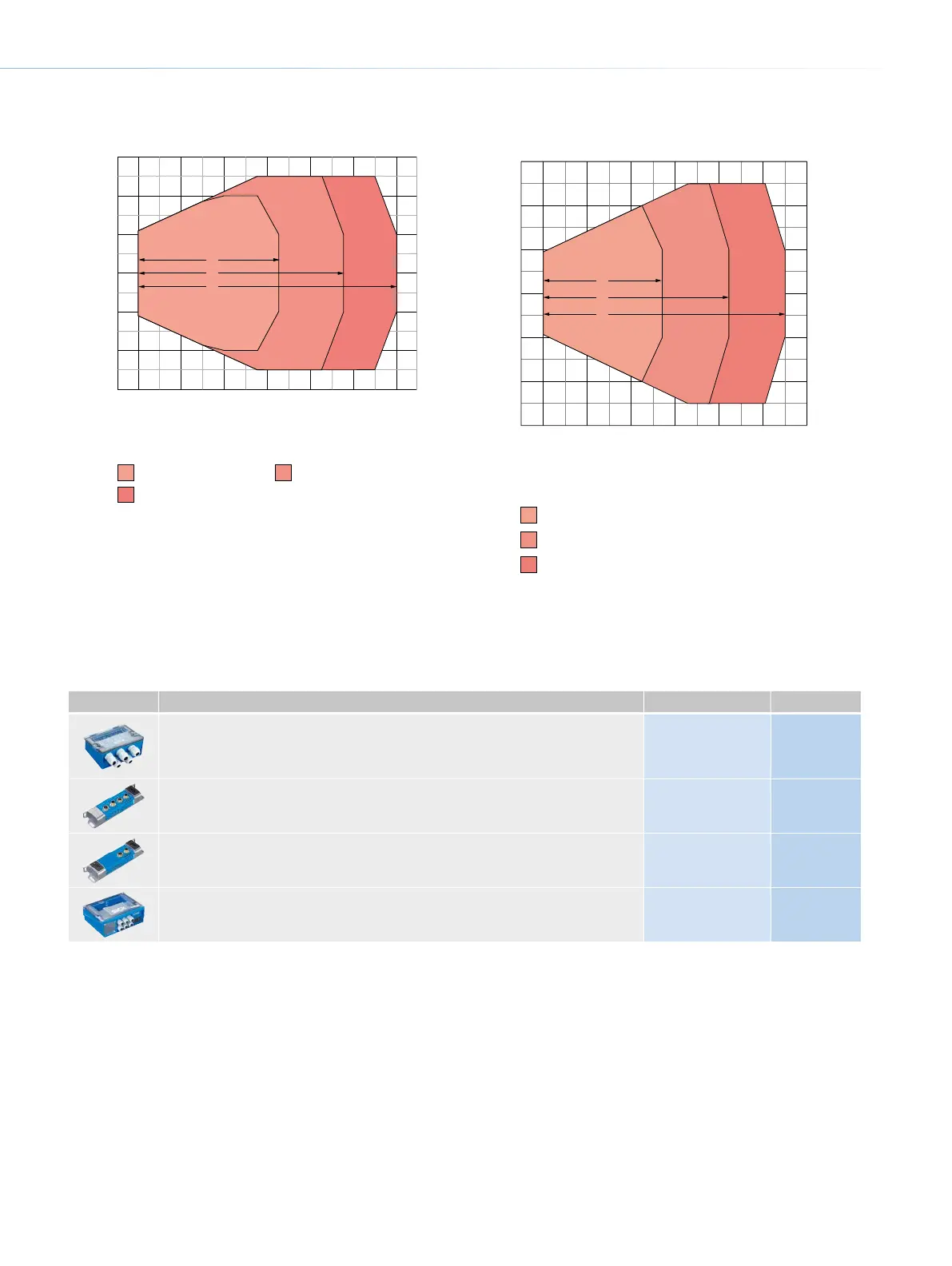

BAR CODE SCANNERS CLV69x
CLV692-0/1 High Density, front
Reading field height in mm (inch)
–600
(–23.62)
–400
(–15.75)
–200
(–7.87)
0
200
(7.87)
400
(15.75)
600
(23.62)
1,600
(62.99)
1,400
(55.12)
1,200
(47.24)
1,000
(39.37)
800
(31.5)
600
(23.62)
400
(15.75)
Reading distance in mm (inch
)
Resolution
a: 0.20 mm (7.9 mil)
c: 0.30 mm (11.8 mil)
b: 0.25 mm (9.8 mil)
a
b
c
CLV692-0/1 High Density, oscillating mirror
0
400
(15.75)
600
(23.62)
800
(31.5)
1,000
(39.37)
1,200
(47.24)
1,400
(55.12)
1,600
(62.99)
200
(7.87)
–200
(–7.87)
–400
(–15.75)
–600
(–23.62)
400
(15.75)
600
(23.62)
Reading field height in mm (inch)
Resolution
a: 0.20 mm
(7.9 mil)
b: 0.25 mm (9.8 mil)
c: 0.30 mm (11.8 mil)
a
b
c
Reading distance in mm (inch)
Recommended accessories
Connection systems
Modules
Brief description Type Part no.
Connection device basic for connecting one sensor with 2 A fuse, 5 cable glands and
RS-232 interface to sensor via M12, 17-pin female connector, all outputs available on
screw/spring-loaded terminals, including trigger unit functionality for external illumina-
tion of LECTOR
®
65x
CDB650-204 1064114
Fieldbus proxy/gateway for connecting identication sensors to PROFIBUS-DP net-
works (PROFIBUS interface: 2 x M12, male connector/female connector, 5-pin)
CDF600-2100 1058965
Fieldbus proxy/gateway for connecting identication sensors to PROFIBUS-DP net-
works (PROFIBUS interface: 1 x D-Sub, female connector, 9-pin)
CDF600-2103 1058966
Modular connection module for one sensor, 2 A fuse CDM420-0006 1058634
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
