SICK CLV6 Series User Manual

CLV6 SERIES | SICK 8016144/2013-09-19
Subject to change without notice
64

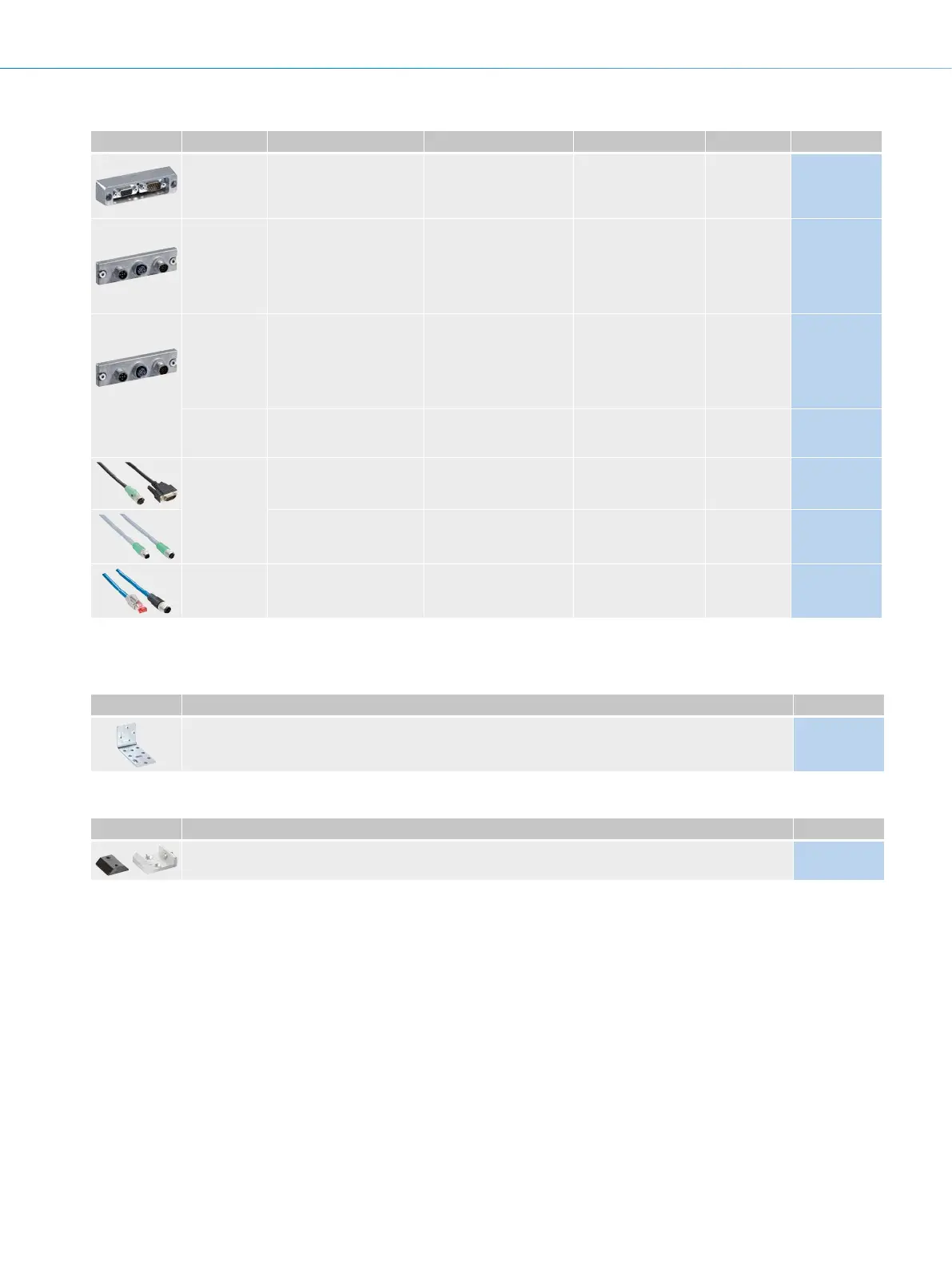

CLV69x BAR CODE SCANNERS
Plug connectors and cables
Signal type Connection type head A Connection type head B Cable Cable length Part no.
–
Male connector,
D-Sub, 15-pin
female connector,
D-Sub, 15-pin
–
Required for connect-
ing a CLV69x (serial)
– 2062450
–
Male connector,
M12, 17-pin
male connector,
M12, 5-pin
female connector,
M12, 4-pin
–
Required for connect-
ing a CLV69x (Ether-
net/stand-alone)
– 2062452
Illustration may
differ
–
Female connector (AUX),
M12, 5-pin
female connector,
M12, 5-pin
male connector,
M12, 5-pin
–
Required for connect-
ing a CLV69x (CAN)
– 2062453
–
Male connector, male con-
nector, female connector
(AUX), M12, 5-pin
–
Required for connect-
ing a CLV69x (CAN
redundant)
– 2062454
Power, serial,
CAN, digital
I/Os
Female connector, M12,
17-pin, straight
Male connector, D-Sub-
HD, 15-pin, straight
To connection module
CDx (except CDB650)
2 m 2055419
Male connector, M12, 17-
pin, straight, A-coded
Female connector, M12,
17-pin, straight, A-coded
To connection module
CDB650, suitable for
2 A, Ecolab
2 m 6052286
Ethernet
Male connector, M12,
4-pin, straight, D-coded
Male connector, RJ45,
8-pin, straight
– 2 m 6034414
Mounting systems
Mounting brackets/plates
Brief description Part no.
Simple mounting bracket 2013824
Terminal and alignment brackets
Brief description Part no.
Quick-action lock system 2016110
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
