CLV6 SERIES | SICK 8016144/2013-09-19
Subject to change without notice
48
CLV64x BAR CODE SCANNERS

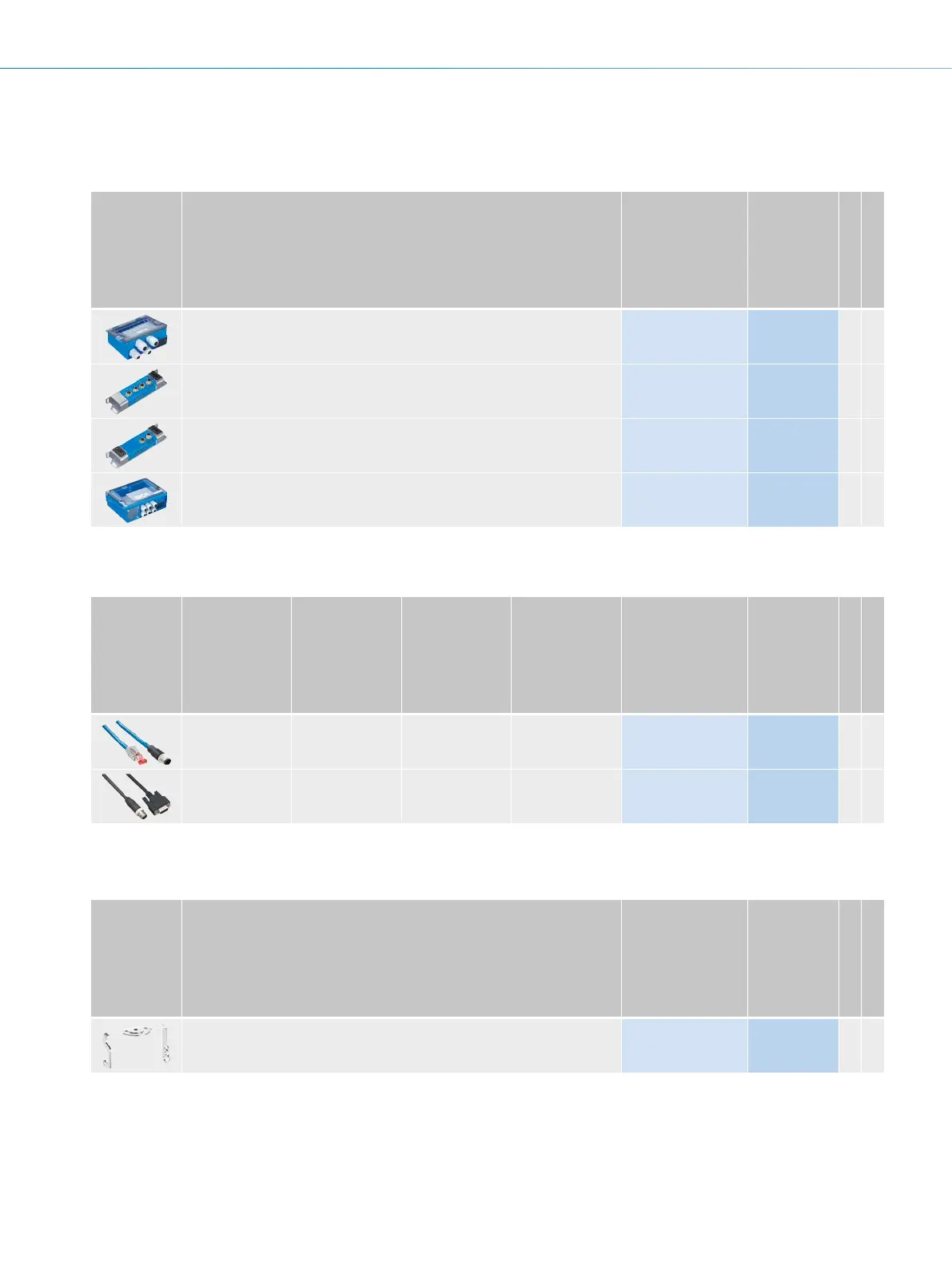

Recommended accessories
Connection systems
Modules
Brief description Type Part no.
CLV63x-65x Cable CLV63x-65x Ethernet
Small connection module for one sensor, 4 cable glands, base for CMC600 CDB620-001 1042256
O O
Fieldbus proxy/gateway for connecting identication sensors to PROFIBUS-DP
networks (PROFIBUS interface: 2 x M12, male connector/female connector,
5-pin)
CDF600-2100 1058965
O O
Fieldbus proxy/gateway for connecting identication sensors to PROFIBUS-DP
networks (PROFIBUS interface: 1 x D-Sub, female connector, 9-pin)
CDF600-2103 1058966
O O
Modular connection module for one sensor CDM420-0001 1025362
O O
Plug connectors and cables
• Cable length: 2 m
Signal type
Connection type
head A
Connection type
head B Cable Type Part no.
CLV63x-65x Cable CLV63x-65x Ethernet
Ethernet
Male connec-
tor, M12, 4-pin,
straight, D-coded
Male connec-
tor, RJ45, 8-pin,
straight
– SSL-2J04-G02ME 6034414 –
O
Power, serial,
CAN, digital I/Os
Female connec-
tor, M12, 12-pin,
straight
Male connector,
D-Sub-HD, 15-pin,
straight
To connection
module CDx (ex-
cept CDB650)
Verbindungsleitung
(Stecker-Dose)
2041834 –
O
Mounting systems
Mounting brackets/plates
Brief description Type Part no.
CLV63x-65x Cable CLV63x-65x Ethernet
Hanger-shaped mounting bracket Mounting bracket 2042800
O O
- For additional accessories, please see page 66
