SICK CLV6 Series User Manual

CLV6 SERIES | SICK 8016144/2013-09-19
Subject to change without notice

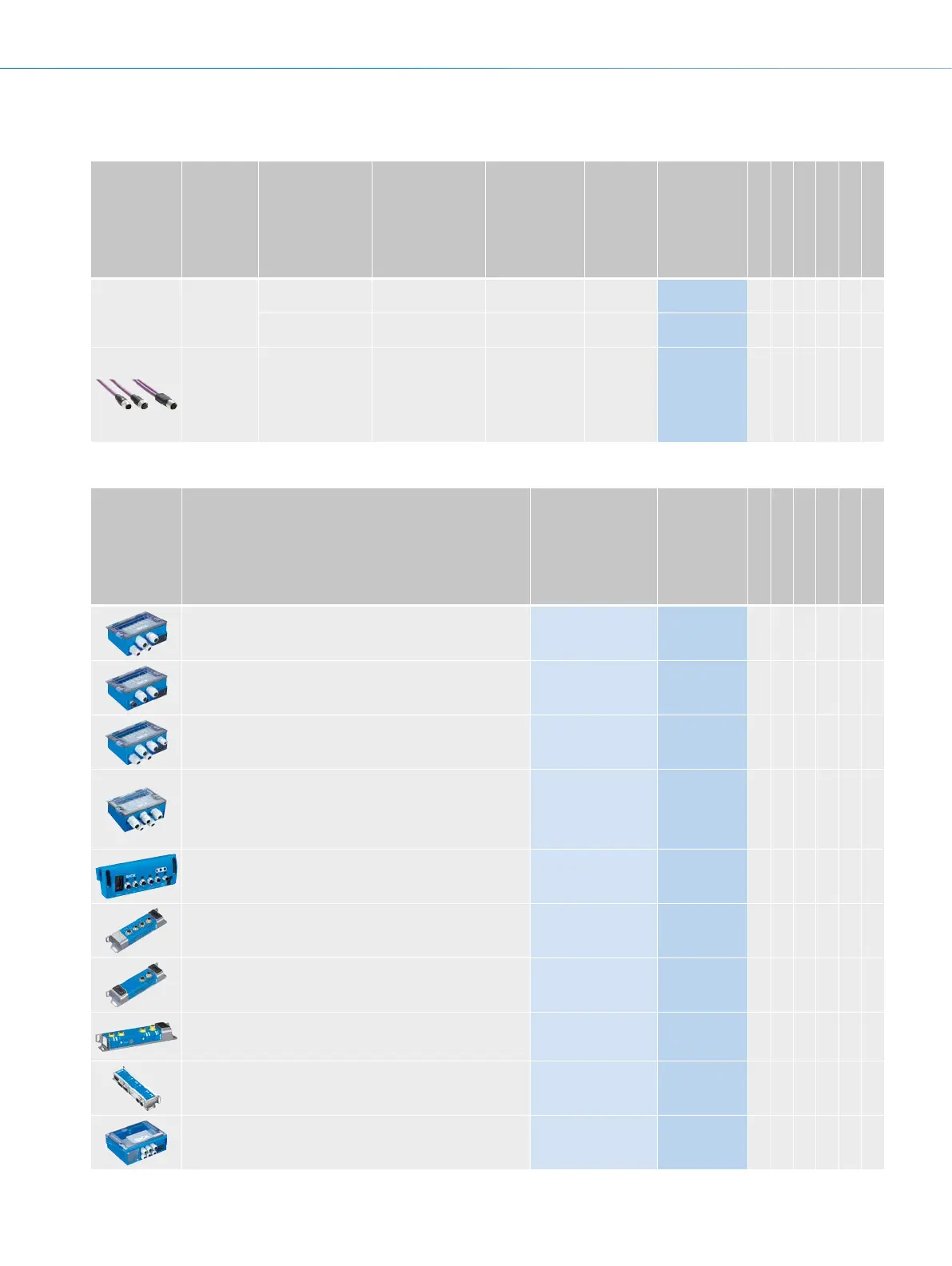

CLV6 series ACCESSORIES
66
Connection systems
Adapters/distributors
Signal type
Connection type
head A
Connection type
head B Cable
Cable
length Part no.
CLV61x Cable CLV62x Cable CLV62x Ethernet CLV63x-65x Cable CLV63x-65x Ethernet CLV69x
–
Male connector, D-
Sub-HD, 15-pin
Female connector,
D-Sub-HD, 15-pin
Adapter for
CLV41x/CLV62x
– 2072514 –
O O
– – –
Plug, D-Sub-HD,
15-pin
Female connector,
D-Sub-HD, 15-pin
Adapter for
CLV41x/CLV61x
– 2068506
O
– – – – –
CAN, Power
Female connec-
tor, M12, 5-pin,
straight, A-coded
Female connec-
tor, M12, 5-pin,
straight, A-coded
Male connec-
tor, M12, 5-pin,
straight, A-coded
Y-CAN cable 0.5 m 6027647 – – – – –
O
Modules
Brief description Type Part no.
CLV61x Cable CLV62x Cable CLV62x Ethernet CLV63x-65x Cable CLV63x-65x Ethernet CLV69x
Small connection module for one sensor, 4 cable glands,
base for CMC600
CDB620-001 1042256
O O O O O
–
Small connection module for one sensor, 2 cable glands, 2 x
M12 connector/socket for CAN, base for CMC600
CDB620-101 1042257
O O O O O
–
Small connection module for a sensor, 5 cable glands, socket
for CMC cloning module
CDB620-201 1042258
O O O O O
–
Connection device basic for connecting one sensor with 2 A
fuse, 5 cable glands and RS-232 interface to sensor via M12,
17-pin female connector, all outputs available on screw/
spring-loaded terminals, including trigger unit functionality for
external illumination of LECTOR
®
65x
CDB650-204 1064114 – – – – –
O
Fieldbus proxy/gateway to connect to a EtherCAT network CDF600-0300 1052291
O O O O O
–
Fieldbus proxy/gateway for connecting identication sensors
to PROFIBUS-DP networks (PROFIBUS interface: 2 x M12,
plug/socket, 5-pin)
CDF600-2100 1058965
O O O O O O
Fieldbus proxy/gateway for connecting identication sensors
to PROFIBUS-DP networks (PROFIBUS interface: 1 x D-Sub,
socket, 9-pin)
CDF600-2103 1058966
O O O O O O
Fieldbus proxy/gateway for connecting one identication
sensor to PROFINET-IO networks (interface 2 x M12, socket/
socket, 4-pin)
CDF600-2200 1062460
O O O O O O
Fieldbus proxy/gateway for connecting one identication sen-
sor to PROFINET-IO networks (interface 2 x RJ45 AIDA, female
connector/female connector, 4-pin)
CDF600-2201 1063390
O O O O O O
Modular connection module for one sensor CDM420-0001 1025362
O O O O O
–
CLV6 series
ACCESSORIES
CLV6 series
Subject to change without notice
.
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
