SICK DT35S User Manual

12 Technical data
NOTE
Via the product page, you can download, save and print the associated online data
sheet with technical data, dimensional drawing and connection diagrams for your prod‐
uct.
which can be accessed via the SICK Product IDpid.sick.com/{P/N}
{P/N} corresponds to the part number of the product (see type label).
Please note: This documentation may contain further technical data.

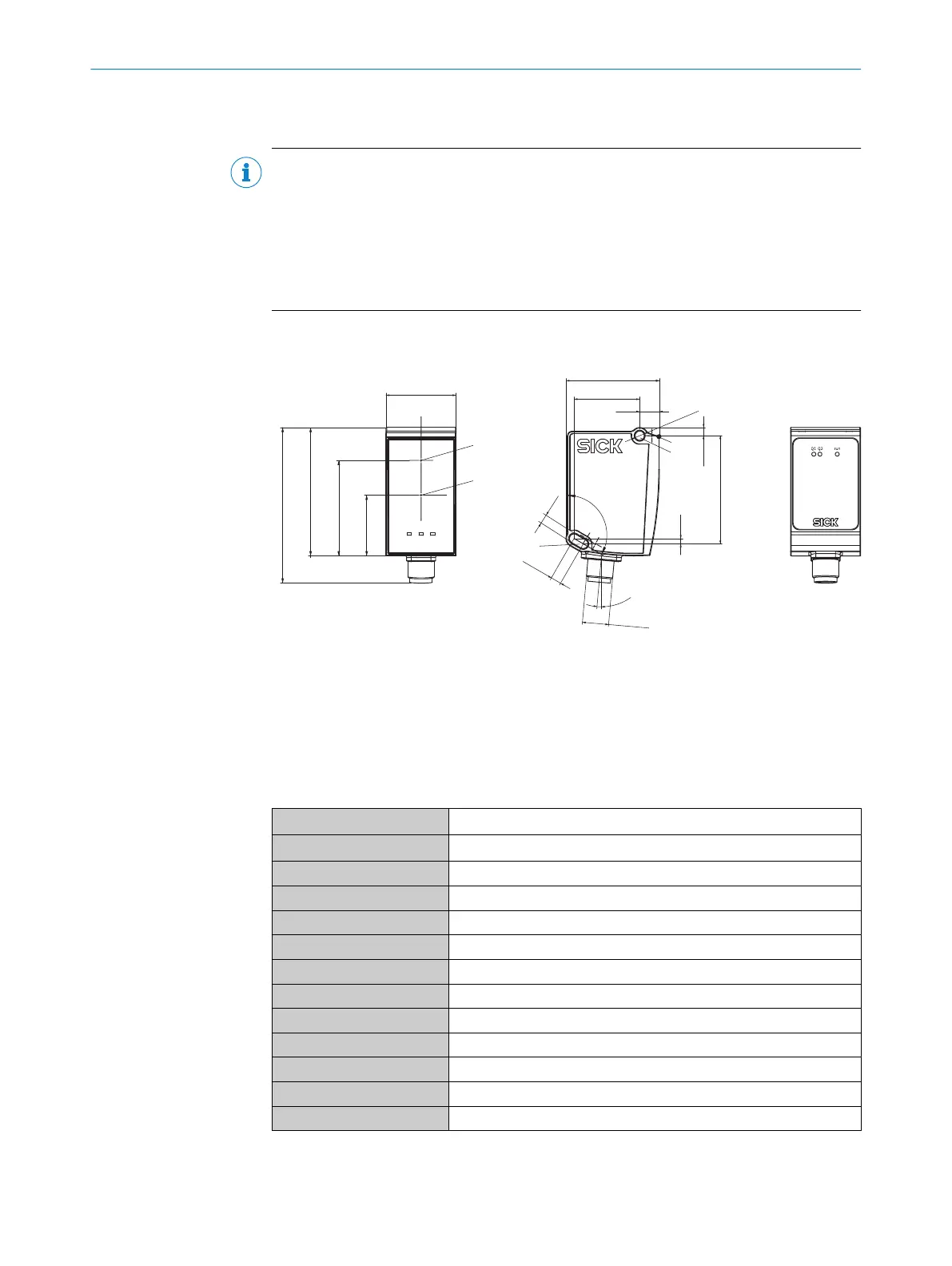

12.1 Dimensions
1
2
4
Ø4.2
(0.17)
Ø4.2
(0.17)
12
0
°
M
12
x1
5°
3
4
2.4
(0.09)
42.7 (1.68)
30 (1.18)
71.1 (2.80)
58.67 (2.31)
43.62 (1.72)
27.75 (1.02)
32 (1.26)
49.4 (1.94)
4.86
(0.19)
3.75
(0.15)
9
(0.35)
Figure 23: Dx35S dimensions, dimensions in mm (inch), decimal separator: point
1
Optical axis, sender
2
Optical axis, receiver
3
Reference surface (corresponds to distance 0mm)
4
M4 fixing hole
12.2 Mechanics/Electronics
Supply voltage (V
s
) 19.2VDC ... 26.4VDC
1)
Residual ripple ≤ 5V
pp
2)
Power consumption ≤ 1.7W
3)
Initialization time ≤ 500ms
Warm-up time ≤ 20min
Housingmaterial Plastic (ABS and PC)
Viewing window material Plastic (PMMA)
Connection type Male connector, M12, 5-pin
Display LEDs
Enclosure rating IP65 / IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Protection class III (IEC 61140:2016-11)
Electrical safety According to IEC 61010-1 (ed.3)
Weight 65g
12 TECHNICAL DATA
58
O P E R A T I N G I N S T R U C T I O N S | DT35S 8027663//2022-08-04 | SICK
Subject to change without notice

SICK DT35S Specifications

General

Brand	SICK
Model	DT35S
Category	Safety Equipment
Language	English
