4 INSTALLATION

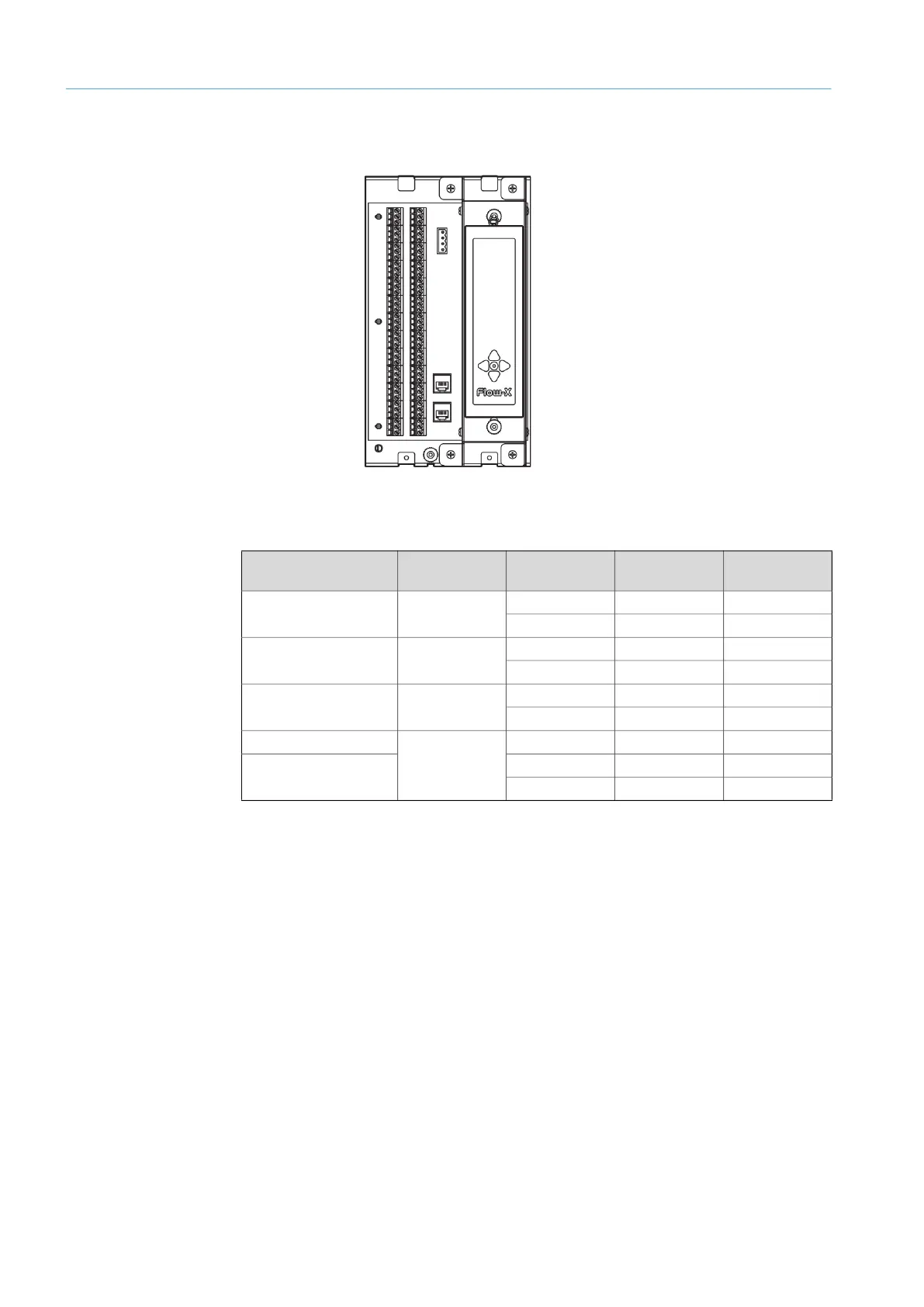

Fig. 20: Connection ports (Flow-X/S)
Connected
device
Terminal ID Plug connection Pin
Serial Com Port 1 Gas flow meter
TRx+ X1B 32
TRx- X1B 33
Analog/HART Input 1
Pressure
transmitter
+ X1B 11
- X1B 12
Analog/HART Input 2
Temperature
transmitter
+ X1B 13
- X1B 14
24 V out
Pressure or
temperature
transmitter
X1A 1
0 V common
X1A 2
X1A 4
Table 7: 37-pin connection port (Flow-X/S)
