SICK GLS6 - Product Characteristics; Device View

3.3 Product characteristics
3.3.1 Device view
8
6
4
Ready Read Diagn Result TeachIn LED Auto-Setup Data Autofocus LNK TX Userdefined
300 200 100
70
40
100 0
[mm]
[%]
2
3
a
7
9
35.6 (1.40)
6 (0.24)
10 (0.39)
5
1
26.5
(1.04)
71 (2.80)
17.44
(0.69)
4.8 (0.19)
21.5
(0.85)
26
(1.02)
43 (1.69)
Ø 10
(0.39)
1
á
à
â
ß

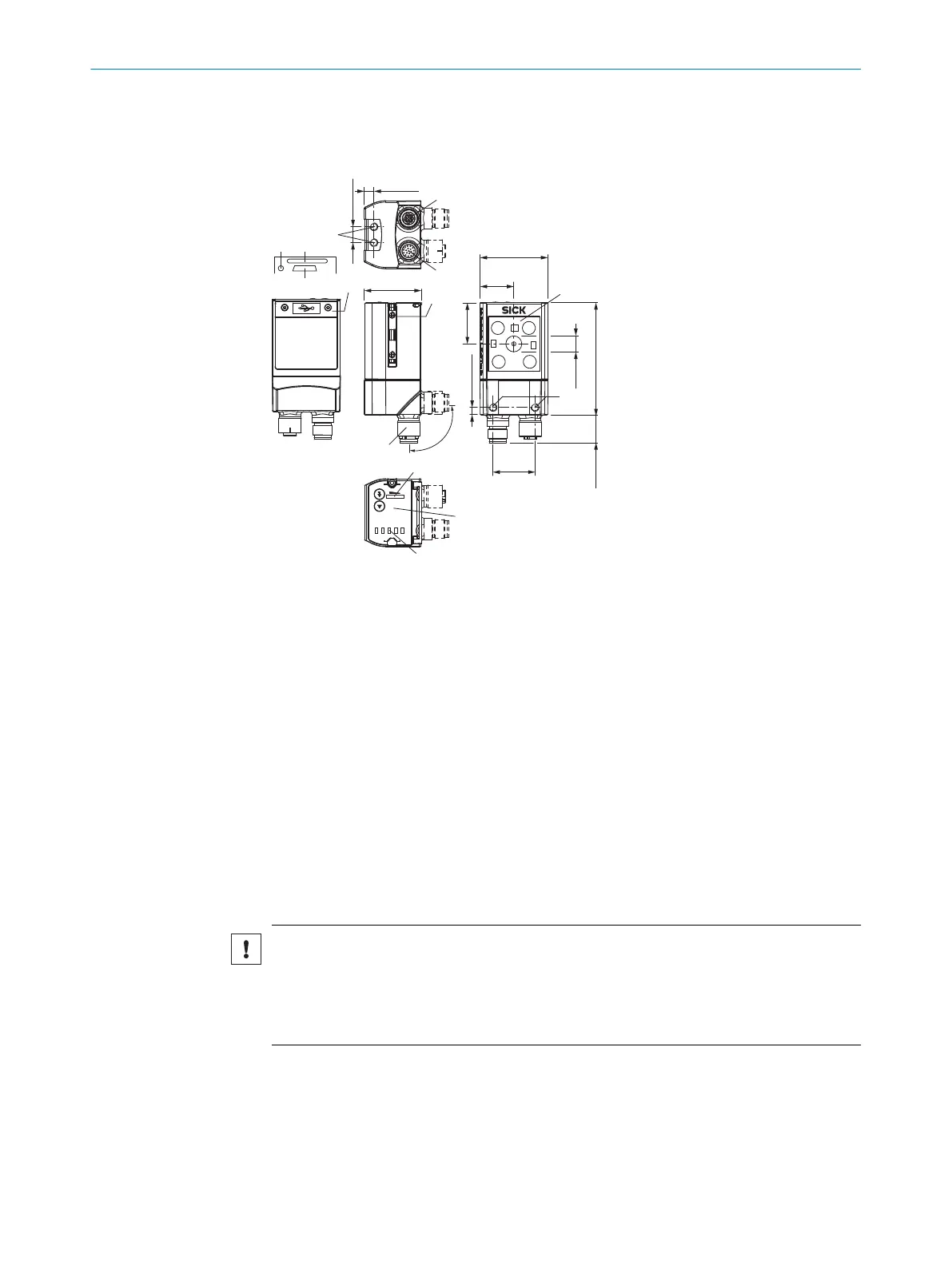

Figure 1: Structure and device dimensions, unit: mm (inch), decimal separator: period
1
M5 tapped blind hole, 5 mm deep (4 x), for mounting the device
2
“Ethernet” connection (female connector, M12, 4-pin, D-coded)
3
“Power/Serial Data/CAN/I/O” connection (male connector, M12, 17-pin, A-coded)
4
Sliding nut M5, 5.5 mm deep (2 x), for an alternative method of mounting the device
5
Viewing window with LEDs (4 x), integrated illumination unit
6
Swivel connector (swivel range 180°)
7
Bar graph display
8
Beeper (under housing cover)
9
RGB LED (5 x), status indicator (2 levels)
ß
Cover (flap) with fixing screw (Torx TX6, captive), 2 x
à
“USB” connection (female connector, Micro-B type, 5-pin), for temporary use only as ser‐
vice interface
á
Slot for microSD memory card
â
LED (1 x), status indicator for microSD memory card
NOTICE
Damage to the swivel connector from over-rotation!
•
The swivel connector may be moved up to a maximum of 180° from end point to
end point. Do not exceed the respective limit position.
•
Carry out the rotational movement slowly.
