6 Electrical installation
6.1 Safety
6.1.1 Conditions for specified enclosure rating
To ensure compliance with the specified IP65 enclosure rating of the device during
operation, the following requirements must be met: If these requirements are not met,
the device does not fulfill any specified enclosure rating.
•
The cables plugged into the two electrical M12 connections must be screwed on
tightly.
•
Any electrical M12 connections (Ethernet connection) that are not being used
must be sealed with tightly-fastened protective plugs (as in the delivery condition).
•
The black cover (flap) on the rear of the device must be flush with the device and
screwed tight.
NOTICE
Operate the device with the black cover open only for a short time for the following
tasks as needed:
•
Inserting or removing the optional memory card
•
Temporary use of the USB interface as a service interface
During this time, protect the device against moisture and dust.
6.1.2 Note on the swivel connector
NOTICE
Damage to the connector from over-rotation!
The swivel connector has two opposite end positions.
■
Do not rotate the connector from either of the two end positions by more than
180° in the opposite direction. Do not exceed the respective limit position.
■
Carry out the rotational movement slowly.
A B
B A
Maximal
180°!
3
Maximal
180°!
3
End position 1 1 End position 2 2

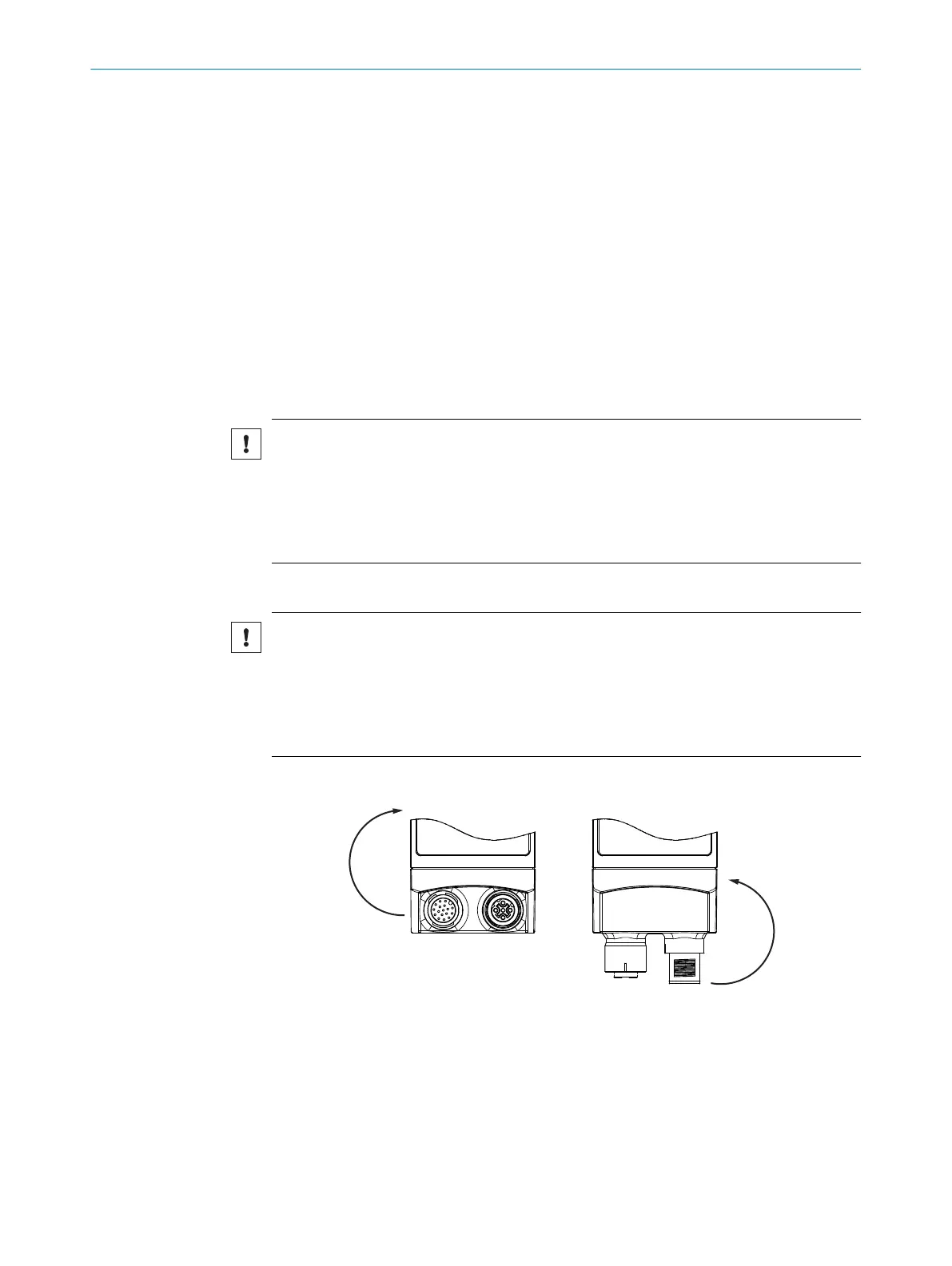

Figure 12: Rear view: end positions of the swivel connector
1
End position 1
2
End position 2
3
Maximum 180°
ELECTRICAL INSTALLATION 6
8024289//2019-08-15 | SICK O P E R A T I N G I N S T R U C T I O N S | GLS6
27
Subject to change without notice
