Not recommended:
γ < 0° or γ > 0°
2
γ
γ = 0°
1
Recommended:
γ = 0°

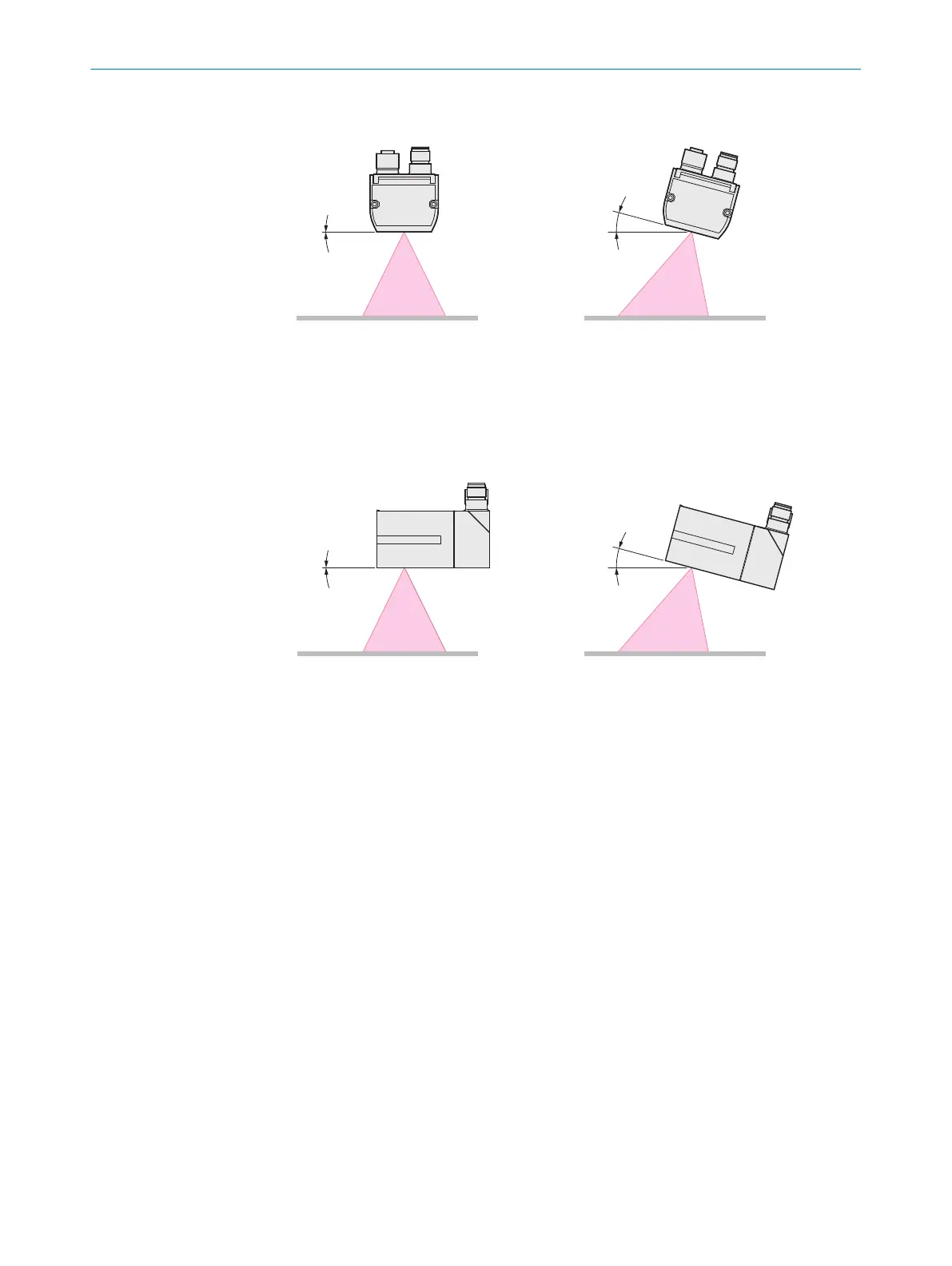

Figure 9: Mounting angle γ
1
Recommended: γ = 0°
2
Not recommended: γ < 0° or γ > 0°
Setting beta (β) mounting angle:
1
Recommended:
β = 0°
Not recommended:
β < 0° or β > 0°
2
β
β = 0°
Figure 10: Mounting angle β
1
Recommended: β = 0°
2
Not recommended: β < 0° or β > 0°
Setting alpha (α) mounting angle:
Only relevant for use of individual 2D codes (no multicode labels). Adjust the alpha (α)
angle to change the coordinate system of the field of view, see "Configuring the device
manually", page 37. The Alpha (α) parameter is set to 0° by default.
