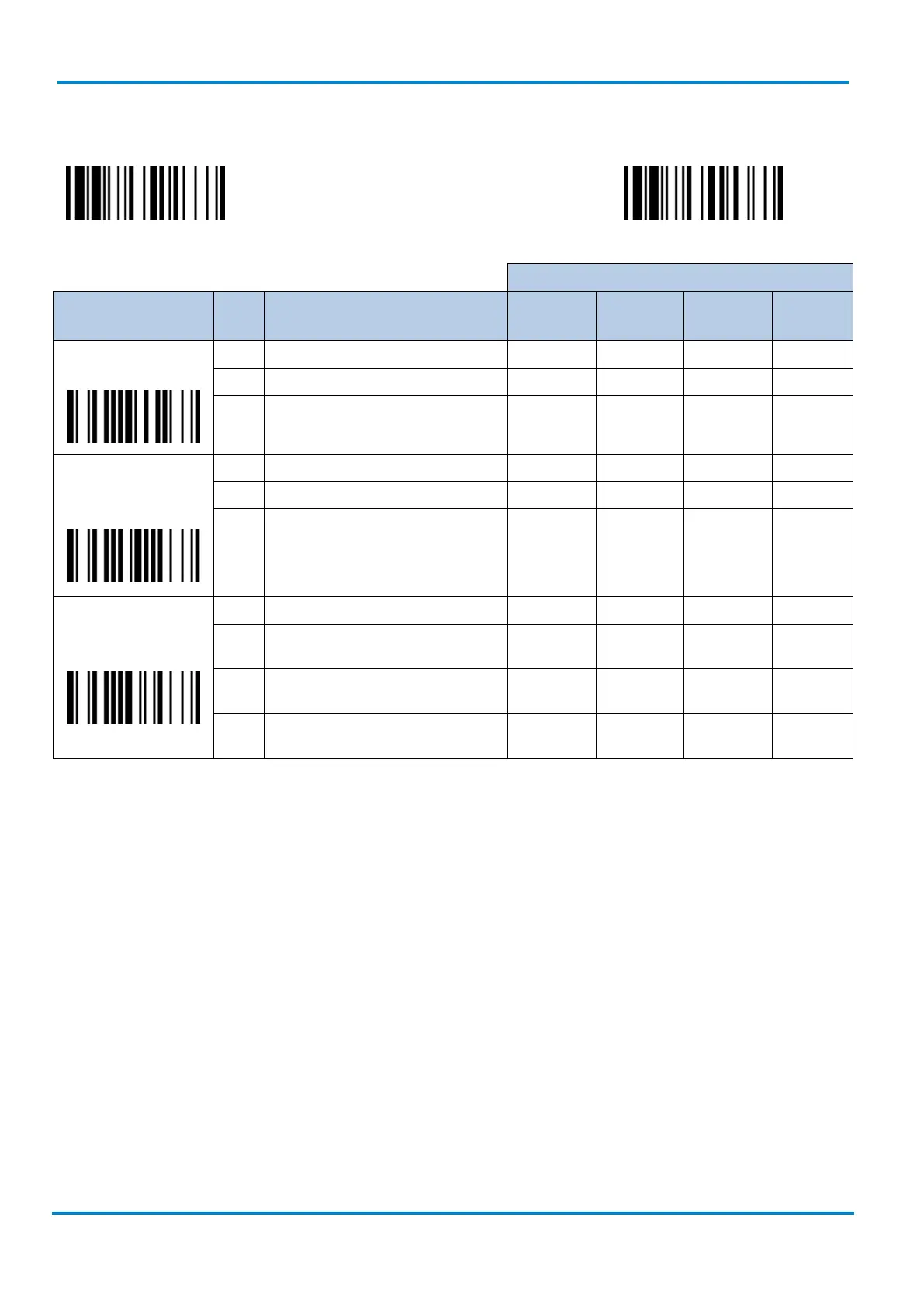

3.9.11 1D Barcode Reading Direction
PROGRAM
F_DEFAULT
Option Code
Family Code
Selection
P.C. Parameter Selection
1D Corded
(IDM1x0)
2D Corded
(IDM2x0)
1D BT
(IDM1x1)
2D BT
(IDM2x1)
1D Barcode Forward-
reading Indication
SS None  0 - - -
SS “S” 1 - - -
MS User defined character
(1 character)
2, [00-7F] - - -
1D Barcode
Backward-reading
Indication
SS None  0 - - -
SS “X” 1 - - -
MS User defined character
(1 character)
2, [00-7F] - - -
1D Barcode Direction
Indication
Transmission
SS Disable  0 - - -
SS Enable prefix direction mark
transmission
1 - - -
SS Enable suffix direction mark
transmission
2 - - -
SS Enable both prefix and suffix
direction mark transmission
3 - - -
